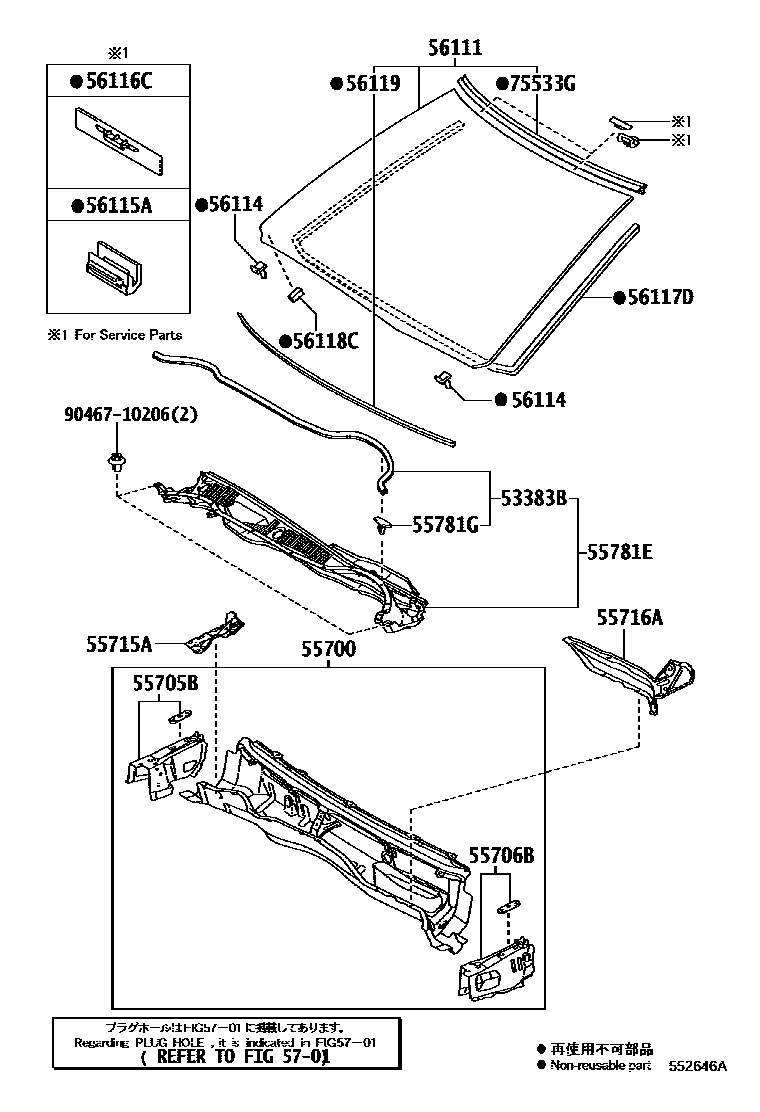

Toyota CROWN — COWL PANEL & WINDSHIELD GLASS

53383BSEAL, HOOD TO COWL TOP

main53383-30240iGRS202201009-201212

55700PANEL ASSY, FRONT

main55700-30A10iGRS202201009-201212

55705BPANEL SUB-ASSY, COWL TOP SIDE, RH

main55705-30902iGRS202201009-201212

55706BPANEL SUB-ASSY, COWL TOP SIDE, LH

main55706-30902iGRS202201009-201212

55715ABRACE, COWL TOP TO APRON, RH

main55715-30140iGRS202201009-201212

55716ABRACE, COWL TOP TO APRON, LH

main55716-30140iGRS202201009-201212

55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-30141iGRS202201009-201212

55781GCLIP, COWL TOP VENTILATOR LOUVER

main90467-08108×12iGRS202201009-201212

56111GLASS, WINDSHIELD

main56101-30919iGRS202201009-201110

*LAM,T=5.36,GREEN

main56101-30N50iGRS202201110-201212

*LAM,T=5.36,GREEN

56114RETAINER, WINDSHIELD GLASS

main56114-22050×2iGRS202201009-201212

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-30110iGRS202201009-201212

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050iGRS202201009-201212

56117DDAM, WINDSHIELD GLASS ADHESIVE

main56117-30360iGRS202201009-201212

L=2894

sub56117-64010

56118CRETAINER, WINDSHIELD GLASS, NO.2

main56118-30100iGRS202201009-201212

L=25

sub56118-72010

56119SEAL, WINDSHIELD GLASS

main56119-30010iGRS202201009-201212

5701

75533GMOULDING, WINDSHIELD, OUTSIDE

main75531-30380iGRS202201009-201212

9046710206

main90467-10206

18 parts on this diagram · 1 diagram in section
