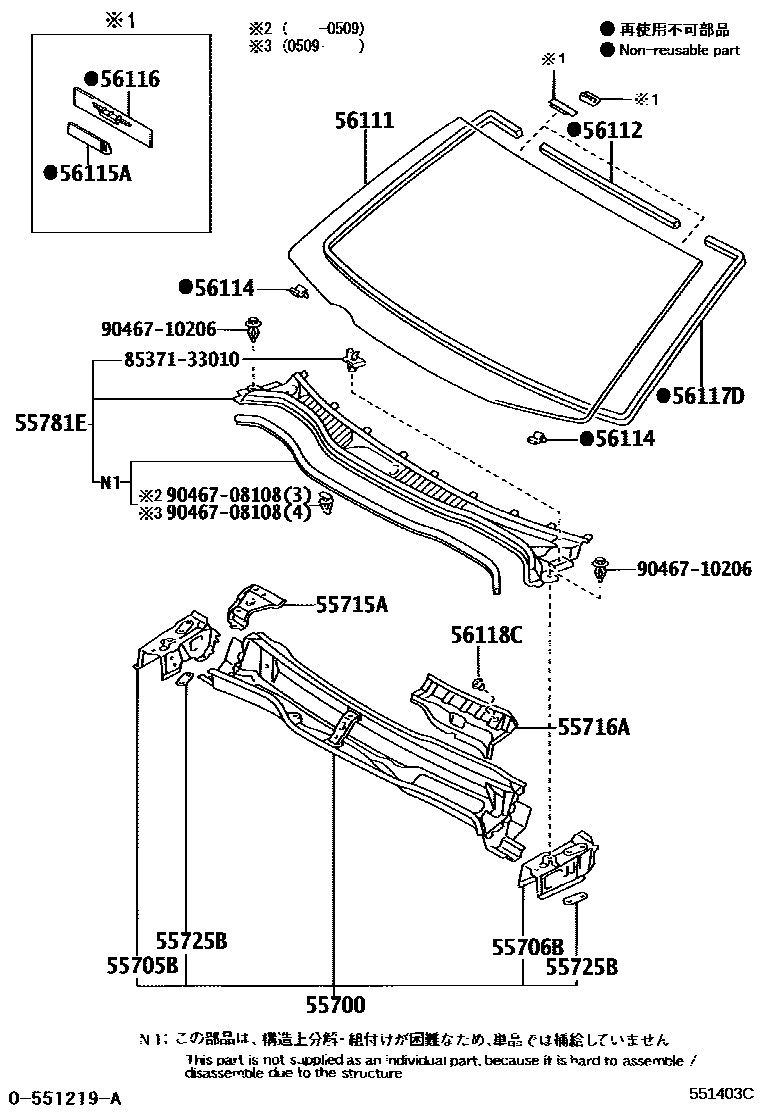

Toyota CROWN — COWL PANEL & WINDSHIELD GLASS

55700PANEL ASSY, FRONT

main55700-30A00iGRS182200411-200509

sub55701-30250

main55700-30A50iGRS182200509-200802

55705BPANEL SUB-ASSY, COWL TOP SIDE, RH

main55705-30070iGRS182200411-200509

55706BPANEL SUB-ASSY, COWL TOP SIDE, LH

main55706-30070iGRS182200411-200509

55715ABRACE, COWL TOP TO APRON, RH

main55715-30110iGRS182200411-200509

55716ABRACE, COWL TOP TO APRON, LH

main55716-30130iGRS182200411-200503

main55716-30131iGRS182200503-200509

55725BREINFORCEMENT, HOOD HINGE MOUNTING

main55725-51020×2iGRS182200411-200509

55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-30091iGRS182200411-200509

main55708-30130iGRS182200509-200607

main55708-30131iGRS182200608-200802

56111GLASS, WINDSHIELD

main56101-30770iGRS182200411-200509

*LAM,T=5.36,GREEN

56112DAM, WINDOW GLASS ADHESIVE, NO.2

main56112-30070iGRS182200411-200509

sub56117-52040

56114RETAINER, WINDSHIELD GLASS

main56114-50020×2iGRS182200411-200509

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-30110×2iGRS182200411-200509

56116SPACER, WINDSHIELD GLASS

main56116-22050×2iGRS182200411-200509

56117DDAM, WINDSHIELD GLASS ADHESIVE

main56117-30330iGRS182200411-200509

L=3309

sub56117-44030

56118CRETAINER, WINDSHIELD GLASS, NO.2

main56118-30080iGRS182200411-200509

8537133010HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85371-33010

9046708108

main90467-08108

9046710206

main90467-10206

17 parts on this diagram · 1 diagram in section
