Toyota CROWN — COWL PANEL & WINDSHIELD GLASS

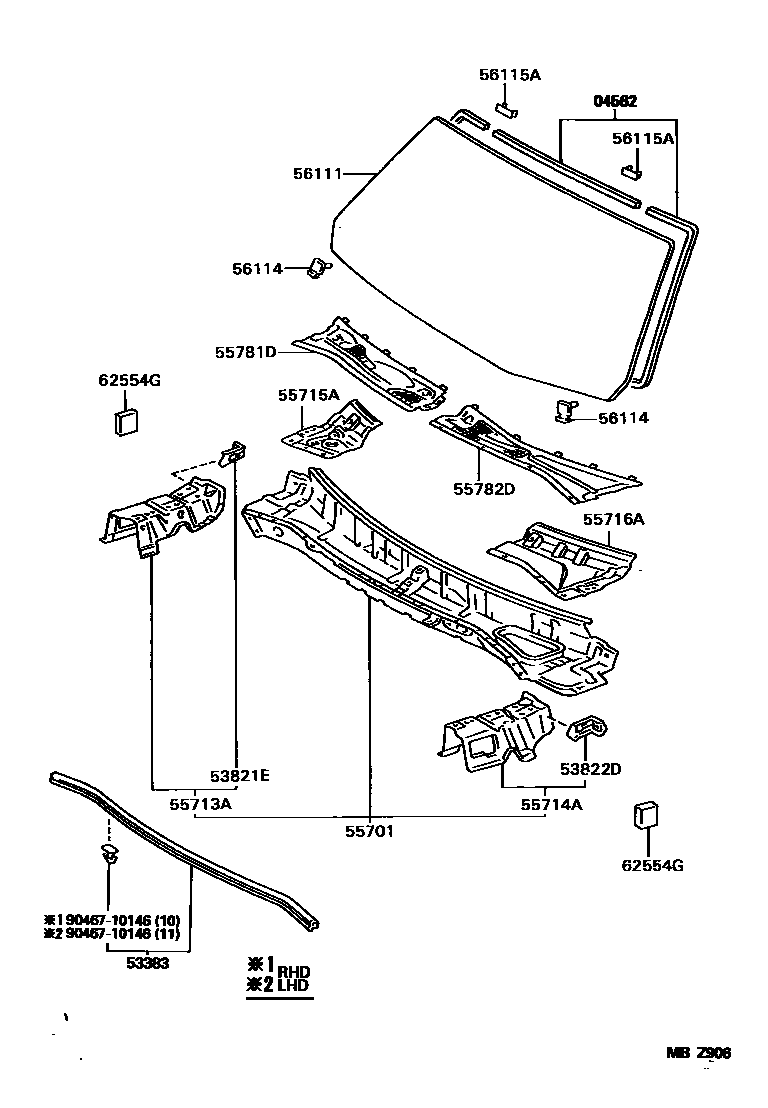

Parts diagram

04562DAM KIT, WINDSHIELD GLASS

main04562-12010i199512

53383SEAL, HOOD TO COWL TOP

main53383-30130i199512

main53383-30210i199512

53821EBRACKET, FRONT FENDER, REAR RH

main53821-30090i199707-199909

main53821-30100i199512-200108

53822DBRACKET, FRONT FENDER, REAR LH

main53822-30110i199707-199909

main53822-30120i199512-200108

55701PANEL SUB-ASSY, COWL

main55700-30790i199707-199909

W(HOT WATER PANEL HEATER)

main55700-30800i199707-199909

main55700-30840i199512-199909

main55700-30870i199512-200108

55713APANEL, COWL TOP SIDE, RH

main55713-30903i199707-199909

main55713-30904i199512-200108

55714APANEL, COWL TOP SIDE, LH

main55714-30903i199707-199909

main55714-30904i199512-200108

55715ABRACE, COWL TOP TO APRON, RH

main55715-30040i199512-199909

main55715-30060i199512-200108

55716ABRACE, COWL TOP TO APRON, LH

main55716-30050i199512-199909

main55716-30070i199512-200108

55781DLOUVER, COWL TOP VENTILATOR, RH

main55781-30160i199512

main55781-30200i199512

55782DLOUVER, COWL TOP VENTILATOR, LH

main55782-30120i199512

main55782-30160i199512

56111GLASS, WINDSHIELD

main56111-30810i199707

*LAM,T=4.76,GREEN

main56111-30890i199707-199808

*LAM,T=4.76,GREEN

main56111-3A140i199512

*LAM,T=4.76,GREEN

main56111-3A270i199512

*LAM,T=4.76,GREEN

main56111-3A280i199512

*LAM,T=4.76,GREEN,W(TOP SHADE)

main56111-3A290i199512

*LAM,T=4.76,BRONZE

main56111-3A300i199512-199609

*LAM,T=4.76,BRONZE

main56111-3A330i199707

*UVCL,T=4.76,BRONZE

main56111-3A340i199707-199808

*UVCL,T=4.76,BRONZE

main56111-3A380i199609

*UVCL,T=4.76,BRONZE

56114RETAINER, WINDSHIELD GLASS

main56114-30090×2i199512-199711

main56114-50020×2i199711

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-30040×2i199512

62554GPAD, PILLAR, NO.4

main62554-30010×2i199512

9046710146

main90467-10146

16 parts on this diagram · 1 diagram in section
