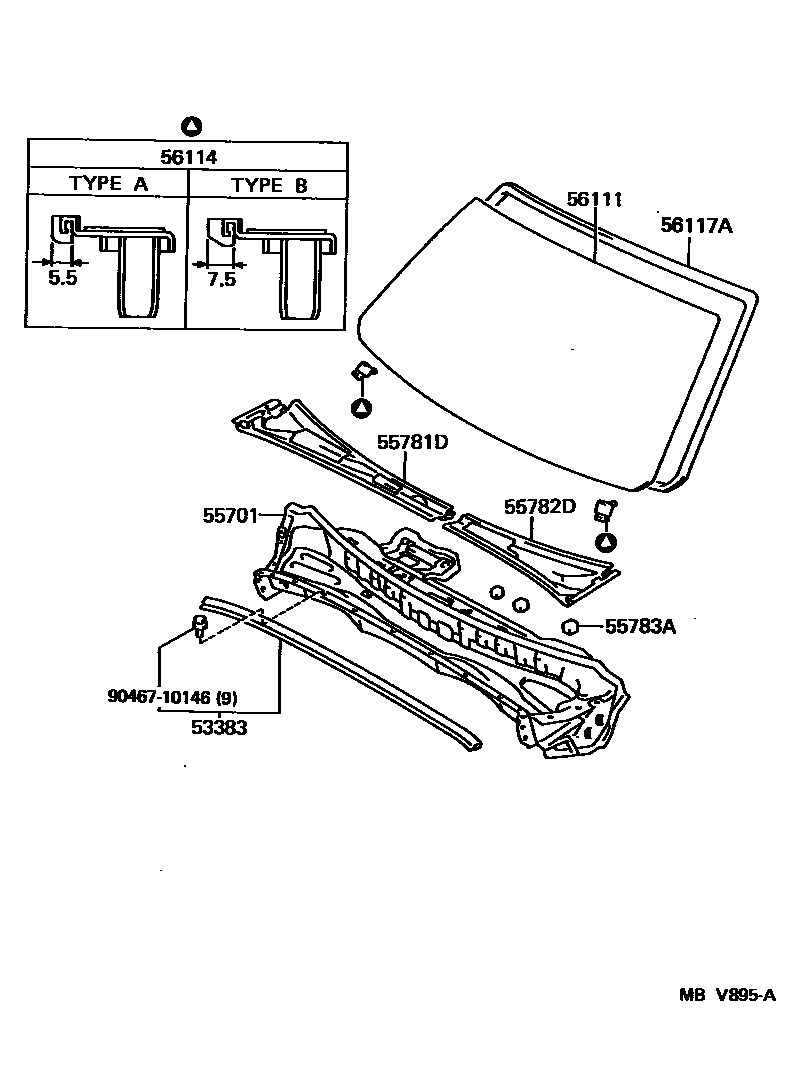

Toyota CROWN — COWL PANEL & WINDSHIELD GLASS

53383SEAL, HOOD TO COWL TOP

main53383-30110iGS131,JZS133,LS130,YS132199110-200104

55701PANEL SUB-ASSY, COWL

main55700-30341iLS130..RHD199110-199308

main55700-30342iLS130199308-199512

main55700-30450iLS130..LHD199110-199308

main55700-30480iGS131,JZS133..RHD199110-200104

main55700-30510iGS131,JZS133..LHD199110-199904

main55700-30520iYS132199110-199512

main55700-30530iJZS133..EECC199110-199308

W(AIR BAG)

main55700-30700iJZS133..EECC199110-199308

COLD AREA SPEC

main55700-30710iJZS133..EECC199110-199308

COLD AREA SPEC & W(AIR BAG)

55781DLOUVER, COWL TOP VENTILATOR, RH

main55781-30081iGS131,JZS133,LS130..RHD199110-200104

main55781-30091iGS131,JZS133,LS130,YS132..LHD199110-199904

main55781-30101iJZS133..EECC199110-199308

COLD AREA SPEC

55782DLOUVER, COWL TOP VENTILATOR, LH

main55782-30041iGS131,JZS133,LS130..RHD199110-200104

main55782-30051iGS131,JZS133,LS130,YS132..LHD199110-199904

main55782-30061iJZS133..EECC199110-199308

COLD AREA SPEC

55783APAD, COWL TOP SILENCER

main55783-30020×6iGS131,JZS133,LS130,YS132199110-200104

sub61824-12090

56111GLASS, WINDSHIELD

main56111-30880iJZS133..EECC199110-199308

*TL,T=5.3,BRONZE,COLD SPEC

sub56111-30881

main56111-3A020iJZS133..EECC199110-199308

*TL,T=5.3,BLUE,COLD SPEC & W(TOP SHADE)

sub56111-3A021

main56111-3A040iLS130,YS132199110-199308

*TL,T=5.3

main56111-3A050iGS131..LHD199110-199512

*TL,T=5.3,BRONZE

main56111-3A070iJZS133..G199110-199512

*TL,T=5.3,BLUE

main56111-3A080iJZS133..G199110-199512

*TL,T=5.3,BLUE,W(TOP SHADE)

main56111-3A090iJZS133,LS130,YS132..B,D199110-199512

*TL,T=5.3,BLUE

main56111-3A310iGS131,JZS133199512-200104

*TL,T=5.3,GREEN

56114RETAINER, WINDSHIELD GLASS

main56114-30070×2iGS131,JZS133,LS130,YS132199110-200104

TYPE A

main56114-30080×2iGS131,JZS133,LS130,YS132199110-200104

TYPE B

56117ADAM, WINDOW GLASS ADHESIVE

main56117-30200iGS131,JZS133,LS130,YS132199110-200104

9046710146

main90467-10146

9 parts on this diagram · 1 diagram in section
