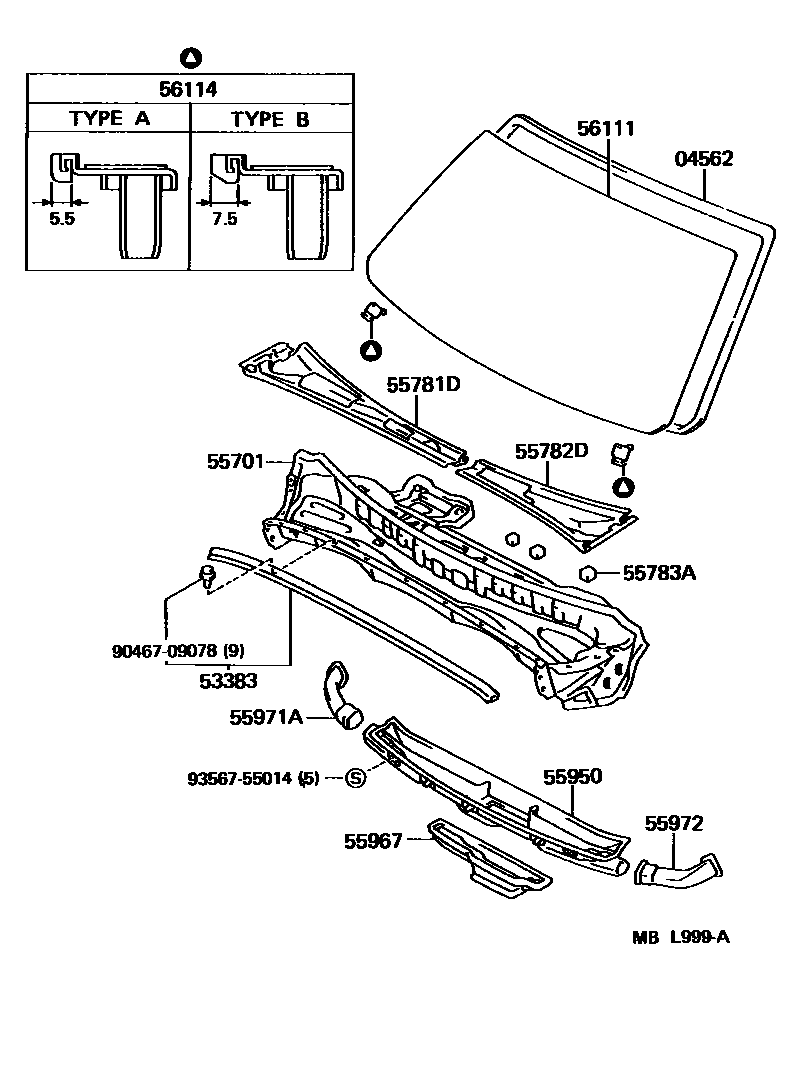

Toyota CROWN — COWL PANEL & WINDSHIELD GLASS

04562DAM KIT, WINDSHIELD GLASS

main04562-30040iGS131,LS130,MS13#,YS132198709-199110

53383SEAL, HOOD TO COWL TOP

main53383-30080iGS131,LS130,MS13#,YS132198709-199110

55701PANEL SUB-ASSY, COWL

main55700-30340iLS130..RHD198709-198908

main55700-30341iLS130..4H198908-199110

main55700-30450iLS130..LHD198709-199110

main55700-30480iMS133..SAL..GEN;GS131,MS132,135..RHD198709-199110

main55700-30481iMS133..STD198908-199110

main55700-30500iYS132..4F198904-198906

011PHILIPPINE SPEC

main55700-30510iGS131,MS13#..LHD198709-199110

main55700-30520iYS132198709-199110

55781DLOUVER, COWL TOP VENTILATOR, RH

main55781-30080iGS131,LS130,MS132,135..RHD198709-198908

main55781-30081iGS131,LS130,MS133,135..RHD199002-199110

main55781-30090iLS130,MS13#,YS132..LHD198709-198908

main55781-30091iGS131,LS130,MS13#,YS132..LHD199001-199110

55782DLOUVER, COWL TOP VENTILATOR, LH

main55782-30040iGS131,LS130,MS132,135..RHD198709-198908

main55782-30041iGS131,LS130,MS133,135..RHD199002-199110

main55782-30050iGS131,LS130,MS13#,YS132..LHD198908-199001

main55782-30051iGS131,LS130,MS13#,YS132..LHD199001-199110

55783APAD, COWL TOP SILENCER

main55783-30020×6iGS131,LS130,MS13#,YS132198709-199110

sub61824-12090

55950NOZZLE ASSY, DEFROSTER

main55951-30100iLS130,MS132,135..RHD198709-198812

main55951-30110iGS131,LS130,MS13#,YS132..LHD198709-199110

55967NOZZLE, DEFROSTER, LOWER

main55967-30010iLS130,MS132,135..RHD198709-198812

main55967-30020iGS131,LS130,MS13#,YS132..LHD198709-199110

55971ADUCT, SIDE DEFROSTER NOZZLE, NO.1

main55971-30050iLS130,MS13#,YS132198709-198812

55972DUCT, SIDE DEFROSTER NOZZLE, NO.2

main55972-30050iLS130,MS13#,YS132198709-198812

56111GLASS, WINDSHIELD

main56111-30590iGS131..5F..ROY;LS130,MS132,133,YS132..SED..(DLX,SAL,STD)199101-199110

*TL,T=5.3

main56111-30600iYS132..4F198904-198906

*TL,T=5.3,W(SHADE),011PHILIPPINE SPEC

main56111-30610iGS131,MS132,135..(SED,WG)..(ROY,SAL)198709-198908

*TL,T=5.3,BRONZE

main56111-30630iLS130,YS132198709-199110

*TEM,T=5.0

main56111-30640iMS133,135..HT198709-199110

*TL,T=5.3

main56111-30650iMS133,135..HT198709-199110

*LAM,T=5.3,BRONZE

56114RETAINER, WINDSHIELD GLASS

main56114-30070×2iGS131,LS130,MS13#,YS132198709-199110

TYPE A

main56114-30080×2iGS131,LS130,MS13#,YS132198709-199110

TYPE B

9046709078

main90467-09078

9356755014

main93567-55014

14 parts on this diagram · 1 diagram in section
