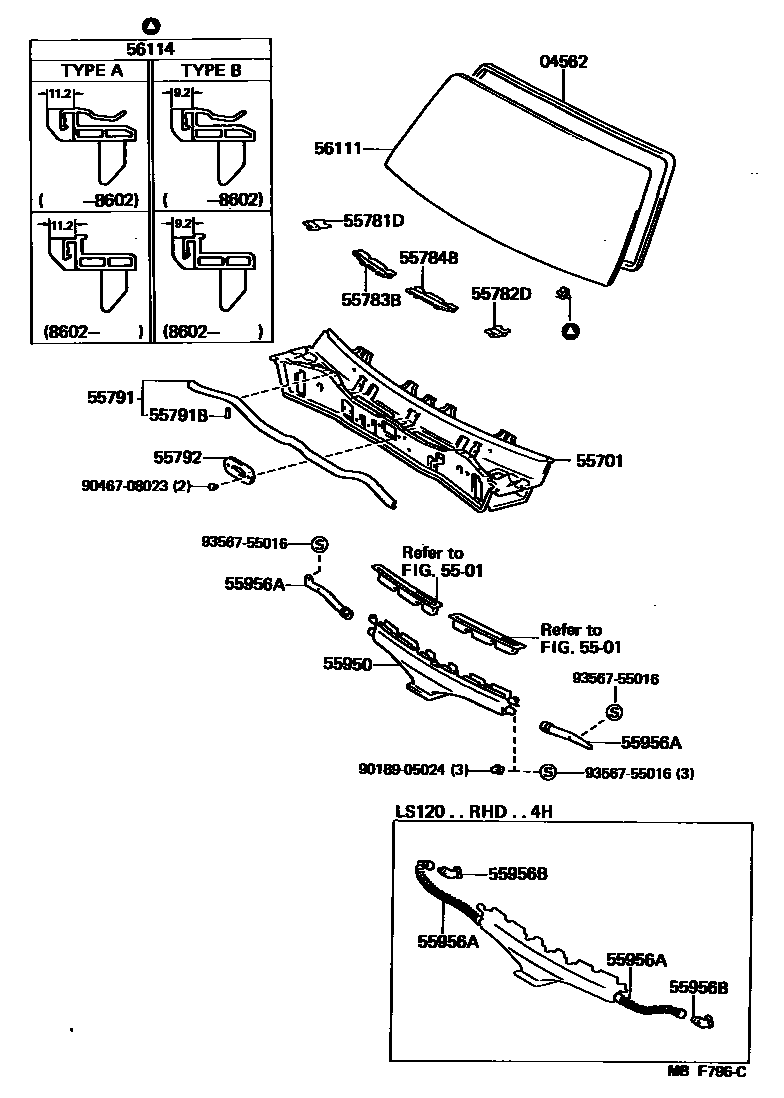

Toyota CROWN — COWL PANEL & WINDSHIELD GLASS

04562DAM KIT, WINDSHIELD GLASS

main04562-30040iLS120,MS12#,YS120198308-198708

5501

55701PANEL SUB-ASSY, COWL

main55700-30350iLS120..RHD..4H198308-198708

main55700-30400iMS123,125..RHD198308-198708

main55700-30410iLS120..LHD198308-198708

main55700-30420iMS12#,YS120..LHD198308-198708

main55700-30440iMS122,YS120..RHD198308-198708

55781DLOUVER, COWL TOP VENTILATOR, RH

main55781-30070iLS120,MS12#,YS120..RHD198308-198708

55782DLOUVER, COWL TOP VENTILATOR, LH

main55782-30030iLS120,MS12#,YS120..LHD198308-198708

55783BLOUVER, COWL TOP VENTILATOR, CENTER NO.1

main55783-30010iLS120,MS12#,YS120198308-198708

55784BLOUVER, COWL TOP VENTILATOR, CENTER NO.2

main55784-30030iLS120,MS12#,YS120198308-198708

55791WEATHERSTRIP, HOOD TO COWL TOP

main53383-30070iLS120,MS12#,YS120198308-198708

55791BCLIP(FOR HOOD TO COWL TOP WEATHERSTRIP)

main90467-08041×8iLS120,MS12#,YS120198308-198708

BLACK

main90467-08044×6iLS120,MS12#,YS120198308-198708

DARK GRAY

sub90467-08011

55792COVER, WIPER MOTOR SERVICE HOLE

main55793-24010iLS120,MS12#,YS120198308-198708

55950NOZZLE ASSY, DEFROSTER

main55950-30050iLS120,MS12#,YS120..LHD198308-198708

main55950-30060iLS120,MS12#,YS120..RHD198308-198708

55956ADUCT, SIDE DEFROSTER NOZZLE, NO.1

main55971-30010iLS120,MS12#,YS120..LHD198308-198708

RH

main55971-30020iLS120,MS12#,YS120..RHD..(4F,4FC,4HC,5F)198308-198708

RH

main55971-30040×2iLS120..RHD..4H198308-198708

main55972-30020iLS120,MS12#,YS120..LHD198308-198708

LH

main55972-30040iLS120,MS12#,YS120..RHD..(4F,4FC,4HC,5F)198308-198708

LH

55956BDUCT, SIDE DEFROSTER NOZZLE, NO.2

main55972-30010×2iLS120..RHD..4H198308-198708

56111GLASS, WINDSHIELD

main56111-30480iLS120,MS122,123,YS120..SED..(SAL,STD)198308-198708

*TL,T=5.3

main56111-30490iLS120,MS12#,YS120..(SED,WG)..(ROY,SAL)..(GEN,SAA)198308-198708

SUN SHADE,*TL,T=5.3

main56111-30500iLS120,YS120..STD198308-198708

*TEM,T=5.0

sub56111-30570

main56111-30510iMS123..ARL198308-198708

*LAM,T=5.3

main56111-30520iLS120,MS12#,YS120..(ROY,SAL)..(GEN,SAA)198308-198408

BRONZE,*LAM,T=5.3

main56111-30530iLS120,MS12#,YS120..(SED,WG)..(ROY,SAL)..(GEN,SAA)198408-198708

SUN SHADE,BRONZE,*LAM,T=5.3

main56111-30540iMS122,125..HT198509-198708

SUN SHADE,*TL,T=5.3

main56111-30560iMS122,125..HT198509-198708

SUN SHADE,BRONZE,*TL,T=5.3

56114RETAINER, WINDSHIELD GLASS

main56114-30010×2iLS120,MS12#,YS120198308-198602

TYPE A

main56114-30020×2iLS120,MS12#,YS120198308-198602

TYPE B

main56114-30050×2iLS120,MS12#,YS120198602-198708

TYPE A

main56114-30060×2iLS120,MS12#,YS120198602-198708

TYPE B

9018905024

main90189-05024

9046708023

main90467-08023

9356755016

main93567-55016

18 parts on this diagram · 1 diagram in section
