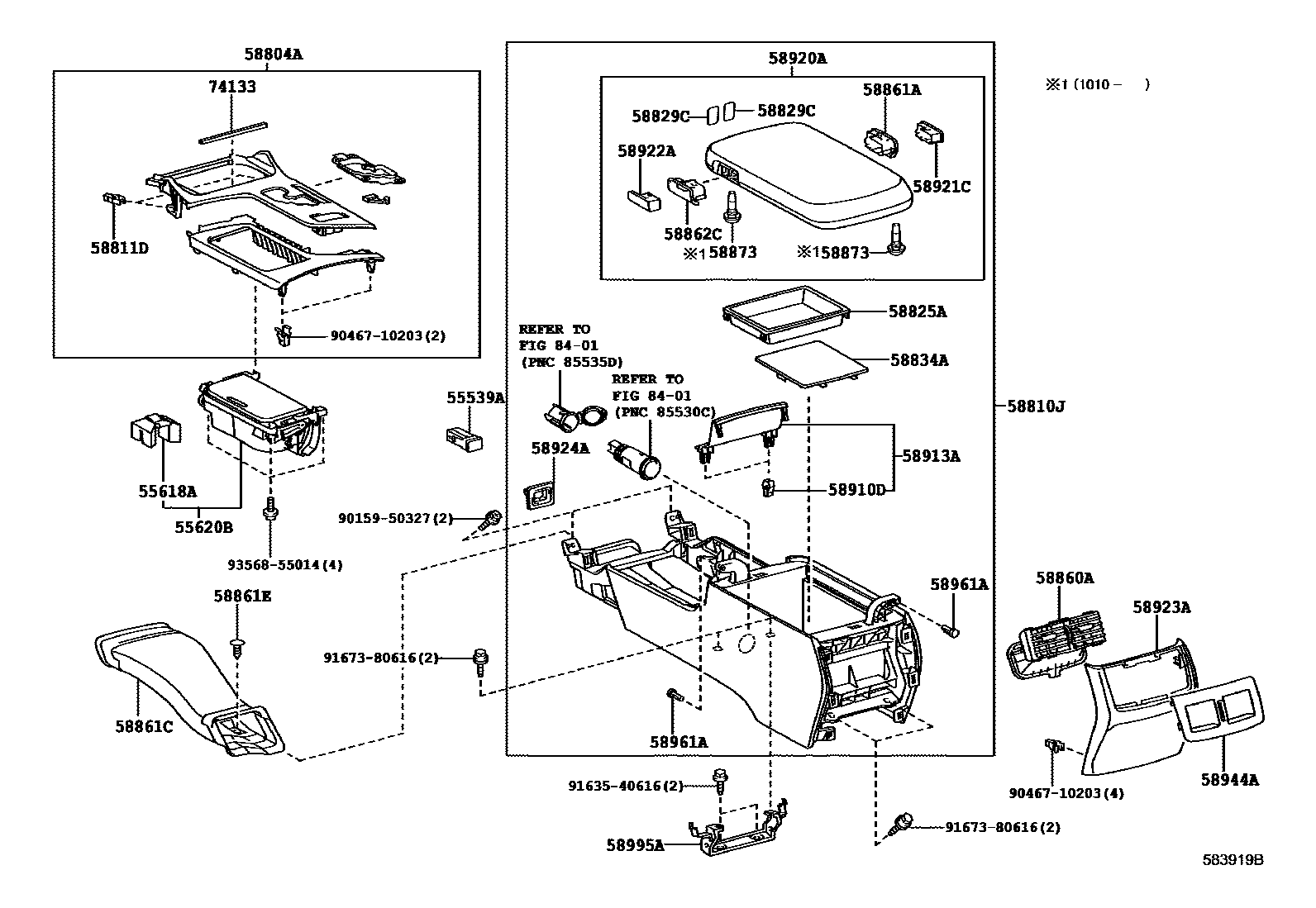

Toyota CROWN — CONSOLE BOX & BRACKET
55539ACOVER, SPARE SWITCH HOLE
55618AHOLDER, CONSOLE BOX CUP
55620BHOLDER, INSTRUMENT PANEL CUP
DK. BROWN,TRIM0#,1#
58804APANEL SUB-ASSY, CONSOLE, UPPER
DK. BROWN,TRIM0#,1#
58810JBOX ASSY, CONSOLE
SHELL,TRIM0#
GRAY,TRIM1#
SHELL,TRIM0#
58811DCLIP(FOR CONSOLE BOX)
MELLOW WHITE
58825APOCKET, CONSOLE BOX
58829CSTOPPER, CONSOLE BOX POCKET
SHELL,TRIM0#
GRAY,TRIM1#
58834ACOVER, CONSOLE, LOWER
58860AREGISTER ASSY, CONSOLE BOX
58861ASUPPORT, CONSOLE BOX, NO.1
SHELL,TRIM0#
GRAY,TRIM1#
58861CDUCT, CONSOLE BOX, NO.1
58861ECLIP, CONSOLE BOX DUCT
BLACK
58862CSUPPORT, CONSOLE BOX, NO.2
SHELL,TRIM0#
GRAY,TRIM1#
58873CUSHION, CONSOLE BOX, NO.3
58910DCLIP(FOR CONSOLE BOX)
MELLOW WHITE
58913APANEL, BOX, NO.3
SHELL,TRIM0#
GRAY,TRIM1#
58920AARMREST ASSY, REAR CONSOLE
SHELL,TRIM0#
GRAY,TRIM1#
SHELL,TRIM0#
58921CPLATE, BOX, UPPER NO.1
58922APLATE, BOX, UPPER NO.2
58923APANEL, CONSOLE REAR END
SHELL,TRIM0#
GRAY,TRIM1#
58924APANEL, CONSOLE REAR END, NO.2
58944ACOVER, CONSOLE, REAR
DK. BROWN,TRIM0#,1#
58961AHINGE, CONSOLE COMPARTMENT DOOR MALE
58995ABRACKET, CONSOLE BOX MOUNTING, NO.1
74133SEAL, FRONT ASH RECEPTACLE
8401
9015950327
main90159-50327
9046710203
main90467-10203
9163540616
main91635-40616
9167380616
main91673-80616
9356855014
main93568-55014
32 parts on this diagram · 1 diagram in section
