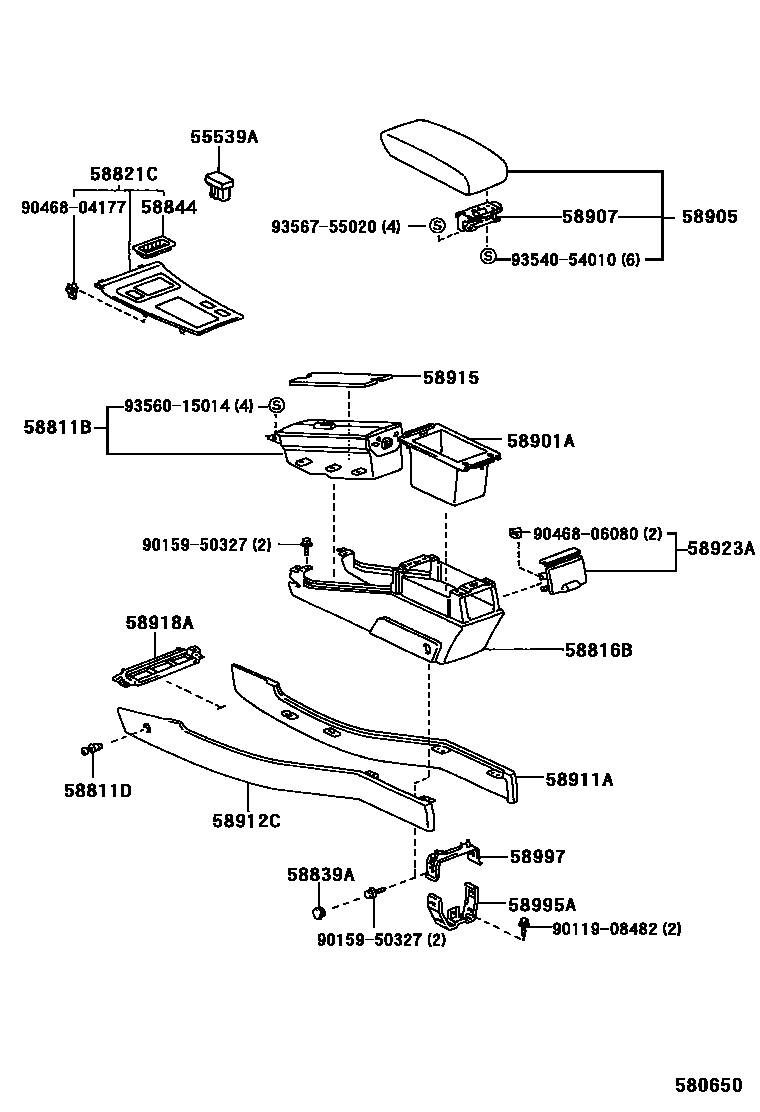

Toyota CROWN — CONSOLE BOX & BRACKET
55539ACOVER, SPARE SWITCH HOLE
BLACK,TRIM1#,4#
58811BBOX, CONSOLE
DK.BLUE GRAY,TRIM1#
ANTELOPE,TRIM4#
WOOD GRAIN
58811DCLIP(FOR CONSOLE BOX)
DK.BLUE GRAY,TRIM1#
ANTELOPE,TRIM4#
58816BINSERT, CONSOLE BOX
DK.BLUE GRAY,TRIM1#
ANTELOPE,TRIM4#
58821CPANEL, CONSOLE, UPPER
WOOD GRAIN
58839ACOVER, CONSOLE BOX HOLE
DARK BLUE GRAY,TRIM1#
ANTELOPE,TRIM4#
58844BEZEL, CONSOLE BOX
58901ABOX SUB-ASSY, CONSOLE, REAR
58905DOOR SUB-ASSY, CONSOLE COMPARTMENT
DK.BLUE GRAY,TRIM1#
ANTELOPE,TRIM4#
LT. BLUISH GRAY,TRIM1#
QUARTZ,TRIM4#
DK.BLUE GRAY,TRIM1#
ANTELOPE,TRIM4#
BLUE GRAY,TRIM1#
W(CONSOLE BOX = FABRIC),QUARTZ,TRIM4#
58907HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR
58911APANEL, BOX SIDE, NO.1
DK.BLUE GRAY,TRIM1#
ANTELOPE,TRIM4#
58912CPANEL, BOX SIDE, NO.2
DK.BLUE GRAY,TRIM1#
ANTELOPE,TRIM4#
58915PANEL, BOX BOTTOM
58918ABRACKET, BOX SUPPORT
58923APANEL, CONSOLE REAR END
WOOD GRAIN;W(REAR COOLER)
W(REAR AIR CONDITIONER),DK.BLUE GRAY,TRIM1#
W(REAR AIR CONDITIONER),ANTELOPE,TRIM4#
DK.BLUE GRAY,TRIM1#
ANTELOPE,TRIM4#
W(REAR AIR CONDITIONER)
58995ABRACKET, CONSOLE BOX MOUNTING, NO.1
58997BRACKET, CONSOLE BOX MOUNTING, NO.3
9011908482
main90119-08482
9015950327
main90159-50327
9046804177
main90468-04177
9046806080
main90468-06080
9354054010
main93540-54010
9356015014
main93560-15014
9356755020
main93567-55020
24 parts on this diagram · 2 diagrams in section
