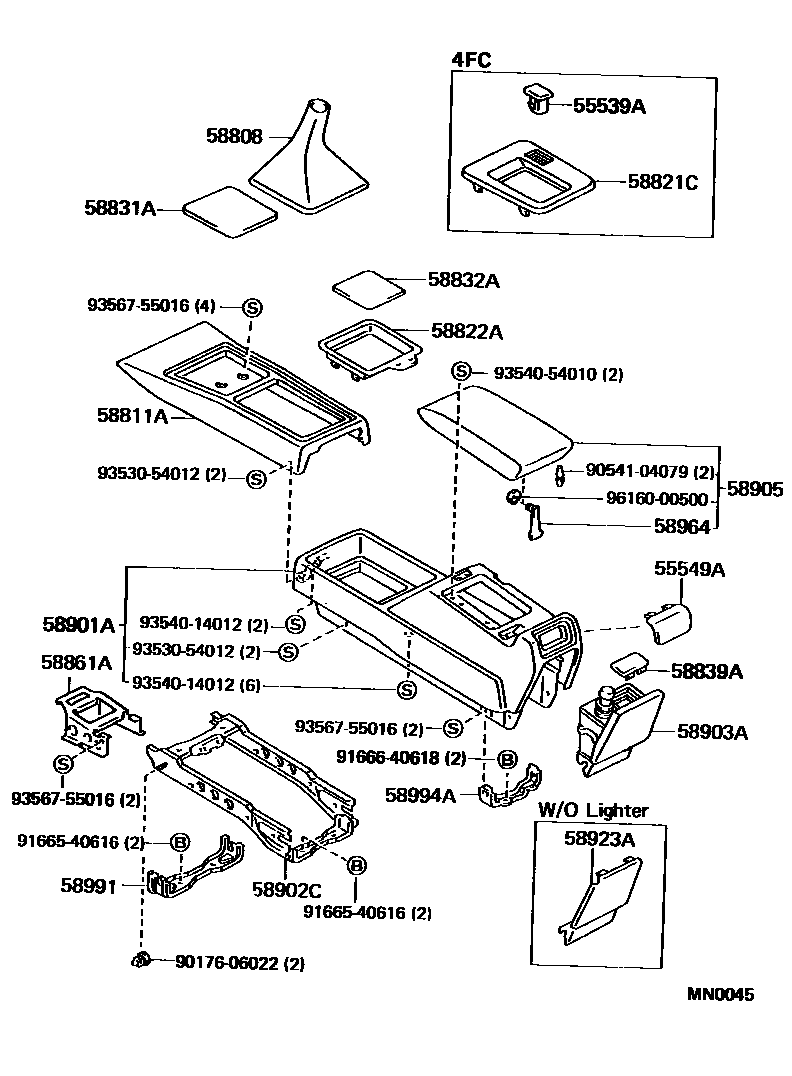

Toyota CROWN — CONSOLE BOX & BRACKET

0001 1 0002 1 0003 1 0004 1

55539ACOVER, SPARE SWITCH HOLE

main55539-30070iGS131,MS132,135..RHD..4FC..ROY198709-198906

main55539-30071iGS131,MS132,135..RHD..4FC..ROY198906-198908

main55539-30080-01iMS132,133..LHD..4FC198709-198908

BLACK,TRIM3#,4#,8#

main55539-30080-02iMS132,133..LHD..4FC198709-199110

MAROON,TRIM3#

main55539-30080-04iMS132,133..LHD..4FC198709-199110

BLUE,TRIM8#

main55539-30080-06iMS132,133..LHD..4FC198709-199110

SABLE,TRIM4#

main55539-30110iGS131,MS135..RHD..4FC198908-199110

55549ACOVER, REAR COOLER SWITCH HOLE

main55549-30070-02iGS131..4FC198812-198908

MAROON,TRIM3#

main55549-30080-02iMS132,133..RHD..4FC..SAL198709-199110

MAROON,TRIM3#

main55549-30080-04iMS132,133..RHD..4FC..SAL198709-199110

BLUE,TRIM8#

main55549-30080-06iMS132,133..RHD..4FC..SAL198709-199110

SABLE,TRIM4#

main55549-30090-02iMS135..V;MS132..RHD..5F;MS135..SED..GCC;MS133..4FC..GCC;MS132..LHD..(DLX,SAL,STD);GS131,LS130,MS133,YS132..4F,5F198709-198911

MAROON,TRIM3#

main55549-30090-04iMS135..V;MS132..RHD..5F;MS135..SED..GCC;MS133..4FC..GCC;MS132..LHD..(DLX,SAL,STD);GS131,LS130,MS133,YS132..(4F,5F)..(SAL,SALEX,STD)198709-198911

BLUE,TRIM8#

main55549-30090-06iMS133..5F..SAL;GS131,MS132..SAL;MS133,135..SED..4FC..GCC199008-199110

SABLE,TRIM4#

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-30070-02iGS131,LS130,MS132,133,YS132..4F,5F198709-199110

MAROON,TRIM3#

main58808-30070-04iGS131,LS130,MS132,133,YS132..(4F,5F)..(DLX,SAL,SALEX,STD)198709-199110

BLUE,TRIM8#

main58808-30070-06iGS131,MS132,133..5F..(SAL,SALEX)198709-199110

SABLE,TRIM4#

58811ABOX, CONSOLE, FRONT

main58802-30040-02iGS131,MS135..RHD..4FC198908-199110

MAROON,TRIM3#

main58802-30040-04iMS135..RHD..4FC198908-199110

BLUE,TRIM8#

main58802-30040-06iMS135..RHD..4FC198908-199110

SABLE,TRIM4#

main58811-30220-02iGS131,MS132,135..RHD..4FC..ROY198709-198908

MAROON,TRIM3#

main58811-30220-04iMS132,135..RHD..4FC..ROY198709-198908

BLUE,TRIM8#

main58811-30220-06iMS132,135..RHD..4FC..ROY198709-198908

SABLE,TRIM4#

main58811-30240-02iMS132,135..LHD..ROY;GS131,LS130,YS132..4F,5F;MS132,133..(4F,4FC,5F)..(DLX,SAL,SALEX,STD)198709-199110

MAROON,TRIM3#

main58811-30240-04iMS132,135..LHD..ROY;GS131,LS130,MS132,133,YS132..(4F,4FC,5F)..(DLX,SAL,SALEX,STD)198709-199110

BLUE,TRIM8#

main58811-30240-06iMS132,135..LHD..ROY;GS131,MS132,133..SAL,SALEX198709-199110

SABLE,TRIM4#

58821CPANEL, CONSOLE, UPPER

main58821-30180-02iMS132..RHD..4FC..SAL198709-198908

MAROON,TRIM3#

main58821-30180-04iMS132..RHD..4FC..SAL198709-198908

BLUE,TRIM8#

main58821-30180-06iMS132..RHD..4FC..SAL198709-198908

SABLE,TRIM4#

main58821-30190-02iMS13#..LHD..4FC198709-199110

MAROON,TRIM3#

main58821-30190-04iMS13#..LHD..4FC198709-199110

BLUE,TRIM8#

main58821-30190-06iMS13#..LHD..4FC198709-199110

SABLE,TRIM4#

main58821-30210iGS131,MS132,135..RHD..4FC..ROY198709-198908

main58821-30230-02iMS133..4FC..GEN198908-199110

MAROON,TRIM3#

main58821-30230-04iMS133..4FC..GEN198908-199110

BLUE,TRIM8#

main58821-30230-06iMS133..4FC..GEN198908-199110

SABLE,TRIM4#

main58821-30250-02iGS131,MS135..RHD..4FC198908-199110

MAROON,TRIM3#

main58821-30250-04iMS135..RHD..4FC198908-199110

BLUE,TRIM8#

main58821-30250-06iMS135..RHD..4FC198908-199110

SABLE,TRIM4#

58822APANEL, CONSOLE, UPPER REAR

main58822-30160-02iMS132,135..LHD;MS132..RHD..5F;MS133..4FC..GCC;GS131,LS130,MS133,YS132..4F,5F198709-199110

MAROON,TRIM3#

main58822-30160-04iMS132,135..LHD;MS132..RHD..5F;MS133..4FC..GCC;GS131,LS130,MS133,YS132..(4F,5F)..(SAL,SALEX,STD)198709-199110

BLUE,TRIM8#

main58822-30160-06iMS133..4FC..GCC;MS132..RHD..5F..SAL;MS133..5F..(SAL,SALEX);GS131,MS132,135..LHD..(ROY,SAL)198709-199110

SABLE,TRIM4#

58831AGARNISH, CONSOLE UPPER PANEL, FRONT

main58831-30050iGS131,MS132,135..RHD..4FC..ROY198709-198908

main58831-30060-02iGS131..5F;MS132,135..LHD..ROY;MS132,133..SAL,SALEX198709-199110

MAROON,TRIM3#

main58831-30060-04iMS132,135..LHD..ROY;GS131,MS132,133..SAL,SALEX198709-199110

BLUE,TRIM8#

main58831-30060-06iMS132,135..LHD..ROY;GS131,MS132,133..SAL,SALEX198709-199110

SABLE,TRIM4#

58832AGARNISH, CONSOLE UPPER PANEL, REAR

main58832-30070-02iMS133..4FC..GCC;MS132..RHD..5F..SAL;MS132,135..LHD..(ROY,SAL);GS131,MS133..5F..(ROY,SAL,SALEX)198905-199110

MAROON,TRIM3#

main58832-30070-04iMS133..4FC..GCC;MS132..RHD..5F..SAL;MS133..5F..(SAL,SALEX);GS131,MS132,135..LHD..(ROY,SAL)198709-199110

BLUE,TRIM8#

main58832-30070-06iMS133..4FC..GCC;MS132..RHD..5F..SAL;MS133..5F..(SAL,SALEX);GS131,MS132,135..LHD..(ROY,SAL)198709-199110

SABLE,TRIM4#

main58832-30080iGS131..4FC198812-198905

main58832-30090iGS131,MS132,135..RHD..4FC..ROY198905-198908

58839ACOVER, CONSOLE BOX HOLE

main58839-30030iMS132..STD;GS131,LS130,YS132..(4F,4FC,5F)..(ROY,STD)198908-198910

main58839-30031iMS132..STD;GS131,LS130,YS132..4F,4FC,5F199004-199110

58861ASUPPORT, CONSOLE BOX, NO.1

main58861-30040iLS130,MS132,YS132..(4F,5F)..STD198709-198801

58901ABOX SUB-ASSY, CONSOLE, REAR

main58901-30070-02iMS132,133..RHD..4FC..SAL198709-199110

MAROON,TRIM3#

sub58901-30071

main58901-30070-04iMS132,133..RHD..4FC..SAL198709-199110

BLUE,TRIM8#

sub58901-30071

main58901-30070-06iMS132,133..RHD..4FC..SAL198709-199110

SABLE,TRIM4#

sub58901-30071

main58901-30080-02iMS132,135..LHD;MS132..RHD..5F;MS133..4FC..GCC;GS131,LS130,MS133,YS132..4F,5F198709-199110

MAROON,TRIM3#

sub58901-30081

main58901-30080-04iMS132,135..LHD;MS132..RHD..5F;MS133..4FC..GCC;GS131,LS130,MS133,YS132..(4F,5F)..(SAL,SALEX,STD)198709-199110

BLUE,TRIM8#

sub58901-30081

main58901-30080-06iMS133..4FC..GCC;MS132..RHD..5F..SAL;MS133..5F..(SAL,SALEX);GS131,MS132,135..LHD..(ROY,SAL)198709-199110

SABLE,TRIM4#

sub58901-30081

main58901-30110iGS131,MS132,135..RHD..4FC..ROY198709-198908

main58901-30120-02iGS131,MS135..RHD..4FC198908-199110

MAROON,TRIM3#

main58901-30120-04iMS135..RHD..4FC198908-199110

BLUE,TRIM8#

main58901-30120-06iMS135..RHD..4FC198908-199110

SABLE,TRIM4#

58902CBRACKET SUB-ASSY, CONSOLE BOX MOUNTING

main58902-30030iLS130,MS13#,YS132..4F,4FC,5F198709-198812

main58902-30040iGS131,LS130,MS13#,YS132..4F,4FC,5F198908-199010

main58902-30060iMS133..STD199010-199110

W(FLOOR CARPET)

58903APANEL SUB-ASSY, CONSOLE REAR END

main58903-30090-02iMS132..SAL;MS132,135..LHD..(ROY,STD);LS130,MS133,YS132..4F,4FC,5F198709-198809

MAROON,TRIM3#

main58903-30090-04iMS132,133..SAL,SALEX;MS132,135..LHD..(ROY,STD);GS131,LS130,YS132..(4F,5F)..(SAL,STD)198709-199106

BLUE,TRIM8#

main58903-30090-06iMS132,135..LHD..ROY;GS131,MS132,133..SAL,SALEX198709-199106

SABLE,TRIM4#

main58903-30091-D0iMS133..SAL,SALEX;GS131,LS130,YS132..4F,5F;MS132,135..LHD..(ROY,SAL,STD)199106-199110

MAROON,TRIM3#

main58903-30091-E1iMS133..SAL,SALEX;GS131,MS132,135..LHD..(ROY,SAL)199106-199110

SABLE,TRIM4#

main58903-30091-J1iMS133..SAL,SALEX;GS131,LS130,MS132,135,YS132..LHD..(4F,4FC,5F)..(ROY,SAL,STD)199106-199110

BLUE,TRIM8#

58905DOOR SUB-ASSY, CONSOLE COMPARTMENT

main58905-30130-02iGS131,MS132,135..RHD..4FC..ROY198709-198908

MAROON,TRIM3#

main58905-30130-04iMS132,135..RHD..4FC..ROY198709-198908

BLUE,TRIM8#

main58905-30130-06iMS132,135..RHD..4FC..ROY198709-198908

SABLE,TRIM4#

main58905-30140-02iMS132,133..RHD..4FC..SAL198709-199110

MAROON,TRIM3#

main58905-30140-04iMS132,133..RHD..4FC..SAL198709-199110

BLUE,TRIM8#

main58905-30140-06iMS132,133..RHD..4FC..SAL198709-199110

SABLE,TRIM4#

main58905-30150-02iMS132,135..LHD;MS132..RHD..5F;MS133..4FC..GCC;GS131,LS130,MS133,YS132..4F,5F198709-199110

MAROON,TRIM3#

main58905-30150-04iMS132,135..LHD;MS132..RHD..5F;MS133..4FC..GCC;GS131,LS130,MS133,YS132..(4F,5F)..(SAL,SALEX,STD)198709-199110

BLUE,TRIM8#

main58905-30150-06iMS133..4FC..GCC;MS132..RHD..5F..SAL;MS133..5F..(SAL,SALEX);GS131,MS132,135..LHD..(ROY,SAL)198709-199110

SABLE,TRIM4#

main58905-30210-02iGS131,MS135..RHD..4FC198908-199110

MAROON,TRIM3#

main58905-30210-04iMS135..RHD..4FC198908-199110

BLUE,TRIM8#

main58905-30210-06iMS135..RHD..4FC198908-199110

SABLE,TRIM4#

58923APANEL, CONSOLE REAR END

main58923-30070-02iMS135..V;MS135..SED..GCC;MS132,133..(4FC,5F)..(DLX,SAL,SALEX,STD)198709-199110

MAROON,TRIM3#

main58923-30070-04iMS135..V;MS135..SED..GCC;MS132,133..(4FC,5F)..(DLX,SAL,SALEX,STD)198709-199110

BLUE,TRIM8#

main58923-30070-06iMS135..V;MS135..SED..GCC;MS132,133..SAL,SALEX198709-199110

SABLE,TRIM4#

58964STOPPER, CONSOLE COMPARTMENT DOOR, NO.1

main58964-30050iMS132,135..LHD..ROY;GS131,LS130,YS132..4F,5F;MS132,133..DLX,SAL,SALEX,STD198812-199110

main58964-30060iGS131,MS132,135..RHD..4FC..ROY198709-198908

main58964-30070iGS131,MS135..RHD..4FC198908-199110

58991BRACKET, CONSOLE BOX MOUNTING, UPPER

main58991-30080iGS131,LS130,MS13#,YS132..4F,4FC,5F198812-199110

58994ABRACKET, CONSOLE BOX MOUNTING, NO.4

main58994-30020iMS132,135..LHD..ROY;LS130,MS132,133,YS132..(4F,4FC,5F)..(DLX,SAL,SALEX,STD)198709-198812

main58994-30030iGS131..4FC198812-198908

main58994-30040iMS132,135..RHD..4FC..ROY198709-198908

main58994-30060iGS131,MS135..RHD..4FC198908-199110

9017606022

main90176-06022

9054104079

main90541-04079

9166540616

main91665-40616

9166640618

main91666-40618

9353054012

main93530-54012

9354014012

main93540-14012

9354054010

main93540-54010

9356755016

main93567-55016

9616000500

main96160-00500

27 parts on this diagram · 4 diagrams in section
