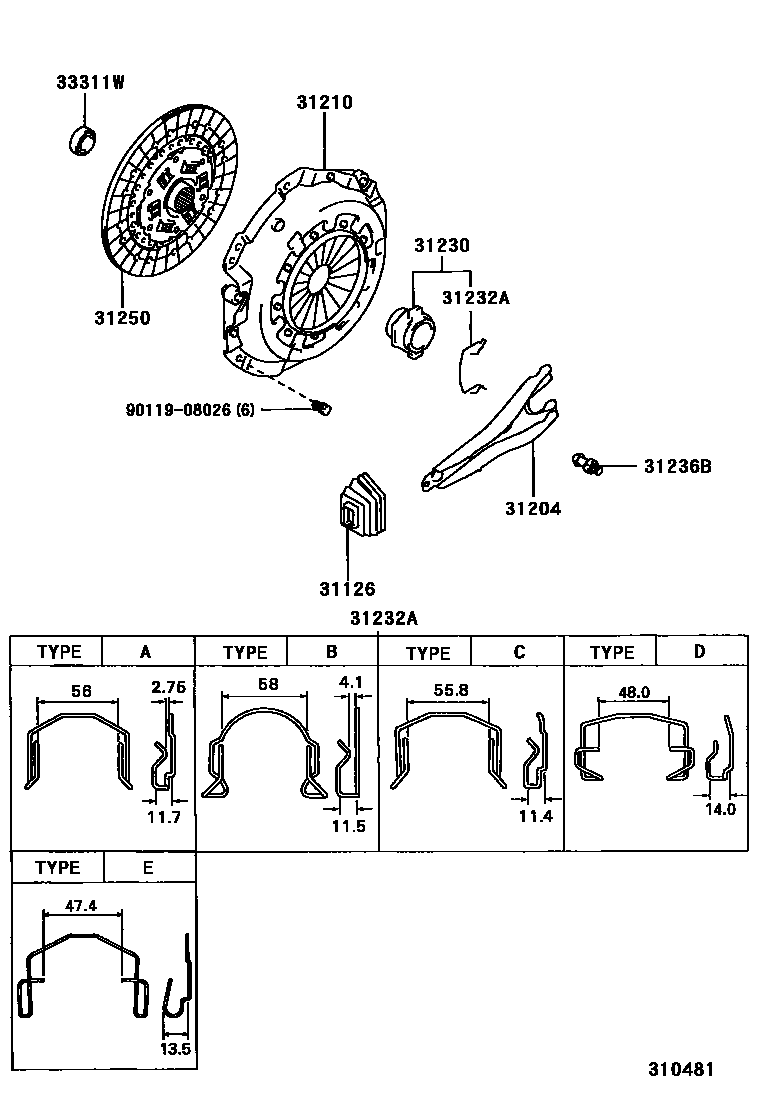

Toyota CROWN — CLUTCH & RELEASE FORK

31126BOOT, CLUTCH RELEASE FORK

main31126-20060iYS132199110-199512

main31126-20070iGS131,LS130..MTM199110-199512

main31126-22050iJZS133..5F199110-200104

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-20071iYS132199110-199512

main31204-22050iJZS133..5F199110-200104

main31204-35050iGS131,LS130..MTM199110-199512

31210COVER ASSY, CLUTCH

main31210-22100iGS131..G199110-199512

sub31210-22101

main31210-30250iLS130199110-199208

main31210-30251iLS130199208-199512

sub31210-35340

main31210-30260iJZS133..5F199110-199309

main31210-30261iJZS133..5F199309-200104

sub31210-30262

main31210-35090iYS132199110-199512

31230BEARING ASSY, CLUTCH RELEASE

main31230-22100iJZS133..5F199110-200104

sub31230-22101

main31230-35070iLS130199110-199512

sub31230-35071

main31230-35090iGS131,YS132..MTM199110-199512

sub31230-35091

31232ACLIP, RELEASE BEARING HUB

main31232-22020iJZS133..5F199110-200104

TYPE E:REFER TO ILLUSTRATION

main31232-22030iJZS133..5F199110-199308

TYPE D:REFER TO ILLUSTRATION

main31232-35020iGS131,LS130,YS132..MTM199110-199512

TYPE A:REFER TO ILLUSTRATION

main31232-35030iLS130199110-199512

TYPE B:REFER TO ILLUSTRATION

main31232-35040iGS131,YS132..MTM199110-199512

TYPE C:REFER TO ILLUSTRATION

31236BSUPPORT, RELEASE FORK

main31236-14010iJZS133..5F199110-200104

main31236-30060iGS131,LS130,YS132..MTM199110-199512

31250DISC ASSY, CLUTCH

main31250-20240iYS132199505-199512

sub31250-20241

main31250-22231iGS131..G199110-199512

sub31250-22360

main31250-25122iYS132199110-199505

main31250-30390iJZS133..5F199110-199901

main31250-30391iJZS133..G199901-200104

main31250-35190iLS130199110-199505

main31250-35221iLS130199505-199512

sub31250-35222

33311WBEARING (FOR INPUT SHAFT)

main90363-12002iJZS133,LS130,YS132..MTM199110-200104

sub90363-12024

main90363-12003iGS131..G199110-199512

9011908026

main90119-08026

9 parts on this diagram · 1 diagram in section
