Toyota CROWN — CARBURETOR ASSEMBLY

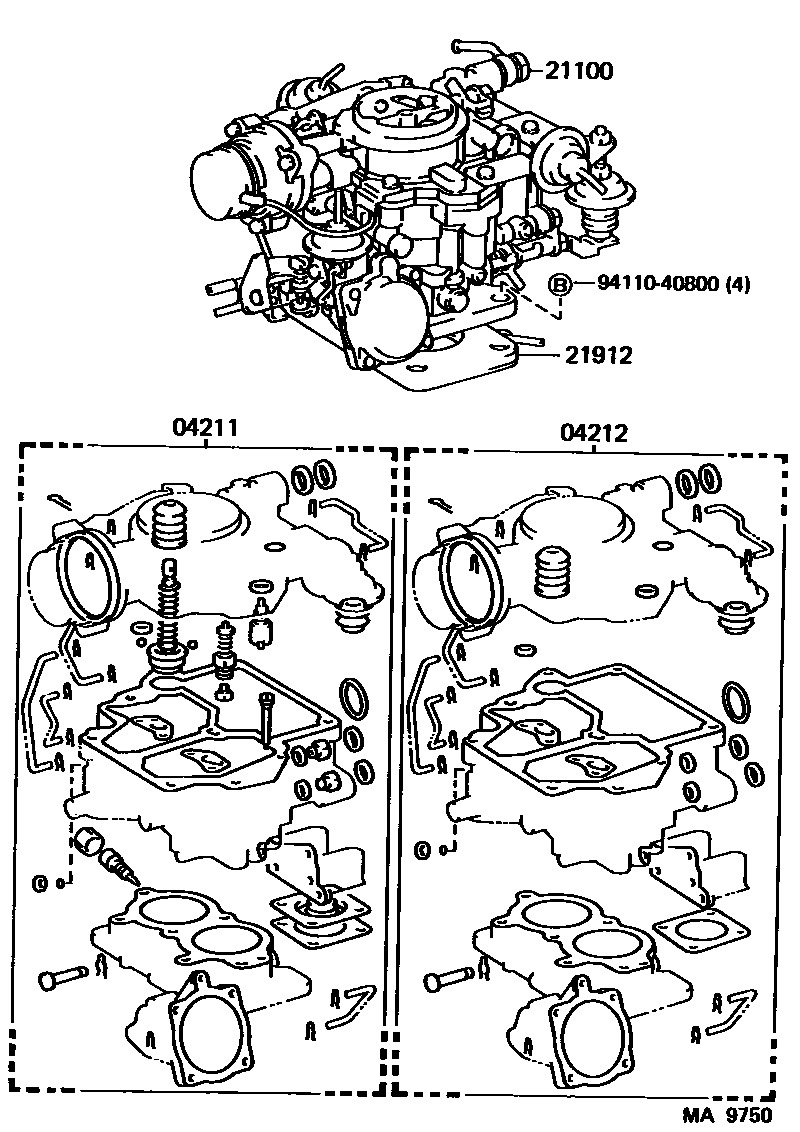

Parts diagram

04211CARBURETOR KIT

main04211-43030i198709-199110

main04211-43040i198709-199110

main04211-73210i198709-199003

main04211-73211i199003-199110

04212GASKET KIT, CARBURETOR

main04212-43010i198709-199110

main04212-73061i198910-199003

main04212-73062i199003-199110

main04212-73080i198709-198910

21100CARBURETOR ASSY

main21100-43050i198709-199110

main21100-43060i198709-199110

main21100-73280i198709-199110

21912INSULATOR, CARBURETOR HEAT

main21912-45011i198709-199110

main21912-72010i198709-198912

main21912-72011i198912-199110

9411040800

main94110-40800

5 parts on this diagram · 2 diagrams in section

CARBURETOR ASSEMBLY for Toyota CROWN

This section contains 5 genuine Toyota parts for the CARBURETOR ASSEMBLY system of the Toyota CROWN. Key components include: CARBURETOR KIT, GASKET KIT, CARBURETOR, CARBURETOR ASSY, INSULATOR, CARBURETOR HEAT.
