Toyota CROWN — CARBURETOR ASSEMBLY

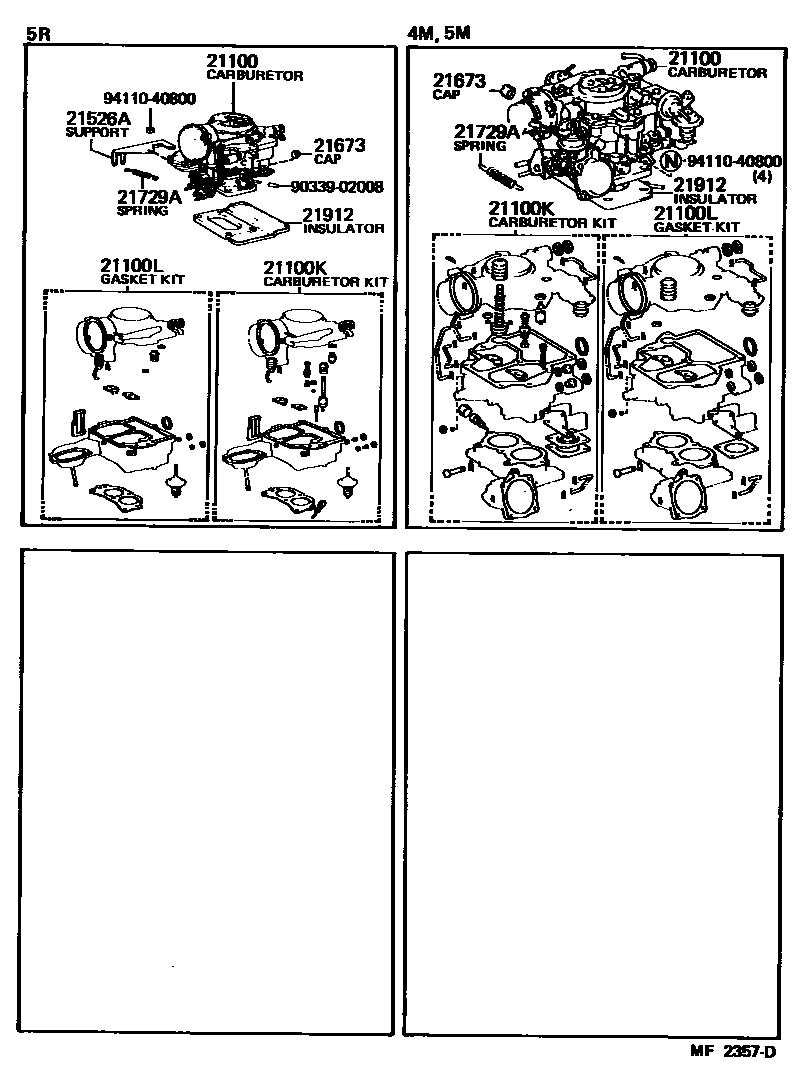

Parts diagram

21100CARBURETOR ASSY

main21100-43010i198008-198307

main21100-43020i198008-198307

main21100-44390i197909-198108

main21100-44400i197909-198008

main21100-44420i198108-198307

main21100-45290i197909-198008

main21100-45300i197909-198008

main21100-45310i197909-198008

21100KCARBURETOR KIT

main04211-43010i198008-198307

main04211-44014i197909-198307

main04211-44070i197909-198008

main04211-45170i197909-198008

main04211-45180i197909-198008

21100LGASKET KIT, CARBURETOR

main04212-44013i197909-198307

main04212-45023i198008-198307

main04212-45031i197909-198008

21526ASUPPORT, BACK SPRING

main21926-44050i197909-198307

21673CAP, IDLE LIMIT

main21673-36010i197909-198005

main21673-38020i197909-198307

21729ASPRING, 1ST THROTTLE BACK

21912INSULATOR, CARBURETOR HEAT

main21912-44030i197909-198307

main21912-45011i197909-198307

9033902008

main90339-02008

9411040800

main94110-40800

9 parts on this diagram · 1 diagram in section

CARBURETOR ASSEMBLY for Toyota CROWN

This section contains 9 genuine Toyota parts for the CARBURETOR ASSEMBLY system of the Toyota CROWN. Key components include: CARBURETOR ASSY, CARBURETOR KIT, GASKET KIT, CARBURETOR, SUPPORT, BACK SPRING, CAP, IDLE LIMIT.
