Toyota CROWN — BACK UP LAMP

81670LAMP ASSY, BACK-UP, RH

main81670-30100i198709-198908

main81670-30101i198908-199110

81670BBULB(FOR BACK-UP LAMP)

main90981-11039×2i198709-199110

12V 16W

81671LENS, BACK-UP LAMP, RH

main81671-30100i198709-198908

main81671-30101i198908-199110

81675SOCKET & WIRE, BACK-UP LAMP

main81675-30100×2i198709-198908

main81675-30101×2i198908-199110

81680LAMP ASSY, BACK UP, LH

main81680-30060i198709-198908

main81680-30061i198908-199110

81681LENS, BACK-UP LAMP, LH

main81681-30060i198709-198908

main81681-30061i198908-199110

9016740012

main90167-40012

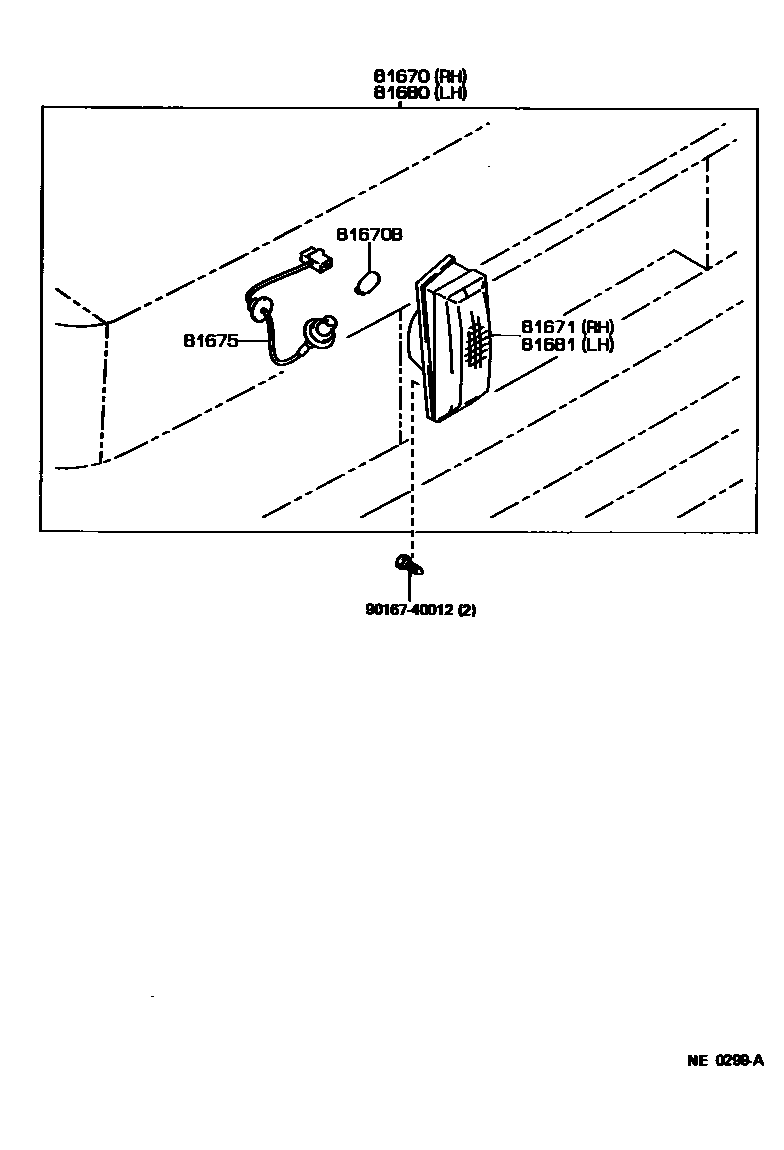

7 parts on this diagram · 1 diagram in section

BACK UP LAMP for Toyota CROWN

This section contains 7 genuine Toyota parts for the BACK UP LAMP system of the Toyota CROWN. Key components include: LAMP ASSY, BACK-UP, RH, BULB(FOR BACK-UP LAMP), LENS, BACK-UP LAMP, RH, SOCKET & WIRE, BACK-UP LAMP, LAMP ASSY, BACK UP, LH.
