Toyota CROWN — AUTOMATIC LIGHT CONTROL SYSTEM (CONLIGHT)

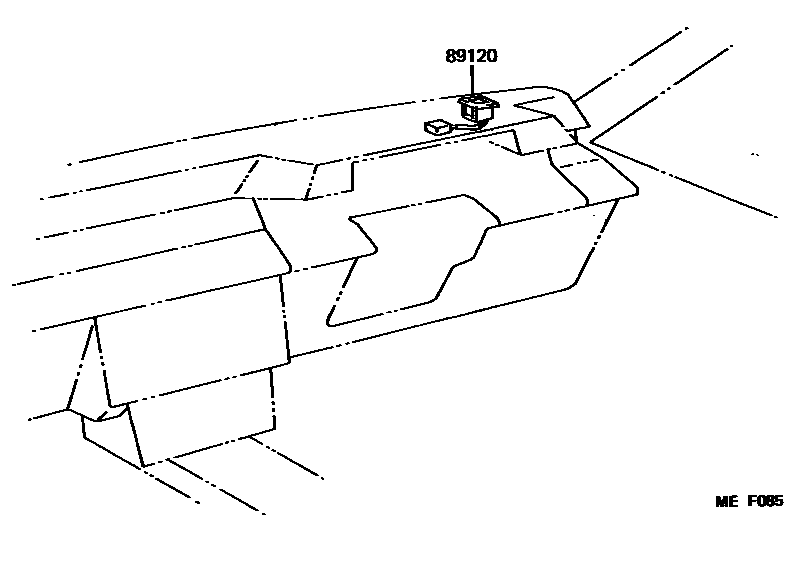

89120SENSOR, AUTOMATIC LIGHT CONTROL

main89120-30030-02iMS122,125..RHD..ROY198408-198509

DEEP MAROON,RED/MAROON,TRIM3#

main89120-30030-04iMS122,125..RHD..ROY198408-198509

BLUE,BLUE,TRIM8#

main89120-30030-05iMS122,125..RHD..ROY198408-198509

BEIGE,BEIGE,TRIM4#

main89120-30030-06iMS122,125..RHD..ROY198509-198708

BROWN,BROWN,TRIM4#

main89120-30030-12iMS122,125..RHD..ROY198509-198708

MAROON,MAROON,TRIM3#

main89120-30040-02iMS122,125..LHD..ROY..GEN198408-198509

DEEP MAROON,RED/MAROON,TRIM3#

main89120-30040-04iMS122,125..LHD..ROY..GEN198408-198509

BLUE,BLUE,TRIM8#

main89120-30040-05iMS122,125..LHD..ROY..GEN198408-198509

BEIGE,BEIGE,TRIM4#

main89120-30040-06iMS122,125..LHD..ROY198509-198708

BROWN,BROWN,TRIM4#

main89120-30040-12iMS122,125..LHD..ROY198509-198708

MAROON,MAROON,TRIM3#

1 parts on this diagram · 1 diagram in section
