Toyota CROWN — ASH RECEPTACLE

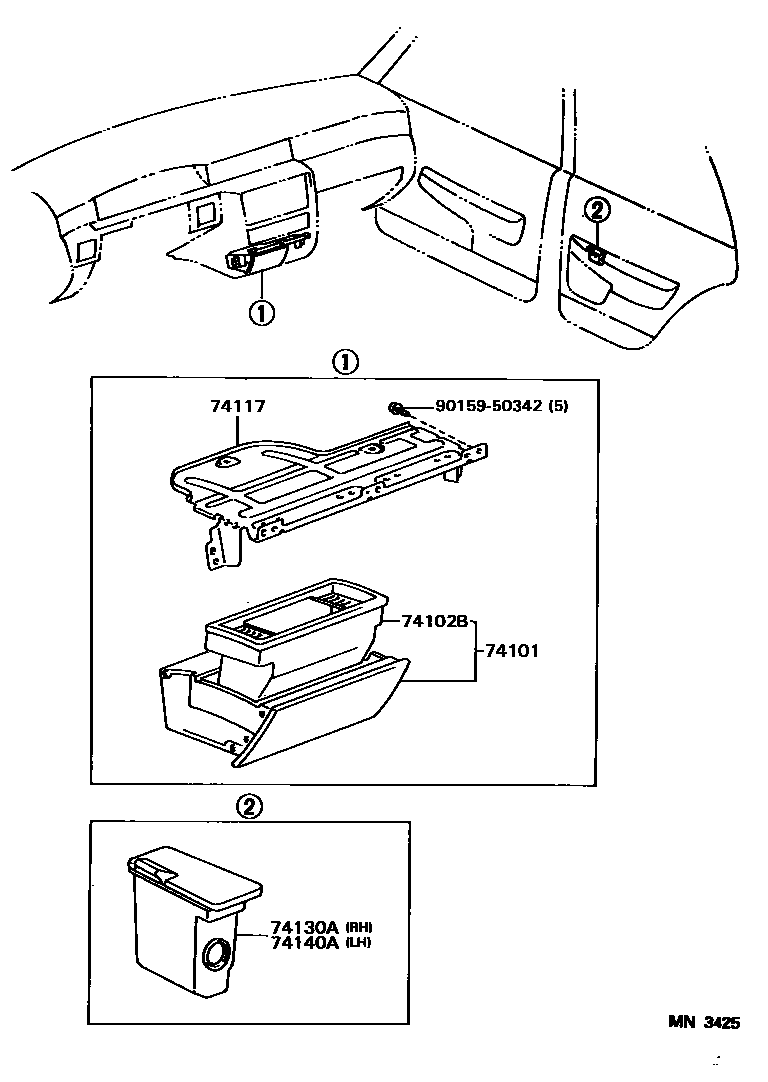

Parts diagram

74101RECEPTACLE SUB-ASSY, FRONT ASH

main74101-30070i199512-199707

main74101-30080i199512

main74101-30110i199707

74102BBOX SUB-ASSY, FRONT ASH RECEPTACLE

main74102-30160i199512

74117BRACKET, FRONT ASH RECEPTACLE MOUNTING

main74117-30030i199512

74130ARECEPTACLE ASSY, REAR ASH, RH

main74130-30250i199512-199707

main74130-30270i199512-200108

main74130-30290i199707-200108

74140ARECEPTACLE ASSY, REAR ASH, LH

main74140-30110i199512-199707

main74140-30130i199512-200108

main74140-30150i199707-200108

9015950342

main90159-50342

6 parts on this diagram · 1 diagram in section

ASH RECEPTACLE for Toyota CROWN

This section contains 6 genuine Toyota parts for the ASH RECEPTACLE system of the Toyota CROWN. Key components include: RECEPTACLE SUB-ASSY, FRONT ASH, BOX SUB-ASSY, FRONT ASH RECEPTACLE, BRACKET, FRONT ASH RECEPTACLE MOUNTING, RECEPTACLE ASSY, REAR ASH, RH, RECEPTACLE ASSY, REAR ASH, LH.
