Toyota CROWN — ASH RECEPTACLE
74102BBOX SUB-ASSY, FRONT ASH RECEPTACLE
DK.BLUE,TRIM8#
DK. BLUE,TRIM8#
74104ARETAINER SUB-ASSY, FRONT ASH RECEPTACLE
74108RETAINER SUB-ASSY, REAR ASH RECEPTACLE
DK.BLUE,TRIM8#
74110ERECEPTACLE ASSY, FRONT ASH
SHADOW GRAY,TRIM1#
QUARTZ,TRIM4#
main74110-30120-J0iGS131..RHD;JZS133..4FC;JZS133..5F..(DLX,ROY);GS131,JZS133,LS130,YS132..LHD..MTM..(B,G)199110-200104
DK.BLUE,TRIM8#
74130RECEPTACLE ASSY, REAR ASH
DARK BLUE,TRIM8#
DK.BLUE,TRIM8#; TAXI SPEC FOR SAUDI-*104,DK.BLUE,TRIM8#
74130ARECEPTACLE ASSY, REAR ASH, RH
SHADOW GRAY,TRIM1#
QUARTZ,TRIM4#
main74130-30240-J0iGS131..RHD;JZS133..4FC;JZS133..5F..(DLX,ROY);GS131,JZS133..LHD..5F..G199110-200104
DK.BLUE,TRIM8#
74135ARETAINER, REAR ASH RECEPTACLE, NO.1
DK.BLUE,TRIM8#; TAXI SPEC FOR SAUDI-*104,DK.BLUE,TRIM8#
74140ARECEPTACLE ASSY, REAR ASH, LH
SHADOW GRAY,TRIM1#
QUARTZ,TRIM4#
main74140-30100-J0iGS131..RHD;JZS133..4FC;JZS133..5F..(DLX,ROY);GS131,JZS133..LHD..5F..G199110-200104
DK.BLUE,TRIM8#
74239AHOLDER, REAR ASH RECEPTACLE
9353054030
main93530-54030
9356755014
main93567-55014
9356755016
main93567-55016

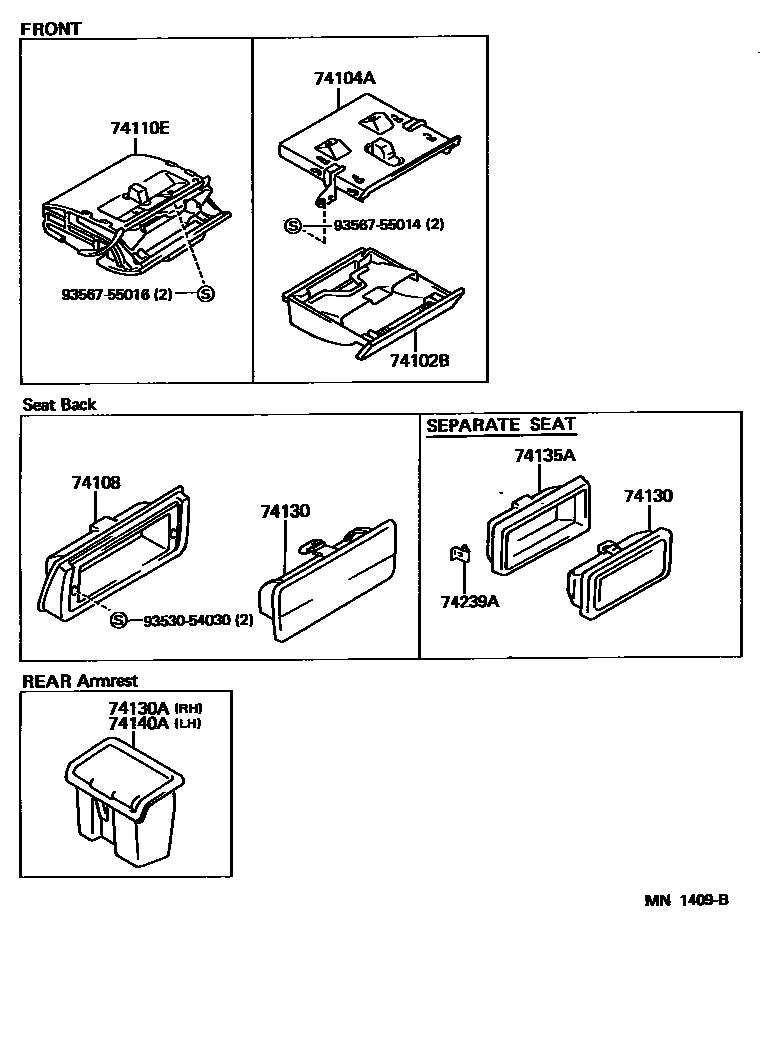

12 parts on this diagram · 1 diagram in section
ASH RECEPTACLE for Toyota CROWN
This section contains 12 genuine Toyota parts for the ASH RECEPTACLE system of the Toyota CROWN. Key components include: BOX SUB-ASSY, FRONT ASH RECEPTACLE, RETAINER SUB-ASSY, FRONT ASH RECEPTACLE, RETAINER SUB-ASSY, REAR ASH RECEPTACLE, RECEPTACLE ASSY, FRONT ASH, RECEPTACLE ASSY, REAR ASH.
