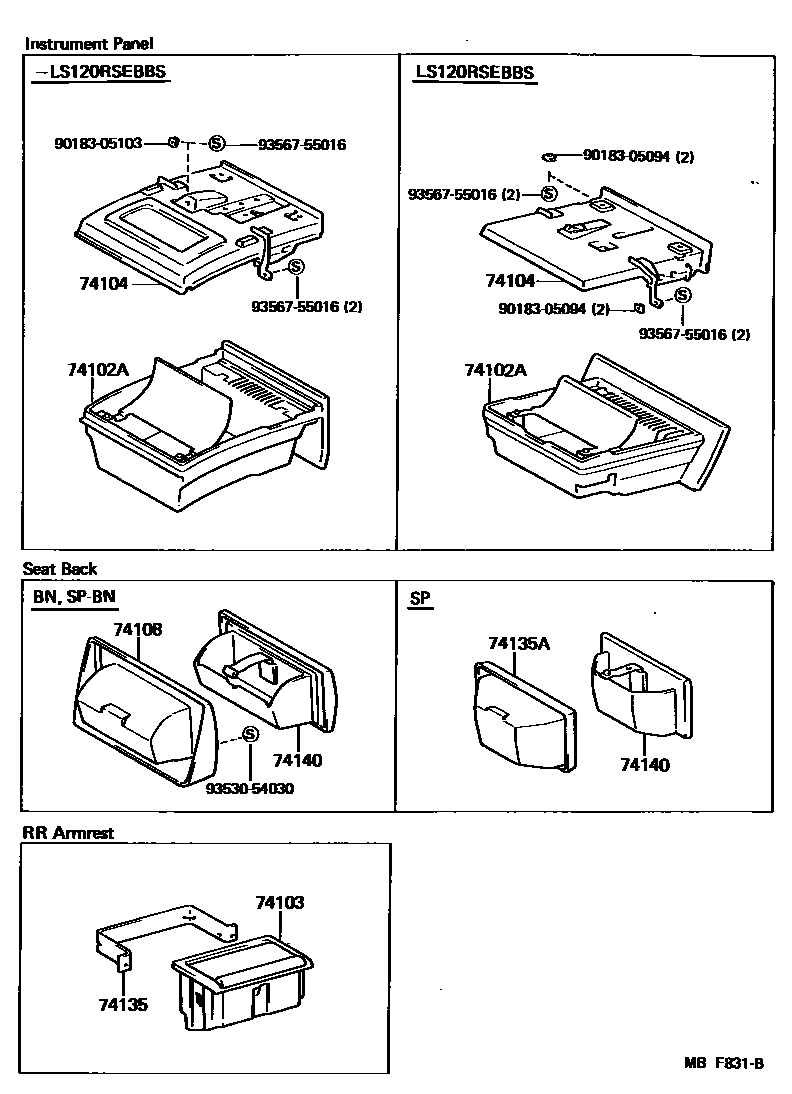

Toyota CROWN — ASH RECEPTACLE
74102ARECEPTACLE ASSY, FRONT ASH
BLUE,BLUE,TRIM8#
DEEP MAROON,RED/MAROON,TRIM3#
BLUE,BLUE,TRIM8#
BEIGE,BEIGE,TRIM4#
BROWN,BROWN,TRIM4#
MAROON,MAROON,TRIM3#
74103RECEPTACLE SUB-ASSY, ASH, NO.1
RH,DEEP MAROON,RED/MAROON,TRIM3#
RH,*PW,BLUE,BLUE,TRIM8#; RH,BLUE,BLUE,TRIM8#
RH,BEIGE,BEIGE,TRIM4#
RH,*PW,BROWN,BROWN,TRIM4#; RH,BROWN,BROWN,TRIM4#
RH,MAROON,MAROON,TRIM3#
LH,DEEP MAROON,RED/MAROON,TRIM3#
LH,*PW,BLUE,BLUE,TRIM8#; LH,BLUE,BLUE,TRIM8#
LH,BEIGE,BEIGE,TRIM4#
LH,*PW,BROWN,BROWN,TRIM4#; LH,BROWN,BROWN,TRIM4#
LH,MAROON,MAROON,TRIM3#
74104RETAINER SUB-ASSY, ASH RECEPTACLE, NO.1
74108RETAINER SUB-ASSY, REAR ASH RECEPTACLE
BLUE,BLUE,TRIM8#
BEIGE,BEIGE,TRIM4#
BROWN,BROWN,TRIM4#
74135BRACKET, REAR ASH RECEPTACLE
74135ARETAINER, REAR ASH RECEPTACLE, NO.1
BLUE,BLUE,TRIM8#
BEIGE,BEIGE,TRIM4#
BROWN,SEPIA BROWN,TRIM4#; W/O *PW,BROWN,SEPIA BROWN,TRIM4#
74140RECEPTACLE ASSY, ASH(FOR SEAT)
BN,SP-BN,BLUE,BLUE,TRIM8#
BN,SP-BN,BEIGE,BEIGE,TRIM4#
SP-BN,BROWN,BROWN,TRIM4#
SP,BEIGE,BEIGE,TRIM4#
SP,BLUE,BLUE,TRIM8#
BROWN,BROWN,TRIM4#; W/O *PW,BROWN,BROWN,TRIM4#
9018305094
main90183-05094
9018305103
main90183-05103
9353054030
main93530-54030
9356755016
main93567-55016
11 parts on this diagram · 1 diagram in section
ASH RECEPTACLE for Toyota CROWN
This section contains 11 genuine Toyota parts for the ASH RECEPTACLE system of the Toyota CROWN. Key components include: RECEPTACLE ASSY, FRONT ASH, RECEPTACLE SUB-ASSY, ASH, NO.1, RETAINER SUB-ASSY, ASH RECEPTACLE, NO.1, RETAINER SUB-ASSY, REAR ASH RECEPTACLE, BRACKET, REAR ASH RECEPTACLE.
