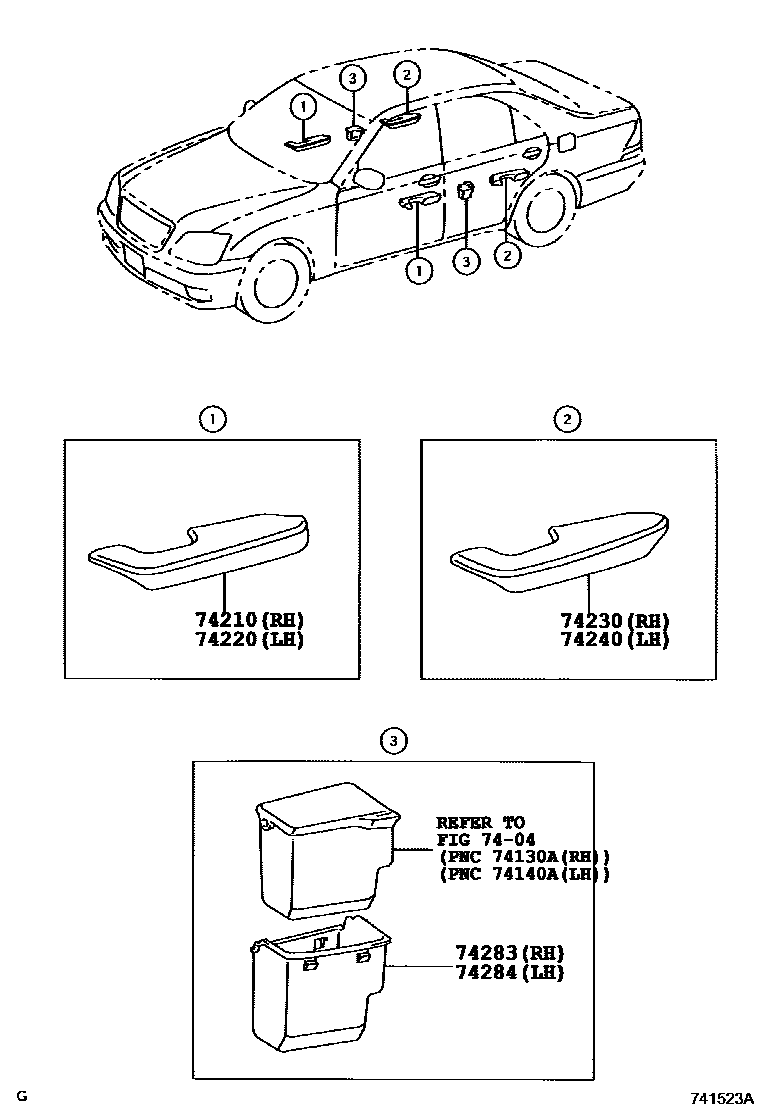

Toyota CROWN — ARMREST & VISOR

0001 1ARMREST 0002 1VISOR & ASSIST GRIP

7404

74210ARMREST ASSY, FRONT, RH

main74210-30180-A0iGRS182200411-200509

IVORY,TRIM0#

main74210-30180-B0iGRS182200411-200509

GRAY,TRIM1#

main74210-30180-B1iGRS182200509-200802

GRAY,TRIM1#

74220ARMREST ASSY, FRONT, LH

main74220-30140-A0iGRS182200509-200802

IVORY,TRIM0#

main74220-30140-B0iGRS182200411-200509

GRAY,TRIM1#

main74220-30140-B1iGRS182200509-200802

GRAY,TRIM1#

74230ARMREST ASSY, REAR, RH

main74250-30060-A0iGRS182200411-200509

IVORY,TRIM0#

main74250-30060-B0iGRS182200411-200509

GRAY,TRIM1#

main74250-30060-B1iGRS182200509-200802

GRAY,TRIM1#

74240ARMREST ASSY, REAR, LH

main74260-30060-A0iGRS182200411-200509

IVORY,TRIM0#

main74260-30060-B0iGRS182200411-200509

GRAY,TRIM1#

main74260-30060-B1iGRS182200509-200802

GRAY,TRIM1#

74283COVER, REAR DOOR ARMREST BASE, LOWER RH

main74283-30010iGRS182200411-200509

74284COVER, REAR DOOR ARMREST BASE, LOWER LH

main74284-30010iGRS182200411-200509

7 parts on this diagram · 2 diagrams in section
