Toyota CROWN — ARMREST & VISOR

0001 1 0002 1

74230APANEL ASSY, FRONT DOOR ARMREST BASE, RH

main74230-30150-A0iJZS175199909-200108

IVORY,TRIM0#

main74230-30150-B0iJZS175199909-200108

MEDIUM CHARCOAL,TRIM1#

main74230-30160-A0iJZS175200108-200312

IVORY,TRIM0#

main74230-30160-B0iJZS175200108-200312

MEDIUM CHARCOAL,TRIM1#

74240APANEL ASSY, FRONT DOOR ARMREST BASE, LH

main74240-30130-A0iJZS175200108-200312

IVORY,TRIM0#

main74240-30130-B0iJZS175199909-200108

MEDIUM CHARCOAL,TRIM1#

74270PANEL ASSY, REAR DOOR ARMREST BASE, RH

main74270-30080-A0iJZS175200108-200312

IVORY,TRIM0#

main74270-30080-B0iJZS175200108-200312

MEDIUM CHARCOAL,TRIM1#

74280PANEL ASSY, REAR DOOR ARMREST BASE, LH

main74280-30080-A0iJZS175199909-200108

IVORY,TRIM0#

main74280-30080-B0iJZS175199909-200108

MEDIUM CHARCOAL,TRIM1#

74620CGRIP ASSY, ASSIST, REAR RH

main74650-30090-B0iJZS175199909-200108

DK.CHARCOAL,TRIM1#

main74650-30090-E0iJZS175200108-200312

SANDAL WOOD,TRIM0#

74630CGRIP ASSY, DOOR ASSIST, RH

main74630-30150-B0iJZS175200108-200312

DK.CHARCOAL,TRIM1#

main74630-30150-E0iJZS175199909-200108

SANDAL WOOD,TRIM0#

74630EGRIP ASSY, ASSIST, REAR LH

main74660-30050-B0iJZS175199909-200108

DK.CHARCOAL,TRIM1#

main74660-30050-E0iJZS175199909-200108

SANDAL WOOD,TRIM0#

74640CGRIP ASSY, DOOR ASSIST, LH

main74640-30150-B0iJZS175199909-200108

DK.CHARCOAL,TRIM1#

main74640-30150-E0iJZS175200108-200312

SANDAL WOOD,TRIM0#

9015960281

main90159-60281

9018906030

main90189-06030

9046804160

main90468-04160

9356854514

main93568-54514

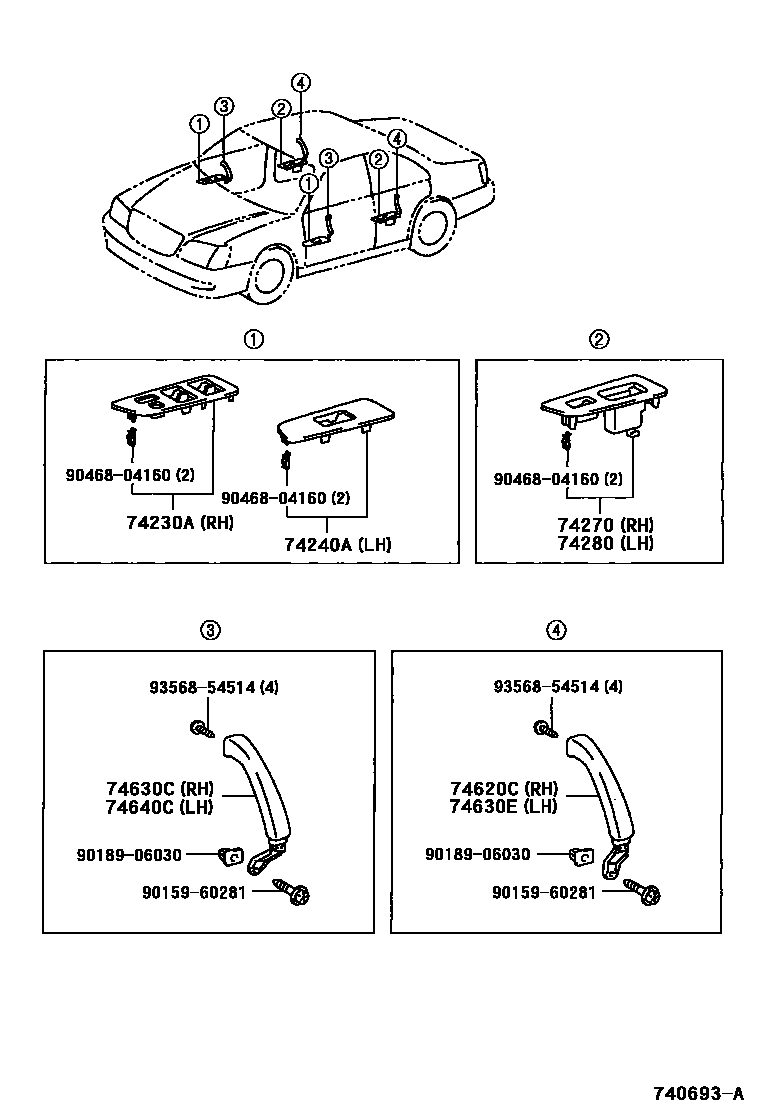

12 parts on this diagram · 2 diagrams in section
