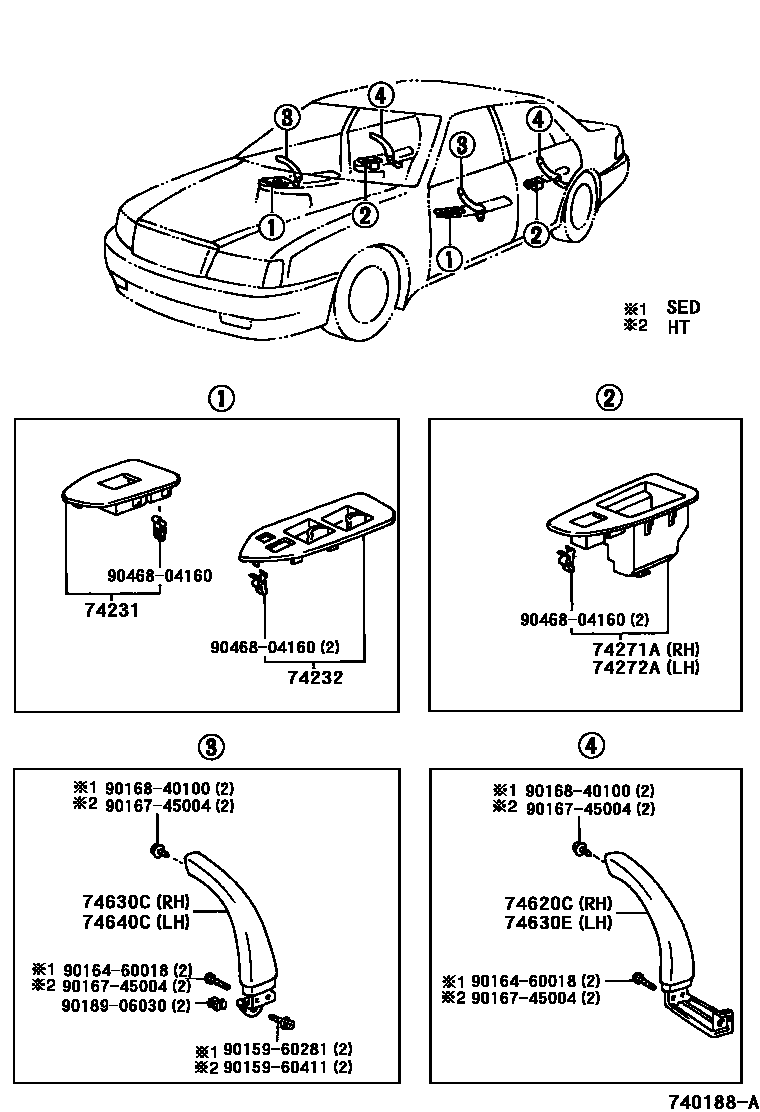

Toyota CROWN — ARMREST & VISOR

0001 1ARMREST 0002 1SUNVISOR

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74230-30090iJZS155..RHD199512-199707

main74230-30100iGS151199707-199808

main74230-30110iJZS155..LHD..ROY199512-199707

main74230-30120iJZS155..SPSAL199512

main74230-30130iJZS155..RHD199707

main74230-30140iJZS155..LHD..ROY199707

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74240-30070iJZS155..RHD199512-199707

main74240-30080iGS151199707-199808

main74240-30090iJZS155..LHD..ROY199512-199707

main74240-30100iJZS155..SPSAL199512

main74240-30110iJZS155..RHD199707

main74240-30120iJZS155..LHD..ROY199707

74271APANEL, REAR DOOR ARMREST BASE, UPPER RH

main74270-30040iJZS155..ROY199512-199707

main74270-30050iGS151,JZS155..ROYEX,SPSAL199512-200108

main74270-30070iJZS155..ROY199707-200108

74272APANEL, REAR DOOR ARMREST BASE, UPPER LH

main74280-30040iJZS155..ROY199512-199707

main74280-30050iGS151,JZS155..ROYEX,SPSAL199512-200108

main74280-30070iJZS155..ROY199707-200108

74620CGRIP ASSY, ASSIST, REAR RH

main74650-30070-B0iGS151,JZS155..HT199707-199909

DK.BLUE GRAY,TRIM1#

main74650-30070-E1iGS151,JZS155..HT199707-199909

ANTELOPE,TRIM4#

main74650-30080-B0iJZS155..SED199512-200108

DK.BLUE GRAY,TRIM1#

main74650-30080-E0iJZS155..SED199512-200108

ANTELOPE,TRIM4#

74630CGRIP ASSY, DOOR ASSIST, RH

main74630-30080-B0iGS151,JZS155..HT199707-199909

DK.BLUE GRAY,TRIM1#

main74630-30080-E1iGS151,JZS155..HT199707-199909

ANTELOPE,TRIM4#

main74630-30090-B0iJZS155..RHD..SED199512-199909

DK.BLUE GRAY,TRIM1#

main74630-30090-E0iJZS155..RHD..SED199512-199909

ANTELOPE,TRIM4#

main74630-30100-B0iJZS155..LHD199512-199707

DK.BLUE GRAY,TRIM1#

main74630-30100-E0iJZS155..LHD199512-199707

ANTELOPE,TRIM4#

main74630-30110-B0iJZS155..LHD199707-200108

DK.BLUE GRAY,TRIM1#

main74630-30110-E0iJZS155..LHD199707-200108

ANTELOPE,TRIM4#

74630EGRIP ASSY, ASSIST, REAR LH

main74660-30030-B0iGS151,JZS155..HT199707-199909

DK.BLUE GRAY,TRIM1#

main74660-30030-E1iGS151,JZS155..HT199707-199909

ANTELOPE,TRIM4#

main74660-30040-B0iJZS155..SED199512-200108

DK.BLUE GRAY,TRIM1#

main74660-30040-E0iJZS155..SED199512-200108

ANTELOPE,TRIM4#

74640CGRIP ASSY, DOOR ASSIST, LH

main74640-30080-B0iJZS155..RHD199512-199707

DK.BLUE GRAY,TRIM1#

main74640-30080-E0iJZS155..RHD199512-199707

ANTELOPE,TRIM4#

main74640-30090-B0iJZS155..LHD199512-200108

DK.BLUE GRAY,TRIM1#

main74640-30090-E0iJZS155..LHD199512-200108

ANTELOPE,TRIM4#

main74640-30100-B0iGS151,JZS155..HT199707-199909

DK.BLUE GRAY,TRIM1#

main74640-30100-E1iGS151,JZS155..HT199707-199909

ANTELOPE,TRIM4#

main74640-30130-B0iJZS155..RHD..SED199707-199909

DK.BLUE GRAY,TRIM1#

main74640-30130-E0iJZS155..RHD..SED199707-199909

ANTELOPE,TRIM4#

9015960281

main90159-60281

9015960411

main90159-60411

9016460018

main90164-60018

9016745004

main90167-45004

9016840100

main90168-40100

9018906030

main90189-06030

9046804160

main90468-04160

15 parts on this diagram · 2 diagrams in section
