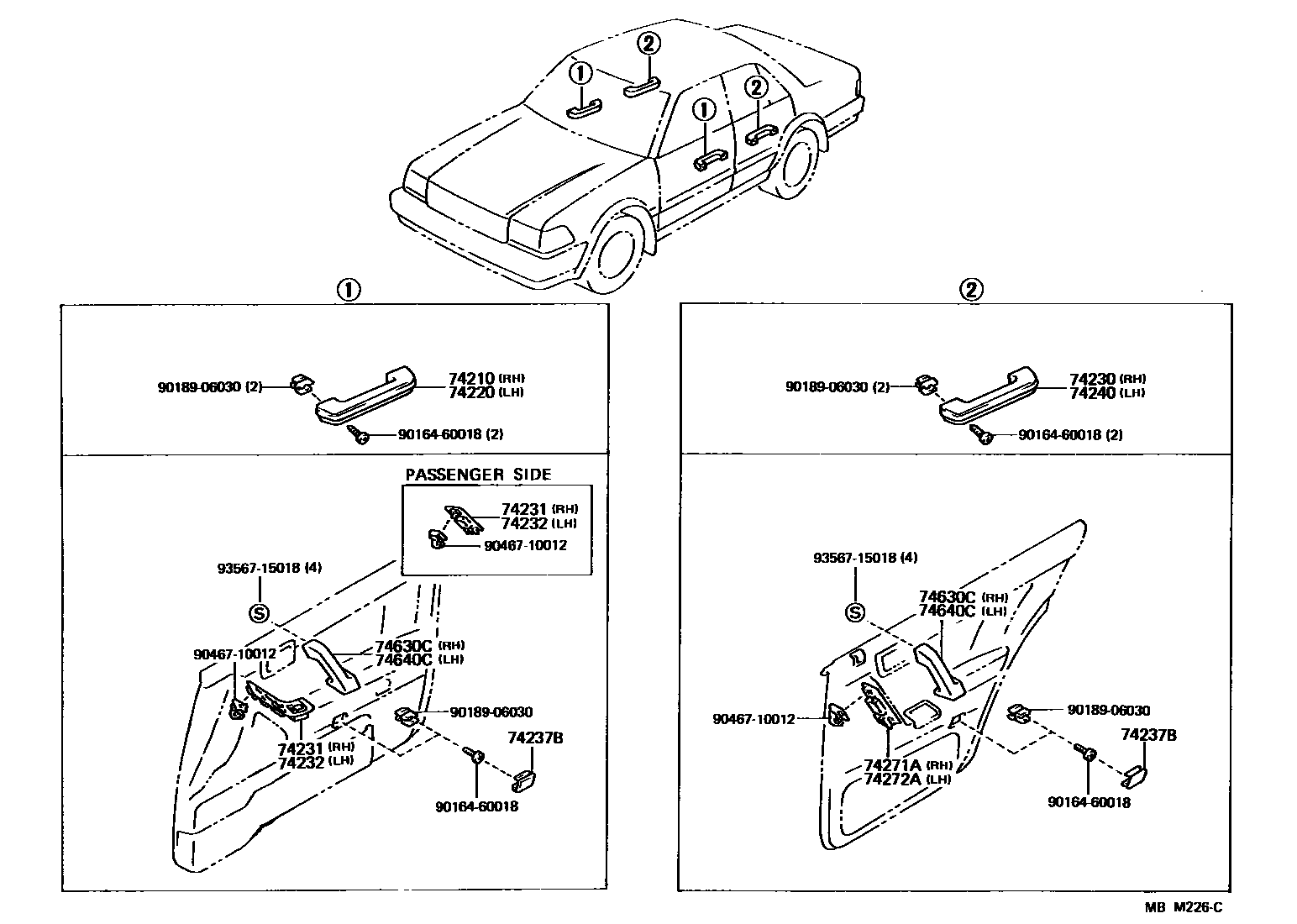

Toyota CROWN — ARMREST & VISOR

0001 1 0002 1 0003 1

74210ARMREST ASSY, FRONT, RH

main74210-22061-22iLS130,MS132,YS132..(DLX,STD)..GEN198709-198908

MAROON,TRIM3#

main74210-22061-24iMS132..DLX..GCC198709-199110

DARK BLUE,TRIM8#

74220ARMREST ASSY, FRONT, LH

main74210-22061-22iLS130,MS132,133,YS132..(4F,5F)..STD198908-199110

MAROON,TRIM3#

main74210-22061-24iMS132..DLX..GCC198709-199110

DARK BLUE,TRIM8#

74230ARMREST ASSY, REAR, RH

main74210-22061-22iLS130,MS132,YS132..(DLX,STD)..GEN198709-198908

MAROON,TRIM3#

main74210-22061-24iLS130,MS132,133,YS132..(DLX,STD)..GEN198709-199110

DARK BLUE,TRIM8#

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-30150-02iMS132..STD199008-199110

W(POWER WINDOW),MAROON,TRIM3#

main74231-30150-04iMS13#..LHD198709-198908

BLUE,TRIM8#

main74231-30150-06iGS131,MS13#..LHD..(ROY,SAL,SALEX)198709-199110

SABLE,TRIM4#

main74231-30160-02iMS133..SAL..GEN;GS131,MS132,135..RHD198709-199008

MAROON,TRIM3#

main74231-30160-04iMS132,135..RHD;MS133..SAL..GEN198709-199008

BLUE,TRIM8#

main74231-30160-06iMS13#..RHD..(ROY,SAL)198709-199110

SABLE,TRIM4#

main74231-30170-02iMS133..STD198908-199008

MAROON,TRIM3#

main74231-30170-04iMS133,135..RHD..(ROY,SAL)198908-199110

HONG KONG SPEC,BLUE,TRIM8#

main74231-30170-06iMS133,135..RHD..(ROY,SAL)198908-199110

HONG KONG SPEC,SABLE,TRIM4#

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74231-30150-02iMS132..STD198908-199008

W(POWER WINDOW),MAROON,TRIM3#

main74231-30150-04iMS13#..RHD198709-199110

BLUE,TRIM8#

main74231-30150-06iMS13#..RHD..(ROY,SAL)198709-199110

SABLE,TRIM4#

main74232-30150-02iMS132..STD199008-199110

W(POWER WINDOW),MAROON,TRIM3#

main74232-30150-04iMS132..STD199008-199110

W(POWER WINDOW),BLUE,TRIM8#

main74232-30150-06iGS131,MS13#..LHD..(ROY,SAL,SALEX)198709-199110

SABLE,TRIM4#

74237BCAP, DOOR ARMREST BASE

main74237-32010-02×4iGS131,MS13#..4FC,4HC,5F198908-199110

MAROON,TRIM3#

main74237-32010-04×4iMS133,135;GS131,MS132..LHD..(4FC,5F)198908-199110

DARK BLUE,TRIM8#

main74237-32010-06×4iMS132,135..ROY,SAL;GS131,MS133..SAL,SALEX198709-199110

SABLE,TRIM4#

74240ARMREST ASSY, REAR, LH

main74210-22061-22iMS132..DLX..GCC198709-199110

MAROON,TRIM3#

main74210-22061-24iMS132..DLX..GCC198709-199110

DARK BLUE,TRIM8#

74271APANEL, REAR DOOR ARMREST BASE, UPPER RH

main74271-30110-02iMS132;MS135..4FC..GEN198709-198908

MAROON,TRIM3#

main74271-30110-04iMS133,135..SED..(4FC,5F);GS131,MS132..LHD..(4FC,5F)199008-199110

BLUE,TRIM8#

main74271-30110-06iGS131,MS132..LHD..(ROY,SAL);MS133,135..SED..(4FC,5F)..(ROY,SAL)199008-199110

SABLE,TRIM4#

main74271-30120-02iGS131,MS135..RHD198908-199008

MAROON,TRIM3#

main74271-30120-04iMS135..RHD198908-199008

BLUE,TRIM8#

main74271-30120-06iMS135..RHD198908-199008

W(REAR POWER SEAT),SABLE,TRIM4#

main74271-30130-02iMS133,135..HT198709-199110

MAROON,TRIM3#

main74271-30130-04iMS133,135..HT198709-199110

BLUE,TRIM8#

main74271-30130-06iMS133,135..HT198709-199110

SABLE,TRIM4#

main74271-30140-02iMS135..GCC198709-198908

W(REAR POWER SEAT),MAROON,TRIM3#

main74271-30140-04iMS135..GCC198709-198908

W(REAR POWER SEAT),BLUE,TRIM8#

main74271-30140-06iMS135..GCC198709-198908

W(REAR POWER SEAT),SABLE,TRIM4#

74272APANEL, REAR DOOR ARMREST BASE, UPPER LH

main74272-30110-02iMS132..STD198908-199110

W(POWER WINDOW),MAROON,TRIM3#

main74272-30110-04iMS133..SED;GS131,MS132,135..LHD..(SED,WG)..(4FC,5F)198908-199008

BLUE,TRIM8#

main74272-30110-06iMS133..SAL;GS131,MS132,135..LHD..(SED,WG)..(ROY,SAL)198908-199008

SABLE,TRIM4#

main74272-30120-02iGS131;MS135..4HC198709-198908

MAROON,TRIM3#

main74272-30120-04iMS135..4HC198709-198908

BLUE,TRIM8#

main74272-30120-06iMS132,135..4FC..ROY..GEN199008-199110

W(REAR POWER SEAT),SABLE,TRIM4#

main74272-30130-02iMS133,135..HT198709-199110

MAROON,TRIM3#

main74272-30130-04iMS133,135..HT198709-199110

BLUE,TRIM8#

main74272-30130-06iMS133,135..HT198709-199110

SABLE,TRIM4#

main74272-30140-02iMS135..GCC198709-198908

W(REAR POWER SEAT),MAROON,TRIM3#

main74272-30140-04iMS135..GCC198709-198908

W(REAR POWER SEAT),BLUE,TRIM8#

main74272-30140-06iMS135..GCC198709-198908

W(REAR POWER SEAT),SABLE,TRIM4#

74630CGRIP ASSY, DOOR ASSIST, RH

main74630-30030-02iGS131,MS132,135..SED,WG198709-198908

MAROON,TRIM3#

main74630-30030-04iMS132,135..SED,WG198709-198908

BLUE,TRIM8#

main74630-30030-06iMS133..SAL;GS131,MS132,135..LHD..(SED,WG)..(ROY,SAL)198908-199008

SABLE,TRIM4#

main74630-30040-02iMS133,135..HT198709-199110

MAROON,TRIM3#,FRONT

main74630-30040-04iMS133,135..HT198709-199110

BLUE,TRIM8#,FRONT

main74630-30040-06iMS133,135..HT198709-199110

SABLE,TRIM4#,FRONT

main74630-30050-02iMS133,135..HT198709-199110

MAROON,TRIM3#,REAR

main74630-30050-04iMS133,135..HT198709-199110

BLUE,TRIM8#,REAR

main74630-30050-06iMS133,135..HT198709-199110

SABLE,TRIM4#,REAR

74640CGRIP ASSY, DOOR ASSIST, LH

main74640-30020-02iMS133..SED;GS131,MS132,135..LHD..(SED,WG)198908-199008

MAROON,TRIM3#

main74640-30020-04iMS133..SED;GS131,MS132,135..LHD..(SED,WG)198908-199008

BLUE,TRIM8#

main74640-30020-06iMS133..SAL;GS131,MS132,135..LHD..(SED,WG)..(ROY,SAL)198908-199008

SABLE,TRIM4#

main74640-30030-02iMS133,135..HT198709-199110

MAROON,TRIM3#,FRONT

main74640-30030-04iMS133,135..HT198709-199110

BLUE,TRIM8#,FRONT

main74640-30030-06iMS133,135..HT198709-199110

SABLE,TRIM4#,FRONT

main74640-30040-02iMS133,135..HT198709-199110

MAROON,TRIM3#,REAR

main74640-30040-04iMS133,135..HT198709-199110

BLUE,TRIM8#,REAR

main74640-30040-06iMS133,135..HT198709-199110

SABLE,TRIM4#,REAR

9016460018

main90164-60018

9018906030

main90189-06030

9046710012

main90467-10012

9356715018

main93567-15018

15 parts on this diagram · 3 diagrams in section
