Toyota CROWN — ANTENNA

0001 1 0002 1

85914RELAY, MOTOR ANTENNA CONTROL

main85914-30010iMS132,135..HT,SED;LS130,MS133,YS132..LHD198709-199110

86101CORD SUB-ASSY, ANTENNA

main86101-30280iLS130,MS132,133,YS132..DLX,STD198908-199110

FLOOR,RH

main86101-30280iGS131,LS130,MS132,135,YS132..SED198709-198908

FLOOR LH

main86101-30280iGS131,LS130,MS13#,YS132..SED198908-199110

FLLOR,RH

main86101-30300iMS133,135..HT198709-199110

ROOF SIDE

main86101-30340iGS131,LS130,MS13#,YS132..HT,SED198709-199110

INSTRUMENT PANEL

main86101-30350iMS133,135..HT198709-199110

W(MOON ROOF),ROOF SIDE

main86101-91710iMS132..WG198709-199110

ROOF SIDE

main86101-91711iMS132..WG198709-199110

INSTRUMENT PANEL

86105AHOSE SUB-ASSY, ANTENNA

main86105-30010iGS131,LS130,MS13#,YS132..SED,WG198709-199110

main86105-30020iMS133,135..HT198709-199110

main90446-09011iLS130,YS132198709-199110

86300ANTENNA ASSY, W/HOLDER

main86300-30360iGS131,MS13#..SED..(ROY,SAL)198709-199110

main86300-30360iMS132..DLX,STD;LS130,YS132..LHD198709-199110

POWER ANTENNA

main86300-30370iLS130,YS132..LHD198709-199110

MANUAL ANTENNA

main86300-30440iMS133,135..HT198709-199110

main86300-91706iMS132..WG198709-198808

main86300-91709iMS132..WG198808-199110

86309APOLE SUB-ASSY, MOTOR ANTENNA

main86309-30050iMS132,135..SED;LS130,YS132..LHD198709-199110

main86309-30060iMS133,135..HT198709-199110

86337ROD & PIPE, SEALED W/CABLE

main86337-30360iGS131,LS130,MS13#,YS132..HT,SED198709-198908

86396NUT, ANTENNA

main86396-12020iLS130,MS132,133,YS132..DLX,STD198709-199110

9011906122

main90119-06122

9041307002

main90413-07002

9048026019

main90480-26019

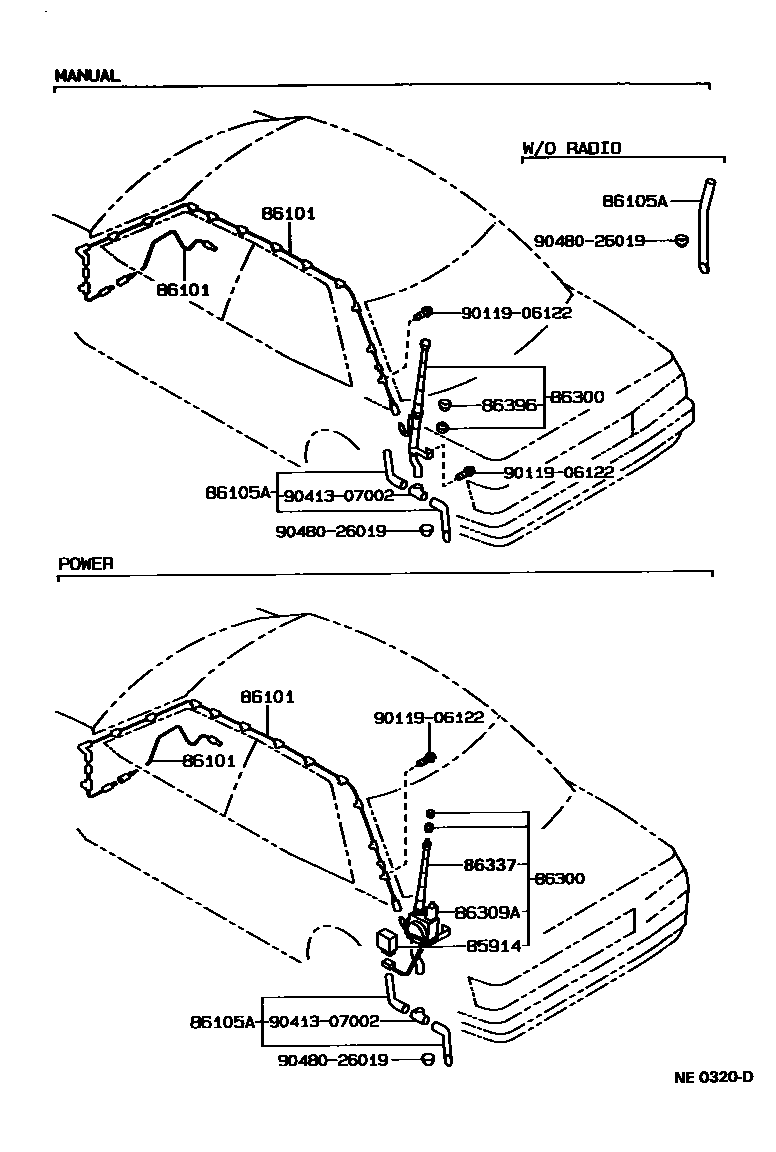

10 parts on this diagram · 2 diagrams in section
