Toyota CROWN — ANTENNA

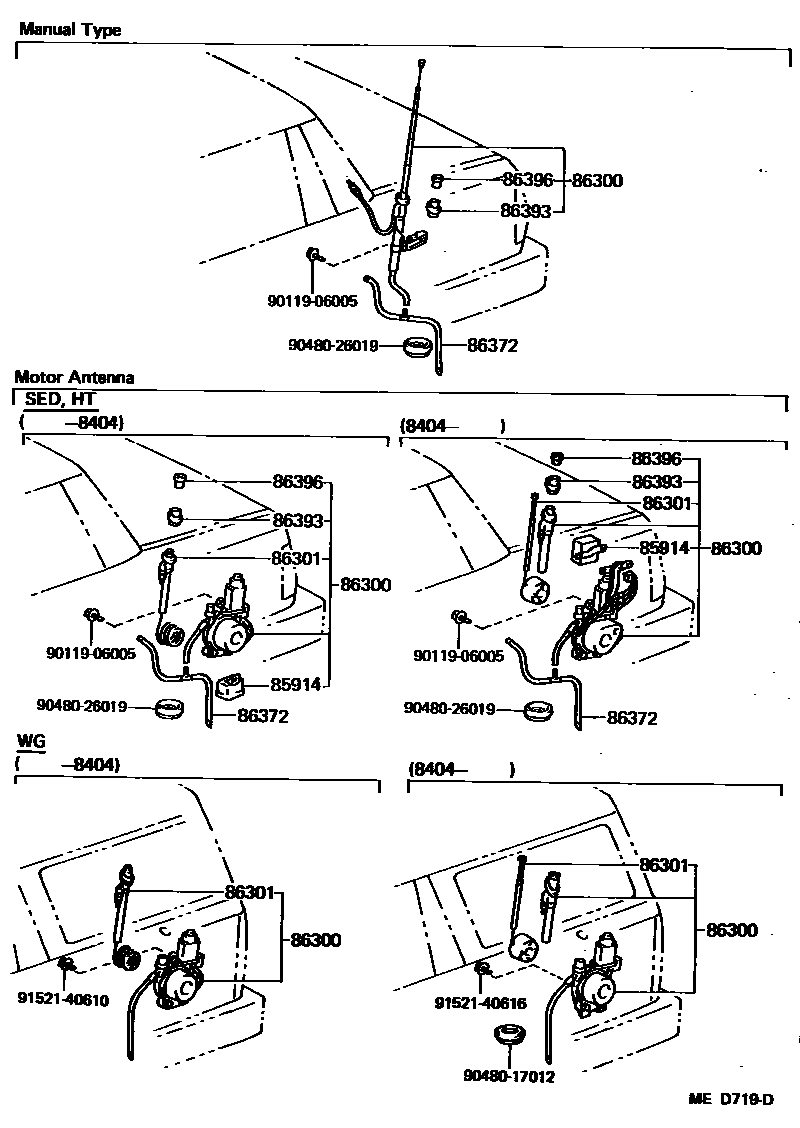

Parts diagram

85914RELAY, MOTOR ANTENNA CONTROL

main85914-14020i198308-198708

86300ANTENNA ASSY, W/HOLDER

main86300-30250i198308-198708

main86300-30340i198308-198708

W/MOTOR ANTENNA

main86300-30350i198509-198708

main86300-91705i198308-198708

86301POLE SUB-ASSY, ANTENNA

main86301-30340i198308-198404

main86301-91705i198308-198404

main86353-30340i198404-198708

main86353-91705i198404-198708

86372TUBE, ANTENNA VINYL

main86105-30010i198308-198708

main86105-30020i198509-198708

86393ORNAMENT, ANTENNA

main86392-30010i198308-198708

main86392-30020i198308-198708

W/MOTOR ANTENNA

main86392-30030i198509-198708

86396NUT, ANTENNA

main86396-12020i198308-198708

main86396-30020i198308-198708

W/MOTOR ANTENNA

main86396-30030i198509-198708

9011906005

main90119-06005

9048017012

main90480-17012

9048026019

main90480-26019

9152140610

main91521-40610

9152140616

main91521-40616

11 parts on this diagram · 2 diagrams in section

ANTENNA for Toyota CROWN

This section contains 14 genuine Toyota parts for the ANTENNA system of the Toyota CROWN. Key components include: RELAY, MOTOR ANTENNA CONTROL, CORD SUB-ASSY, ANTENNA, ANTENNA ASSY, W/HOLDER, POLE SUB-ASSY, ANTENNA, TUBE, ANTENNA VINYL.
