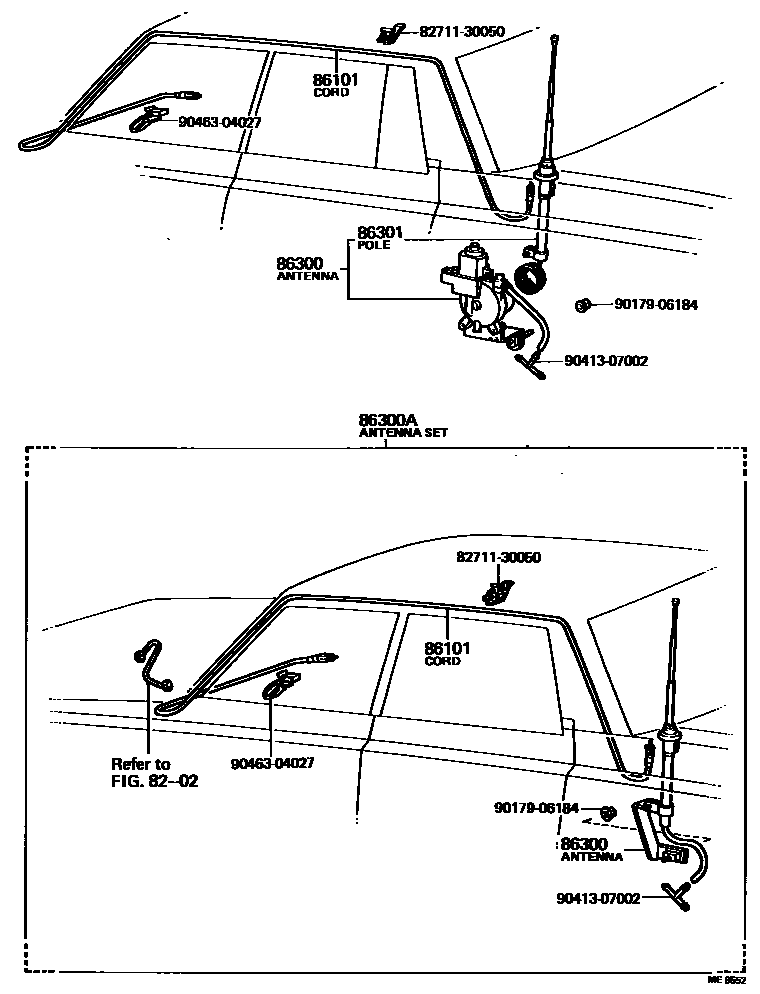

Toyota CROWN — ANTENNA

8202WIRING & CLAMP

→ Go to FIG 82-02

86101CORD SUB-ASSY, ANTENNA

main86101-30110i197909-198307

main86101-91702i197909-198307

86300ANTENNA ASSY, W/HOLDER

main86300-30170i197909-198307

MANUAL ANTENNA

main86300-30181i197909-197912

MOTOR ANTENNA

main86300-30221i197912-198307

MOTOR ANTENNA

main86300-91701i197909-197912

MOTOR ANTENNA

main86300-91702i197909-198307

MANUAL ANTENNA

main86300-91704i197912-198307

MOTOR ANTENNA

86300AANTENNA SET

main86300-39055i197909-198307

MANUAL ANTENNA

main86300-39065i197909-198307

MANUAL ANTENNA

86301POLE SUB-ASSY, ANTENNA

main86301-30181i197909-197912

MOTOR ANTENNA

main86301-30221i197912-198307

MOTOR ANTENNA

main86301-91701i197909-197912

MOTOR ANTENNA

main86301-91704i197912-198307

MOTOR ANTENNA

8271130050WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-30050

9017906184

main90179-06184

9041307002

main90413-07002

9046304027

main90463-04027

9 parts on this diagram · 2 diagrams in section

ANTENNA for Toyota CROWN

This section contains 14 genuine Toyota parts for the ANTENNA system of the Toyota CROWN. Key components include: WIRING & CLAMP, CORD SUB-ASSY, ANTENNA, ANTENNA ASSY, W/HOLDER, ANTENNA SET, POLE SUB-ASSY, ANTENNA.
