Toyota CROWN — AIR PUMP

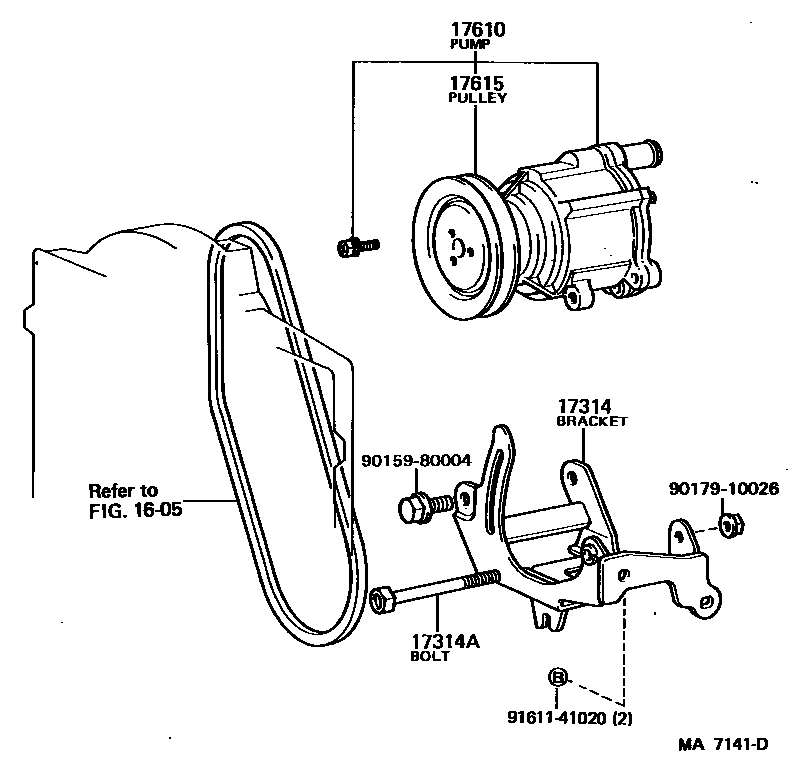

Parts diagram

1605V-BELT

→ Go to FIG 16-05

17314BRACKET, AIR PUMP

main17314-41031i198308-198502

main17314-43010i198502-198509

17314ABOLT, HEXAGON(FOR AIR PUMP BRACKET SETTING)

main90110-10001i198308-198509

17610PUMP ASSY, AIR

main17610-45031i198308-198509

17615PULLEY(FOR AIR PUMP)

main17615-41020i198308-198509

9015980004

main90159-80004

9017910026

main90179-10026

9161141020

main91611-41020

8 parts on this diagram · 1 diagram in section

AIR PUMP for Toyota CROWN

This section contains 8 genuine Toyota parts for the AIR PUMP system of the Toyota CROWN. Key components include: V-BELT, BRACKET, AIR PUMP, BOLT, HEXAGON(FOR AIR PUMP BRACKET SETTING), PUMP ASSY, AIR, PULLEY(FOR AIR PUMP).
