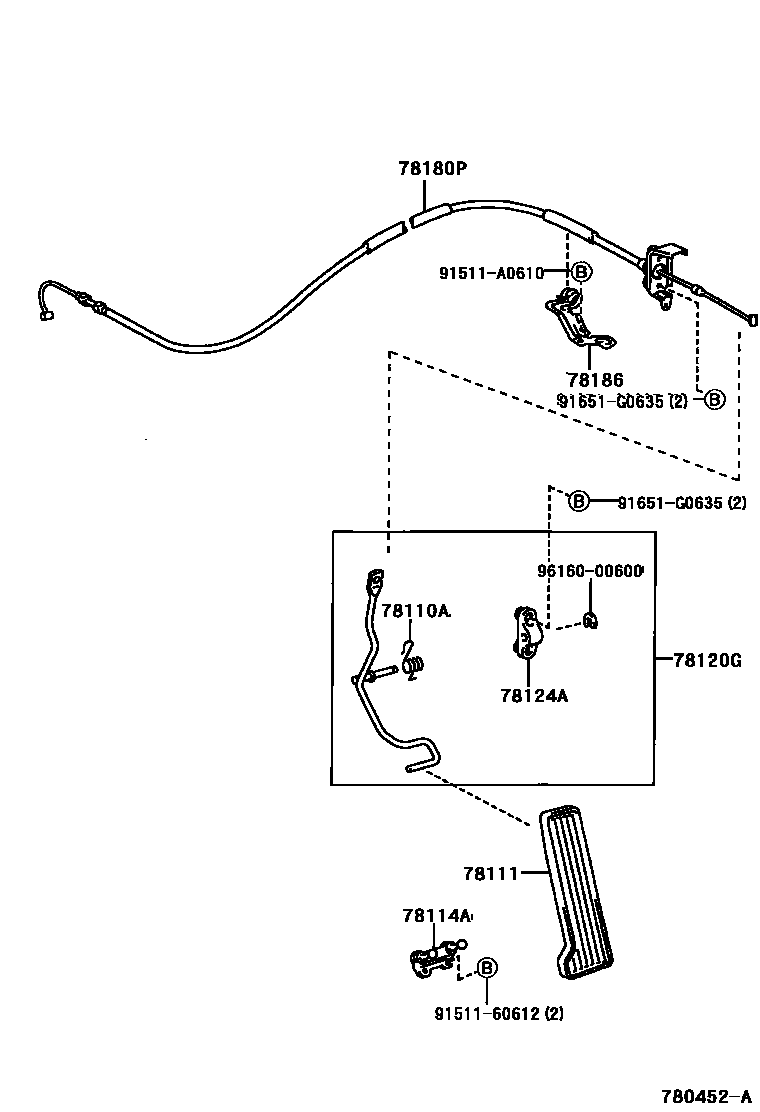

Toyota CROWN — ACCELERATOR LINK

78110ASPRING (FOR ACCELERATOR PEDAL ROD)

main78214-50010iJZS175199909-200108

78111PEDAL, ACCELERATOR

main78111-30081iJZS175199909-200108

78114ABRACKET, ACCELERATOR PEDAL SUPPORT

main78114-30070iJZS175199909-200108

78120GROD ASSY, ACCELERATOR PEDAL

main78120-3A200iJZS175199909-200108

main78120-3A201iJZS175200108-200312

78124ABRACKET, ACCELERATOR PEDAL ROD

main78124-50020iJZS175199909-200108

78180PCABLE ASSY, ACCELERATOR CONTROL

main78180-3A740iJZS175199909-200108

78186SUPPORT, ACCELERATOR CONTROL CABLE, NO.1

main78186-30160iJZS175199909-200108

9151160612

main91511-60612

91511A0610

main91511-A0610

91651G0635

main91651-G0635

9616000600

main96160-00600

11 parts on this diagram · 1 diagram in section
