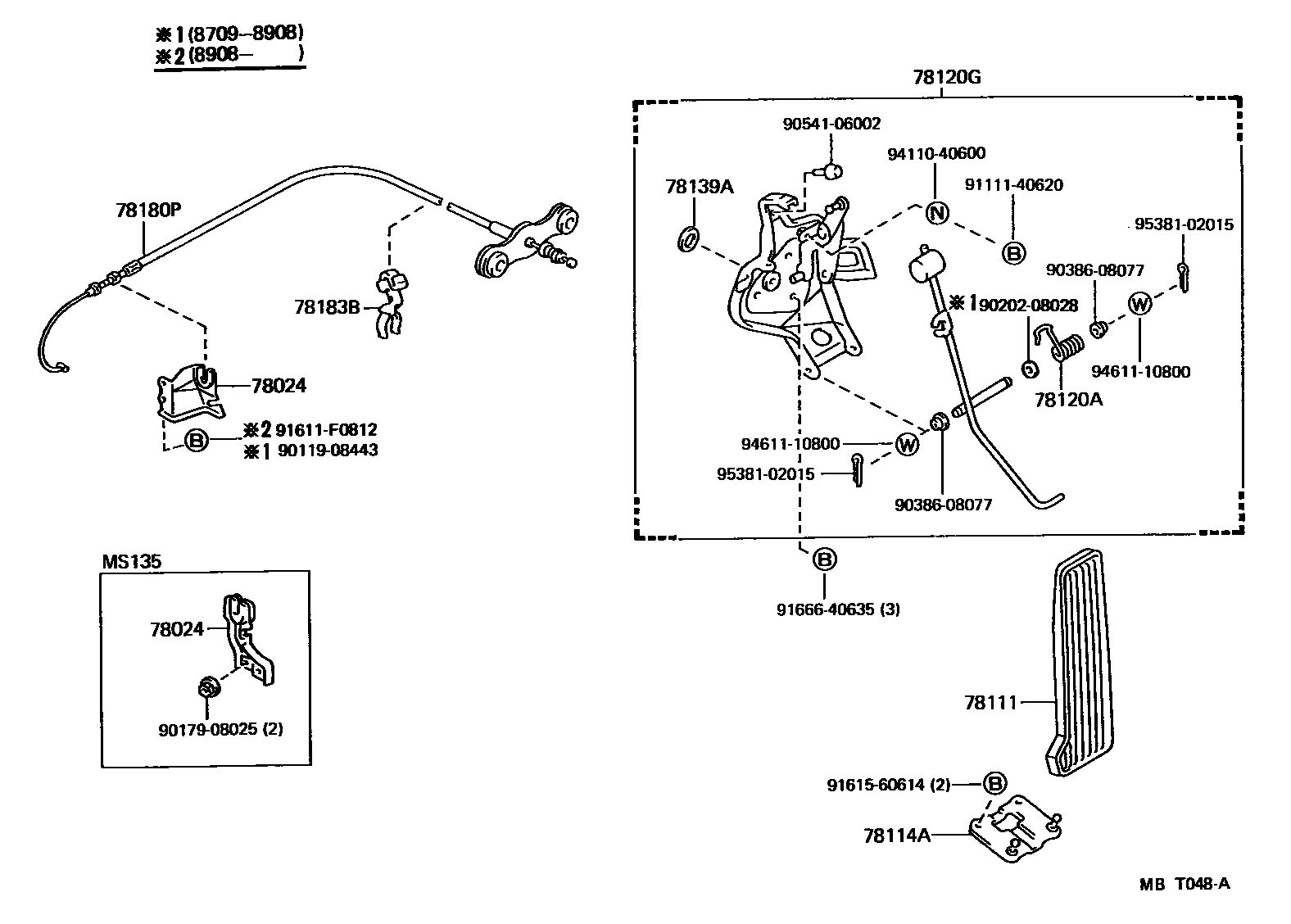

Toyota CROWN — ACCELERATOR LINK

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

78024BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE

main78024-30010iMS132198709-199110

main78024-30041iLS130198709-198908

main78024-30100iGS131198812-199110

sub78024-30101

main78024-30110iMS135..RHD198709-199110

main78024-30140iLS130198908-199009

main78024-30141iLS130199009-199110

sub78024-30142

78111PEDAL, ACCELERATOR

main78111-30080iGS131,LS130,MS13#..RHD198709-199110

sub78111-30081

main78111-30090iGS131,LS130,MS13#,YS132..LHD198709-199110

78114ABRACKET, ACCELERATOR PEDAL SUPPORT

main78114-30050iGS131,LS130,MS13#..RHD198709-199110

78120ASPRING, COMPRESSION (FOR ACCELERATOR LINK ROD)

main90508-18016iGS131,MS13#..RHD..ATM198809-199110

main90508-18066iMS132,135..RHD..ATM198709-198809

main90508-23025iMS13#..LHD..4FC198709-199110

main90508-23026×2iLS130..4H198809-199110

main90508-23101×2iLS130..RHD198709-198809

main90508-28003iMS132..RHD..5F198709-198809

main90508-29010iGS131,MS132,133..RHD..5F198809-199110

main90508-35008iGS131,LS130,MS132,133,YS132..LHD..MTM198709-199110

78120GROD ASSY, ACCELERATOR PEDAL

main78120-30531iGS131,MS132,133..RHD..5F198809-199110

main78120-30550iMS132,135..RHD..ATM198709-198809

main78120-30551iGS131,MS13#..RHD..ATM198809-199110

main78120-30560iMS132..RHD..5F198709-198809

sub78120-30561

main78120-30590iLS130..RHD198709-198809

main78120-30591iLS130..4H198809-199110

main78120-30600iMS135..RHD198709-198809

W(CRUISE CONTROL)

main78120-30601iMS135..RHD198809-199110

W(CRUISE CONTROL)

main78120-30650iMS133..4FC..GCC198709-199110

main78120-30660iMS133..5F..GCC198709-199110

main78120-30670iMS132,135..LHD..4FC198709-199110

main78120-30680iGS131,LS130,MS132,YS132..LHD..MTM198709-199110

78139ASEAL, ACCELERATOR PEDAL ROD BRACKET, NO.2

main78139-30060iGS131,LS130,MS13#..RHD198709-199110

78180PCABLE ASSY, ACCELERATOR CONTROL

main78180-30490iMS132..LHD198709-199110

main78180-30560iMS133198709-198908

main78180-30710iMS135..LHD198709-199110

main78180-30730iGS131198812-198908

main78180-30731iGS131..ROY198908-199110

main78180-30740iLS130..RHD198709-198908

main78180-30810iMS132..RHD198709-198908

main78180-30820iLS130..4H198908-199008

main78180-30821iLS130..4H198908-199110

main78180-3A030iMS135..RHD198709-198908

main78180-3A050iMS133..GEN198908-199110

main78180-3A090iYS132198709-199110

main78180-3A100iLS130..LHD198709-198908

main78180-3A150iLS130..4F198908-199110

main78180-3A180iGS131..SAL198908-199110

main78180-3A220iMS133..GCC198908-199110

main78180-3A250iMS135..RHD198908-199110

78183BCLAMP, ACCELERATOR CONTROL CABLE

main78183-30070iGS131,LS130,MS133,135..RHD198908-199110

main78183-30090iLS130,MS132,135..RHD198709-198804

main78183-30091iGS131,LS130,MS132,135..RHD198804-198908

9011908443

main90119-08443

9017908025

main90179-08025

9020208028

main90202-08028

9038608077

main90386-08077

9054106002

main90541-06002

9111140620

main91111-40620

91611F0812

main91611-F0812

9161560614

main91615-60614

9166640635

main91666-40635

9411040600

main94110-40600

9461110800

main94611-10800

9538102015

main95381-02015

20 parts on this diagram · 7 diagrams in section
