Toyota CROWN — ABS & VSC

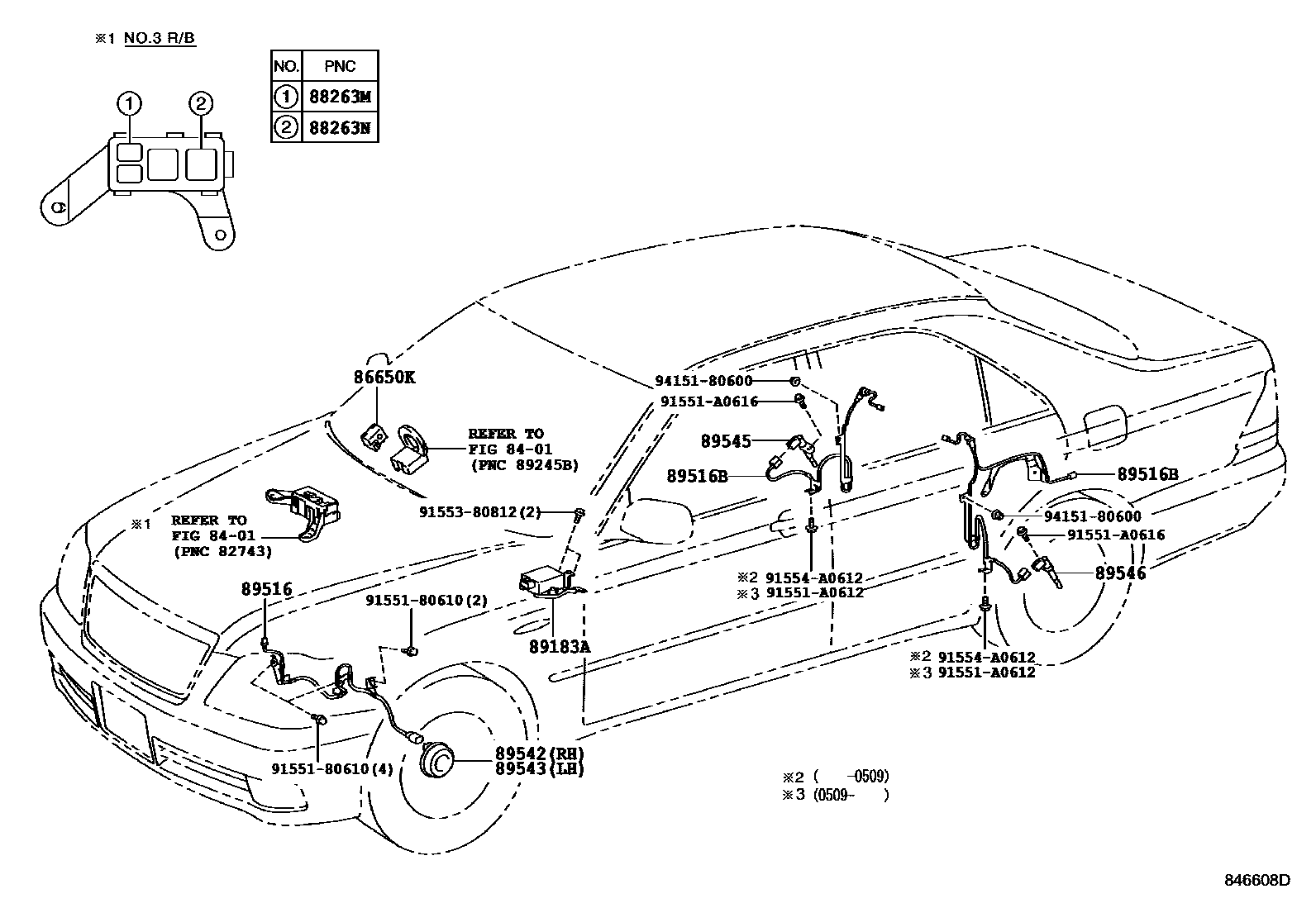

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

86650KBUZZER ASSY, SKID CONTROL

main86652-48010iGRS182200411-200802

88263MRELAY, ABS SOLENOID

main88263-32070iGRS182200411-200802

88263NRELAY, ABS MOTOR

main88263-21010iGRS182200411-200802

89183ASENSOR, YAWRATE

main89180-30070iGRS182200411-200802

89516WIRE, SKID CONTROL SENSOR

main89516-30020iGRS182200411-200802

RH

main89516-30030iGRS182200411-200802

LH

89516BWIRE, SKID CONTROL SENSOR

main89516-22020iGRS182200412-200802

RH

main89516-22030iGRS182200412-200502

LH

main89516-22040iGRS182200503-200802

LH

main89516-30080iGRS182200411-200411

RH

main89516-30090iGRS182200411-200411

LH

89542SENSOR, SPEED, FRONT RH

main89542-30260iGRS182200411-200802

89543SENSOR, SPEED, FRONT LH

main89543-30260iGRS182200411-200802

89545SENSOR, SPEED, REAR RH

main89545-30070iGRS182200411-200802

89546SENSOR, SPEED, REAR LH

main89546-30070iGRS182200411-200802

9155180610

main91551-80610

91551A0612

main91551-A0612

91551A0616

main91551-A0616

9155380812

main91553-80812

91554A0612

main91554-A0612

9415180600

main94151-80600

17 parts on this diagram · 1 diagram in section
