Toyota CROWN — ABS & VSC

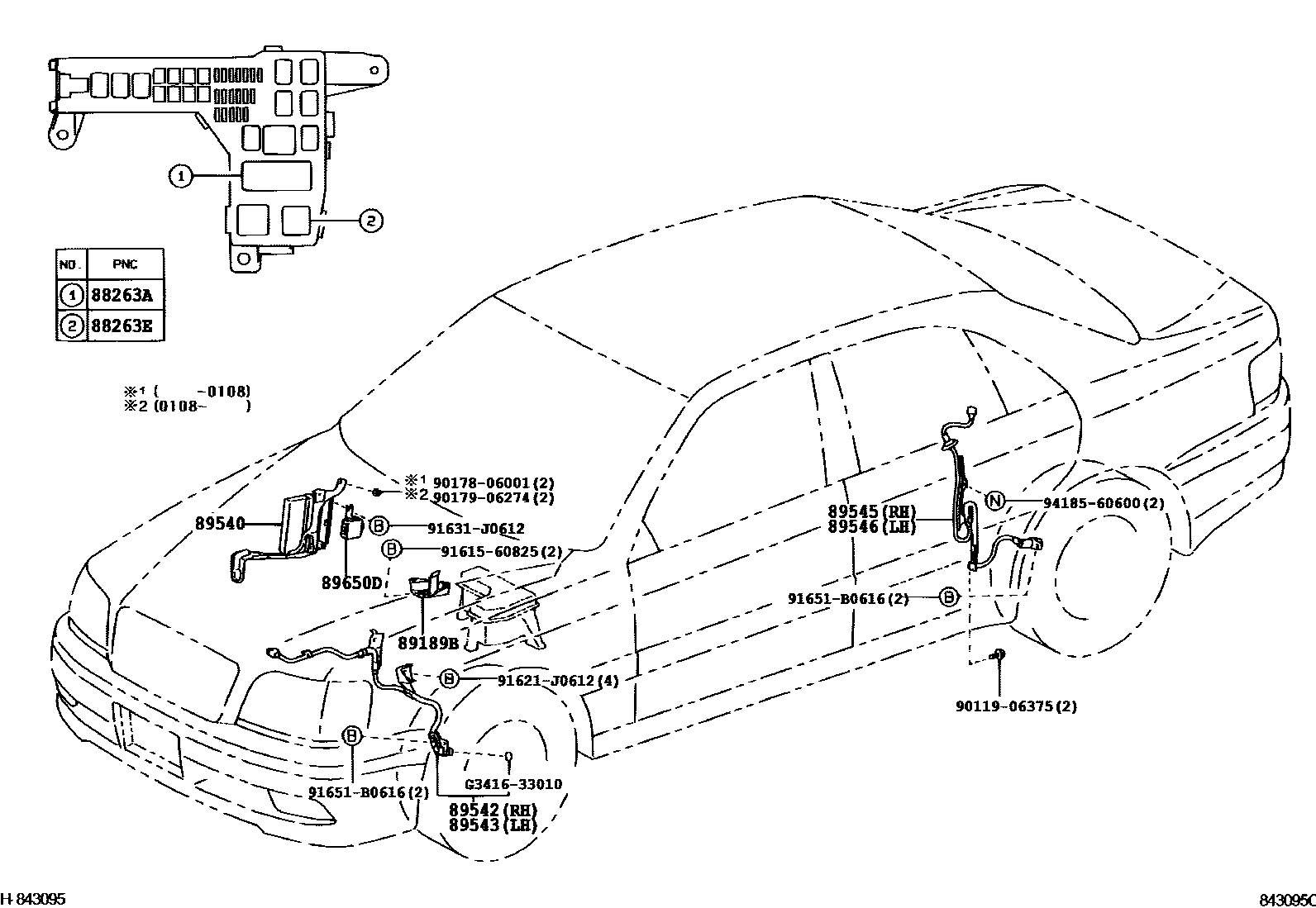

Parts diagram

88263ARELAY, SKID CONTROL

main88263-30150i199909-200108

main88263-32070i200108-200312

88263ERELAY, SKID CONTROL NO.2

main88263-24030i199909-200312

89189BBRACKET, YAWRATE SENSOR

main89189-30070i199909-200312

89540COMPUTER ASSY, SKID CONTROL

main89540-30470i199909-200108

main89540-30530i200108-200312

89542SENSOR, SPEED, FRONT RH

main89542-30230i199909-200308

main89542-51010i200308-200312

89543SENSOR, SPEED, FRONT LH

main89543-30230i199909-200308

main89543-53010i200308-200312

89545SENSOR, SPEED, REAR RH

main89545-30060i199909-200312

89546SENSOR, SPEED, REAR LH

main89546-30060i199909-200312

89650DCOMPUTER ASSY, POWER STEERING

main89650-30590i199909-200312

9011906375

main90119-06375

9017806001

main90178-06001

9017906274

main90179-06274

9161560825

main91615-60825

91621J0612

main91621-J0612

91631J0612

main91631-J0612

91651B0616

main91651-B0616

9418560600

main94185-60600

G341633010

mainG3416-33010

18 parts on this diagram · 1 diagram in section

ABS & VSC for Toyota CROWN

This section contains 18 genuine Toyota parts for the ABS & VSC system of the Toyota CROWN. Key components include: RELAY, SKID CONTROL, RELAY, SKID CONTROL NO.2, BRACKET, YAWRATE SENSOR, COMPUTER ASSY, SKID CONTROL, SENSOR, SPEED, FRONT RH.
