Toyota CROWN — ABS & VSC
85910BRELAY ASSY, CIRCUIT OPENING (FOR ESC)
89411SENSOR, SPEED
NO.1
NO.2,RH
NO.2,LH
89411ARING, O (FOR SPEED SENSOR)
89540COMPUTER ASSY, SKID CONTROL
8171112200LENS, FRONT MARKER LAMP, RH
main81711-12200
8271114110WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-14110
9017906070
main90179-06070
9017906097
main90179-06097
9056008021
main90560-08021
9094901109
main90949-01109
9094901110
main90949-01110
9161160840
main91611-60840

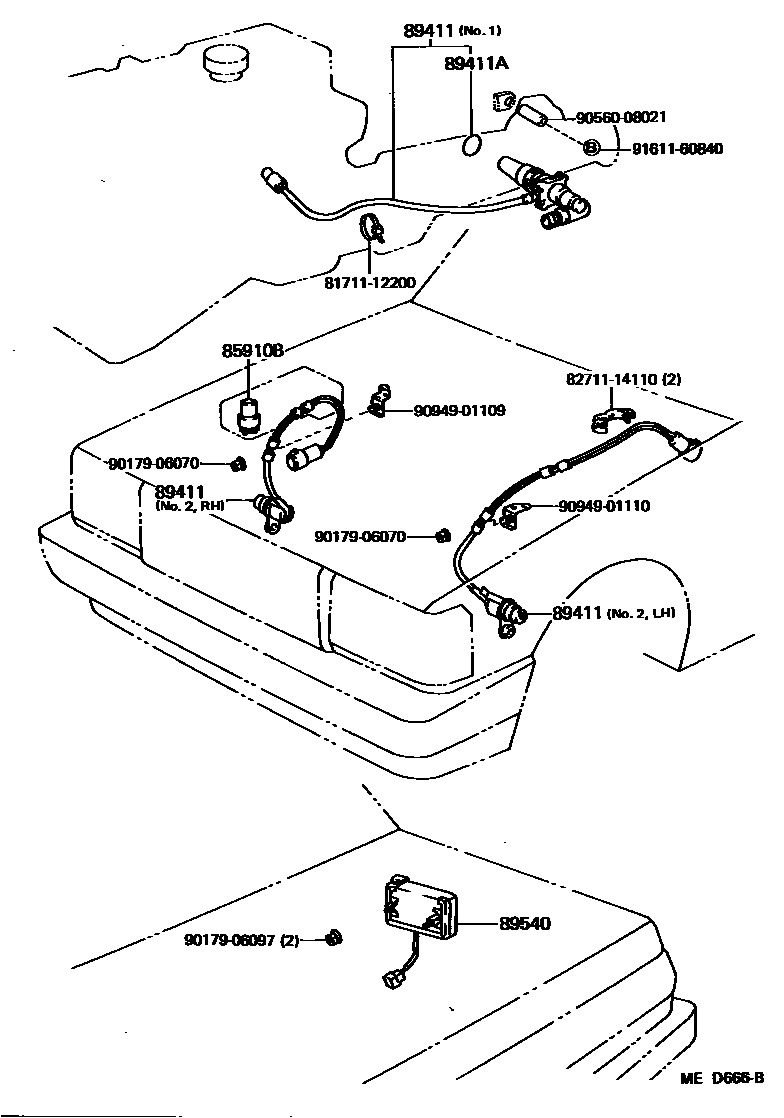

12 parts on this diagram · 1 diagram in section
ABS & VSC for Toyota CROWN
This section contains 12 genuine Toyota parts for the ABS & VSC system of the Toyota CROWN. Key components include: RELAY ASSY, CIRCUIT OPENING (FOR ESC), SENSOR, SPEED, RING, O (FOR SPEED SENSOR), COMPUTER ASSY, SKID CONTROL, LENS, FRONT MARKER LAMP, RH.
