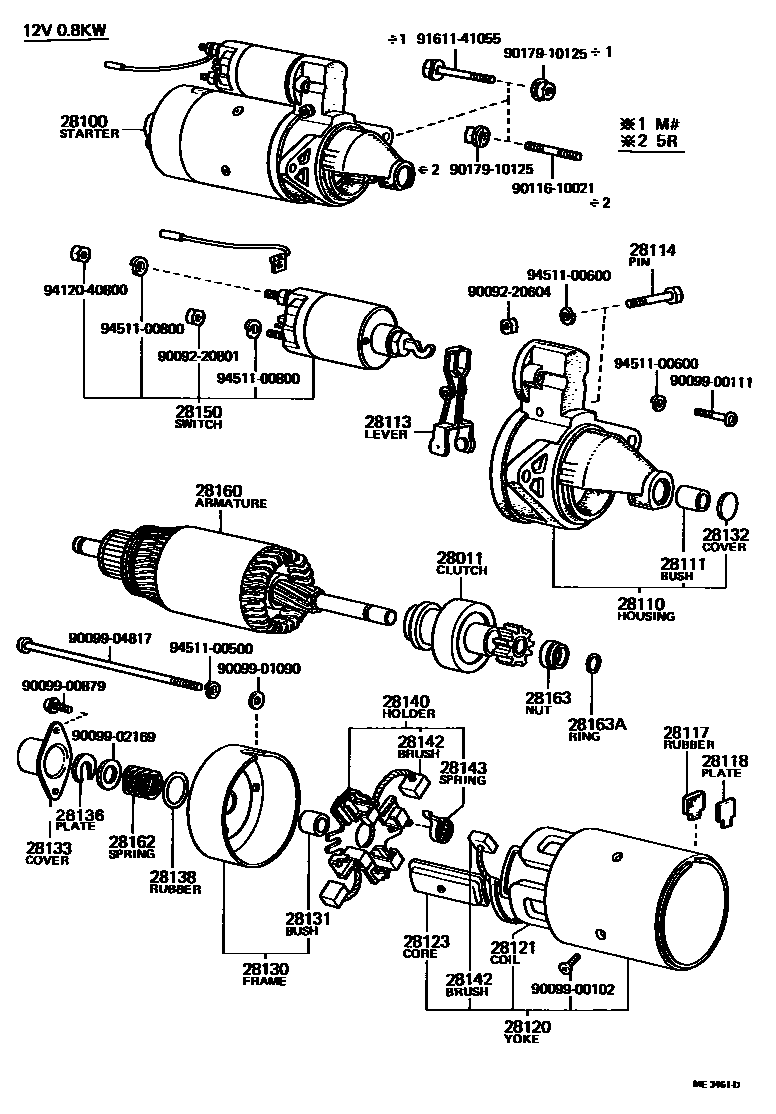

Toyota CROWN — STARTER

0001 1 0002 1 0004 1

28011CLUTCH SUB-ASSY, STARTER

main28011-41011i5R..RS80197410-197808

12V 0.8KW

main28011-41020i4M,5R..MS8#,95,RS80197410-197908

12V 1.0KW

28100STARTER ASSY

main28100-33011i5R..RS80197410-197601

12V 0.8KW

main28100-36070i5R..RS80197601-197808

12V 0.8KW

sub28100-37010

main28100-40060i5R..RS80197410-197808

12V 1.0KW

sub28100-40061

main28100-41020i4M..MS8#,95..LHD197604-197611

12V 1.0KW

sub28100-42060

main28100-41040i4M..MS8#,95..LHD197611-197802

12V 1.0KW

sub28100-42070

main28100-42020i4M..MS8#,95..RHD197604-197802

12V 1.0KW

sub28100-42021

main28100-44040i5R..RS80197808-197908

12V 1.0KW

sub28100-44041

28110HOUSING ASSY, STARTER DRIVE

main28110-40045i5R..RS80197410-197808

12V 0.8KW

main28110-40061i5R..RS80197410-197808

12V 1.0KW

main28110-41021i4M..MS8#,95197410-197908

main28110-44040i5R..RS80197808-197908

12V 1.0KW

28111BUSH(FOR STARTER HOUSING)

main28111-51011i4M,5R..MS8#,95,RS80197410-197908

28113LEVER, STARTER PINION DRIVE

main28113-41011i4M,5R..MS8#,95,RS80197410-197908

28114PIN, STARTER DRIVE LEVER SET

main28114-41011i4M,5R..MS8#,95,RS80197410-197908

28117RUBBER(FOR STARTER YOKE)

main28117-41012i4M..MS8#,95..LHD197611-197802

12V 1.0KW

main28117-41013i5R..RS80197601-197808

12V 0.8KW

main28117-41020i4M..MS8#,95..RHD197611-197802

12V 1.0KW

28118PLATE(FOR STARTER YOKE)

main28118-41012i5R..RS80197410-197601

12V 0.8KW

main28118-41013i5R..RS80197601-197808

12V 0.8KW

28120YOKE ASSY, STARTER

main28120-36040i5R..RS80197601-197808

12V 0.8KW

main28120-40061i5R..RS80197410-197808

12V 1.0KW

sub28120-40062

main28120-41021i4M..MS8#,95197410-197908

main28120-44040i5R..RS80197808-197908

12V 1.0KW

sub28120-44041

main28120-89101i5R..RS80197410-197601

12V 0.8KW

28121COIL, STARTER FIELD

main28121-36040i5R..RS80197601-197808

12V 0.8KW

main28121-40014i5R..RS80197410-197601

12V 0.8KW

main28121-41020i4M,5R..MS8#,95,RS80197410-197908

12V 1.0KW

28123CORE, STARTER POLE

main28123-40012×4i5R..RS80197410-197808

12V 0.8KW

main28123-41020×4i4M,5R..MS8#,95,RS80197410-197908

12V 1.0KW

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-21011i5R..RS80197410-197808

12V 0.8KW

main28130-40060i5R..RS80197410-197908

12V 1.0KW

main28130-41020i4M..MS8#,95197410-197908

28131BUSH, COMMUTATOR END FRAME

main28131-20010i4M,5R..MS8#,95,RS80197410-197908

STD

main90099-10039i4M,5R..MS8#,95,RS80197410-197908

U/S 0.3

main90099-10040i4M,5R..MS8#,95,RS80197410-197908

U/S 0.5

28132COVER, STARTER BEARING(FOR DRIVE HOUSING)

main28132-41010i4M..MS8#,95..RHD197611-197802

12V 1.0KW

main28166-41010i4M..MS8#,95..LHD197611-197802

12V 1.0KW

main28166-41011i5R..RS80197410-197908

28133COVER, BEARING(FOR END FRAME)

main28132-40010i4M,5R..MS8#,95,RS80197410-197908

12V 1.0KW

main28132-41011i5R..RS80197410-197808

12V 0.8KW

28136PLATE, STARTER LOCK

main28136-40010i4M,5R..MS8#,95,RS80197410-197908

12V 1.0KW

main28136-41011i5R..RS80197410-197808

12V 0.8KW

28138RUBBER(FOR STARTER BEARING COVER)

main28138-40010i4M,5R..MS8#,95,RS80197410-197908

12V 1.0KW

sub28138-26030

main28138-41011i5R..RS80197410-197808

12V 0.8KW

28140HOLDER ASSY, STARTER BRUSH

main28140-25020i5R..RS80197808-197908

12V 1.0KW

main28140-41012i5R..RS80197410-197808

12V 0.8KW

sub28140-41013

main28140-41020i4M,5R..MS8#,95,RS80197410-197808

12V 1.0KW

28142BRUSH, STARTER

main28142-10011×4i4M..MS8#,95197808-197908

12V 1.0KW

main28142-21010×4i5R..RS80197410-197808

12V 0.8KW

main28142-25011×2i5R..RS80197808-197908

12V 1.0KW,FOR HOLDER

main28142-25020×2i5R..RS80197808-197908

12V 1.0KW,FOR YOKE

28143SPRING, STARTER BRUSH

main28143-40010×4i4M,5R..MS8#,95,RS80197410-197808

main28143-40040×4i5R..RS80197808-197908

28150SWITCH ASSY, MAGNET STARTER

main28150-22011i5R..RS80197410-197808

12V 0.8KW

main28150-33020i5R..RS80197807-197808

12V 1.0KW

main28150-41011i4M..MS8#,95..RHD197604-197802

12V 1.0KW

main28150-41020i4M..MS8#,95197410-197604

12V 1.0KW

sub28150-12031

main28150-41040i4M..MS8#,95..LHD197604-197802

12V 1.0KW

main28150-60040i4M..MS8#,95197807-197908

12V 1.0KW

28160ARMATURE ASSY, STARTER

main28160-40014i5R..RS80197410-197808

12V 0.8KW

main28160-41020i4M,5R..MS8#,95,RS80197410-197908

12V 1.0KW

28162SPRING, STARTER BRAKE

main28162-41011i5R..RS80197410-197808

12V 0.8KW

main28162-41022i4M,5R..MS8#,95,RS80197410-197908

12V 1.0KW

28163NUT OR COLLAR, PINION STOP, STARTER

main28163-40011i4M,5R..MS8#,95,RS80197410-197908

28163ARING, SNAP(FOR STARTER PINION STOP NUT)

main90099-07047i4M,5R..MS8#,95,RS80197410-197908

9009220604

main90092-20604

9009220801

main90092-20801

9009900102

main90099-00102

9009900111

main90099-00111

9009900879

main90099-00879

9009901090

main90099-01090

9009902169

main90099-02169

9009904817

main90099-04817

9011610021

main90116-10021

9017910125

main90179-10125

9161141055

main91611-41055

9412040800

main94120-40800

9451100500

main94511-00500

9451100600

main94511-00600

9451100800

main94511-00800

40 parts on this diagram · 3 diagrams in section
