Toyota CROWN — SPEAKER

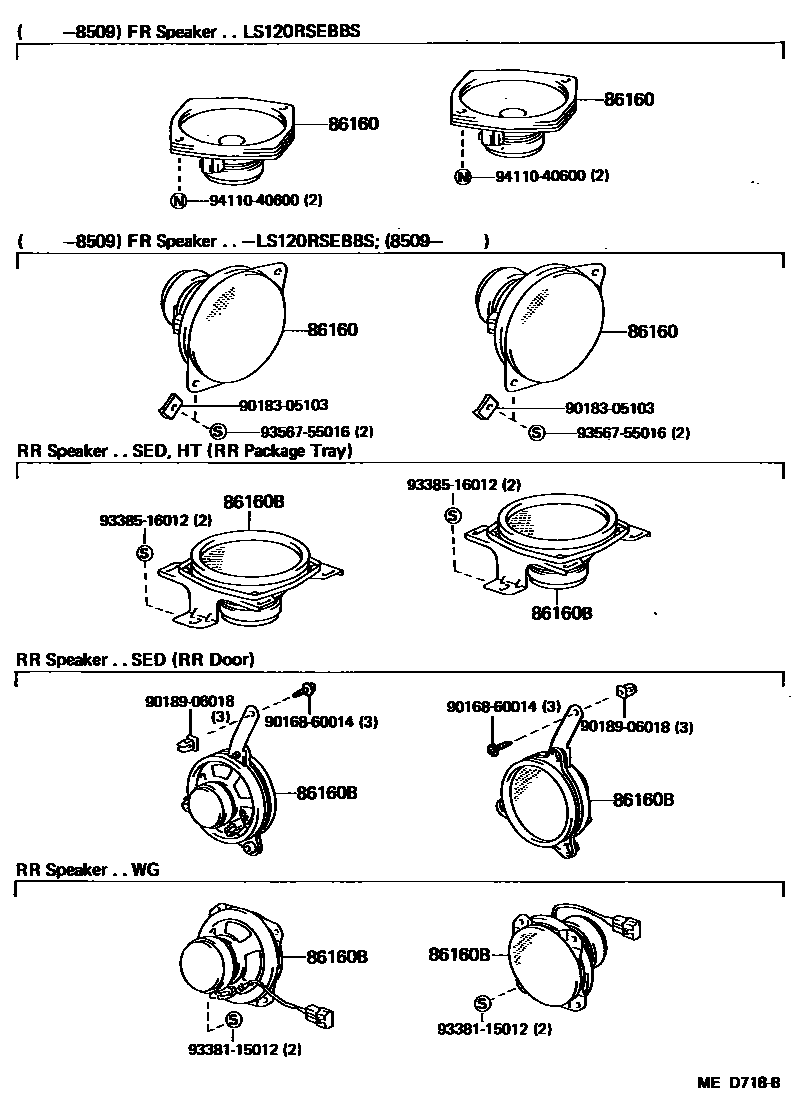

Parts diagram

86160SPEAKER ASSY, FRONT NO.1

main86160-12170i198308-198708

main86160-30200i198308-198509

86160BSPEAKER ASSY, REAR

main86160-14130i198308-198708

main86160-30170i198308-198708

RR PACKAGE TRAY

main86160-30180i198308-198708

RR PACKAGE TRAY

main86160-30210i198308-198708

RH DOOR

main86160-30220i198308-198708

LH DOOR

9016860014

main90168-60014

9018305103

main90183-05103

9018906018

main90189-06018

9338115012

main93381-15012

9338516012

main93385-16012

9356755016

main93567-55016

9411040600

main94110-40600

9 parts on this diagram · 1 diagram in section

SPEAKER for Toyota CROWN

This section contains 9 genuine Toyota parts for the SPEAKER system of the Toyota CROWN. Key components include: SPEAKER ASSY, FRONT NO.1, SPEAKER ASSY, REAR.
