Toyota CROWN — PARTIAL ENGINE ASSEMBLY

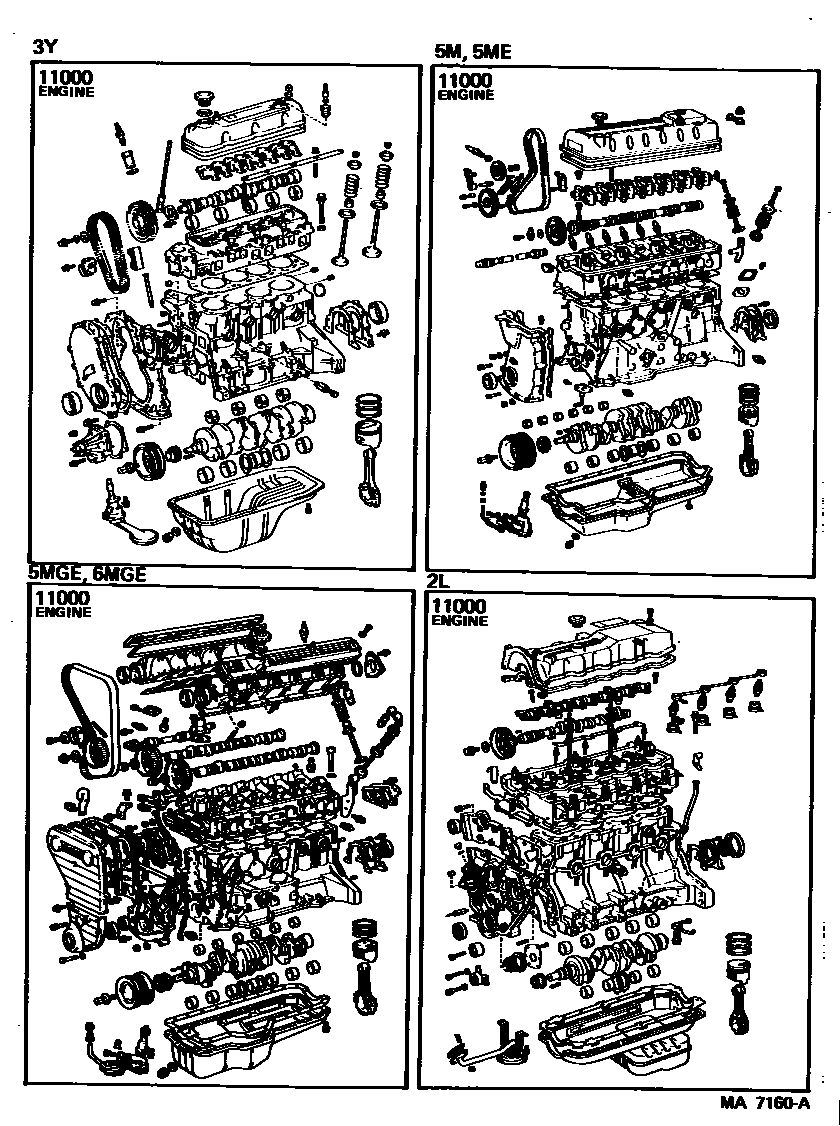

Parts diagram
11000ENGINE ASSY, PARTIAL
main19000-42070i198410-198505
main19000-42071i198505-198708
sub19000-42072
main19000-43230i198308-198408
sub19000-43350
sub90116-10097
sub90179-10016
main19000-43231i198408-198708
main19000-43250i198308-198408
sub19000-43370
sub90116-10097
sub90179-10016
main19000-43251i198408-198509
main19000-43260i198308-198408
sub19000-43380
sub90116-10097
sub90179-10016
main19000-43261i198408-198509
main19000-43280i198308-198408
sub90116-10097
sub90179-10016
main19000-43281i198408-198410
main19000-43290i198308-198408
sub19000-43400
sub90116-10097
sub90179-10016
main19000-43291i198408-198509
sub19000-43292
main19000-43410i198509-198708
main19000-43420i198509-198708
main19000-54330i198308-198407
main19000-54331i198407-198708
sub19000-54650
main19000-54550i198308-198708
HONG KONG SPEC,SINGAPORE SPEC
sub19000-54660
main19000-73080i198308-198502
sub16268-73031
main19000-73081i198502-198509
sub19000-73082
main19000-73480i198509-198708
sub19000-73481

1 parts on this diagram · 1 diagram in section
