Toyota CROWN — MOUNTING

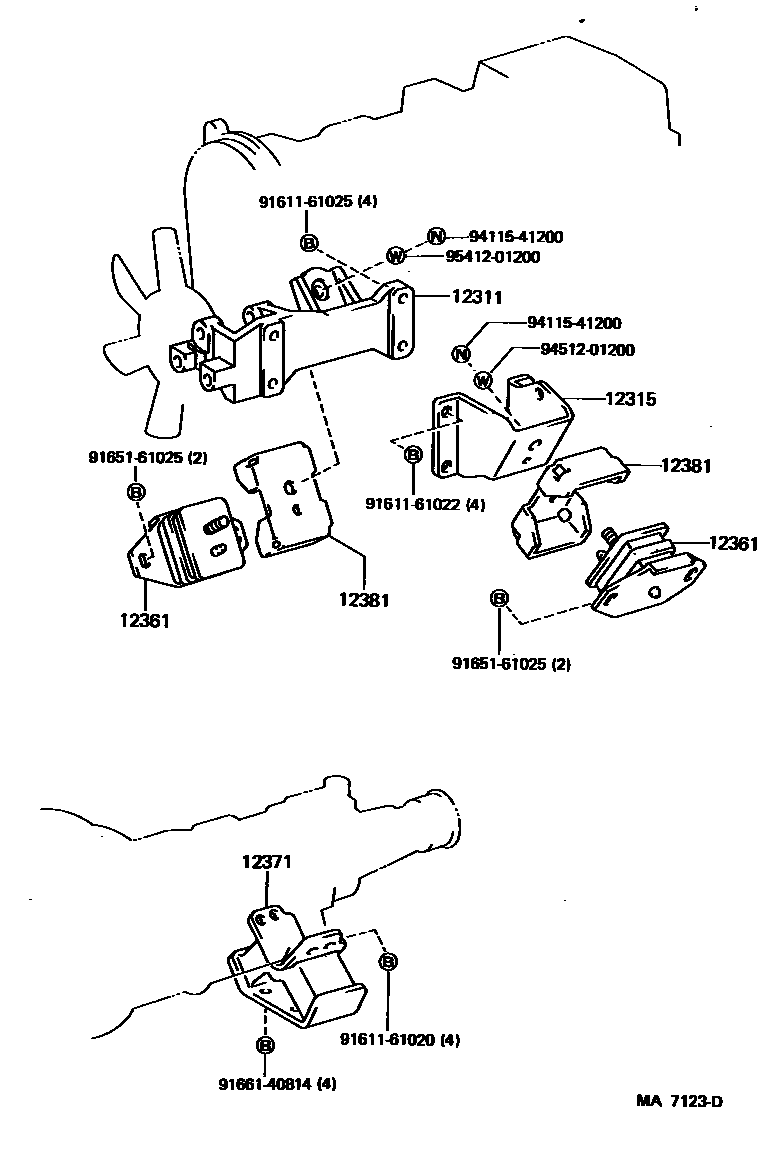

Parts diagram

12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH

main12311-41070i198308-198408

main12311-42010i198408-198708

main12311-54090i198308-198708

main12311-71010i198308-198708

12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH

main12312-54020i198308-198608

W/O PS

main12312-54021i198608-198708

W/O PS

main12315-41080i198308-198408

main12315-42010i198408-198708

main12315-71010i198308-198708

12361INSULATOR, ENGINE MOUNTING, FRONT

main12361-41100×2i198308-198408

main12361-42010×2i198408-198503

main12361-43030×2i198308-198408

main12361-43060×2i198503-198708

main12361-54130i198308-198708

RH

main12361-73010i198308-198708

RH

main12362-54020i198308-198708

LH

main12362-73010i198308-198708

LH

12371INSULATOR, ENGINE MOUNTING, REAR NO.1

main12371-34020i198308-198708

main12371-34030i198308-198708

main12371-41070i198308-198708

12381STABILIZER, ENGINE MOUNTING

main12381-54010×2i198308-198708

main12381-71020×2i198308-198312

main12381-73010×2i198312-198708

9161161020

main91611-61020

9161161022

main91611-61022

9161161025

main91611-61025

9165161025

main91651-61025

9166140814

main91661-40814

9411541200

main94115-41200

9451201200

main94512-01200

9541201200

main95412-01200

13 parts on this diagram · 4 diagrams in section

MOUNTING for Toyota CROWN

This section contains 25 genuine Toyota parts for the MOUNTING system of the Toyota CROWN. Key components include: BRACKET, ENGINE MOUNTING, FRONT NO.1 RH, BRACKET, ENGINE MOUNTING, FRONT NO.1 LH, INSULATOR, ENGINE MOUNTING, FRONT, INSULATOR, ENGINE MOUNTING, REAR NO.1, STABILIZER, ENGINE MOUNTING.
