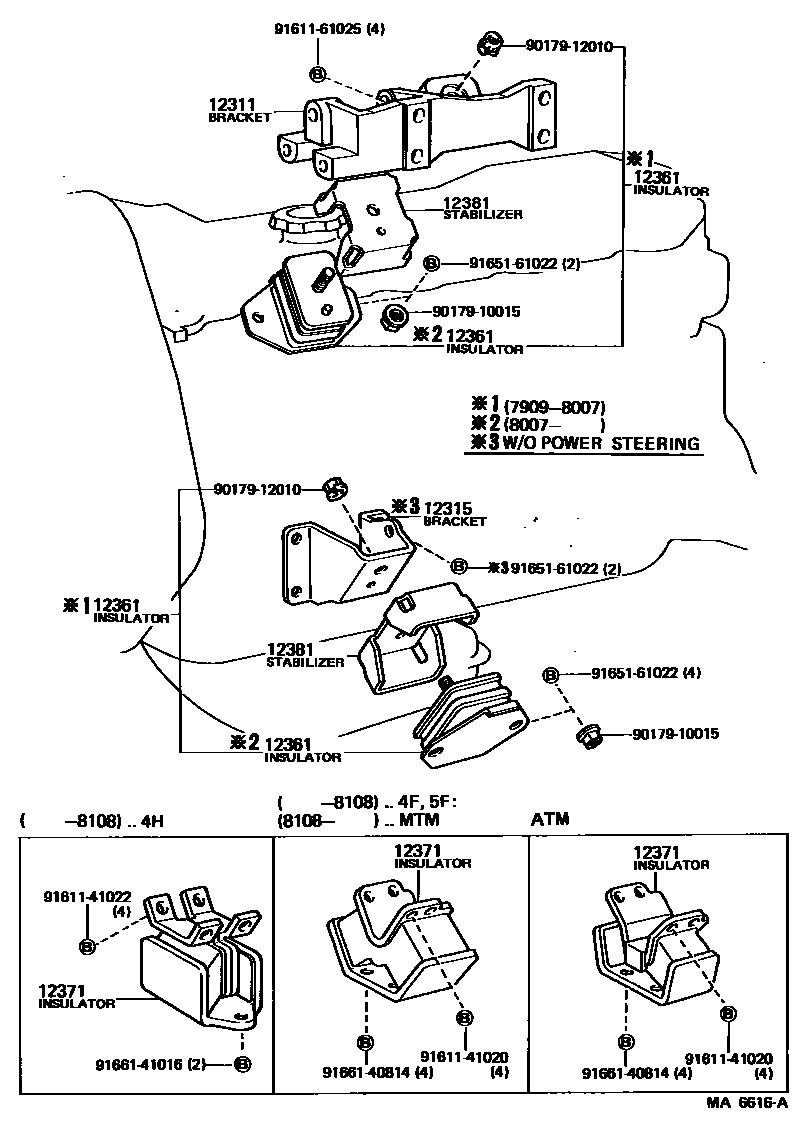

Toyota CROWN — MOUNTING
12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
W/O POWER STEERING
12361INSULATOR, ENGINE MOUNTING, FRONT
RH
RH
LH
LH
12371INSULATOR, ENGINE MOUNTING, REAR NO.1
12381STABILIZER, ENGINE MOUNTING
9017910015
main90179-10015
9017912010
main90179-12010
9161141020
main91611-41020
9161141022
main91611-41022
9161161025
main91611-61025
9165161022
main91651-61022
9166140814
main91661-40814
9166141016
main91661-41016
13 parts on this diagram · 3 diagrams in section
MOUNTING for Toyota CROWN
This section contains 24 genuine Toyota parts for the MOUNTING system of the Toyota CROWN. Key components include: BRACKET, ENGINE MOUNTING, FRONT NO.1 RH, BRACKET, ENGINE MOUNTING, FRONT NO.1 LH, INSULATOR, ENGINE MOUNTING, FRONT, INSULATOR, ENGINE MOUNTING, REAR NO.1, STABILIZER, ENGINE MOUNTING.
