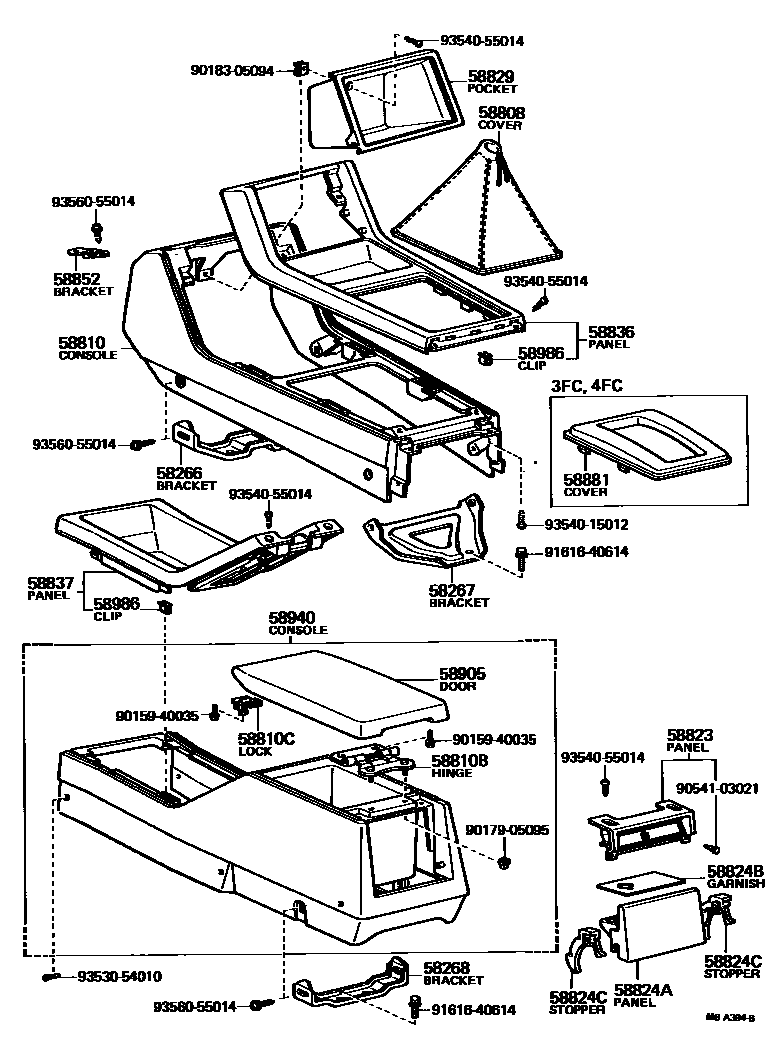

Toyota CROWN — CONSOLE BOX & BRACKET

0001 1 0002 1 0003 1

58266BRACKET, CONSOLE BOX SUPPORT, FRONT

main58995-30020iLS110,MS11#,RS110..3FC,4F,4FC,5F197909-198307

58267BRACKET, CONSOLE BOX SUPPORT, CENTER

main58996-30010iLS110,MS11#,RS110..3FC,4F,4FC,5F197909-198307

58268BRACKET, CONSOLE BOX SUPPORT, REAR

main58997-30010iLS110,MS11#,RS110..3FC,4F,4FC,5F197909-198307

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-30040-02iLS110,MS11#,RS110..4F,5F197909-198008

DARK WINE,RED/MAROON,TRIM3#

main58808-30040-04iLS110,MS11#,RS110..4F,5F197909-198008

BLUE,BLUE,TRIM8#

main58808-30040-05iLS110,MS11#,RS110..4F,5F197909-198008

GREIGE,BEIGE,TRIM4#

main58808-30041-02iLS110,MS112,RS110..4F,5F198008-198108

DARK WINE,RED/MAROON,TRIM3#

main58808-30041-04iLS110,MS112,RS110..4F,5F198008-198108

BLUE,BLUE,TRIM8#

main58808-30041-05iLS110,MS112,RS110..4F,5F198008-198108

GREIGE,BEIGE,TRIM4#

main58808-30050-03iLS110,MS112,RS110..4F,5F198108-198307

GRAY,GRAY,TRIM1#

main58808-30050-04iLS110,MS112,RS110..4F,5F198108-198307

BLUE,BLUE,TRIM8#

main58808-30050-05iLS110,MS112,RS110..4F,5F198108-198307

BEIGE,BEIGE,TRIM4#

58810CONSOLE ASSY

main58811-30170-02iLS110,MS11#,RS110..3FC,4F,4FC,5F197909-198108

DARK WINE,RED/MAROON,TRIM3#

main58811-30170-04iLS110,MS11#,RS110..3FC,4F,4FC,5F197909-198108

BLUE,BLUE,TRIM8#

main58811-30170-05iLS110,MS11#,RS110..3FC,4F,4FC,5F197909-198108

GREIGE,BEIGE,TRIM4#

main58811-30190-03iLS110,MS112,RS110..4F,4FC,5F198108-198307

GRAY,GRAY,TRIM1#

main58811-30190-04iLS110,MS112,RS110..4F,4FC,5F198108-198307

BLUE,BLUE,TRIM8#

main58811-30190-05iLS110,MS112,RS110..4F,4FC,5F198108-198307

BEIGE,BEIGE,TRIM4#

58810BHINGE SUB-ASSY,CONSOLE COMPARTMENT DOOR

main58907-30030iLS110,MS11#,RS110..3FC,4F,4FC,5F197909-198307

58810CLOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58803-30040iLS110,MS11#,RS110..3FC,4F,4FC,5F197909-198108

main58908-22010iLS110,MS112,RS110..4F,4FC,5F198108-198307

58823PANEL, CONSOLE, REAR

main58903-30050iLS110,MS11#,RS110..(3FC,4F,4FC,5F)..(DLX,SAL)197909-198108

main58903-30060iLS110,MS112,RS110..(4F,5F)..BTP197909-198108

main58903-30070iLS110,MS112,RS110..(4F,4FC,5F)..(BTP,DLX,SAL)198108-198307

58824APANEL, CONSOLE, REAR NO.2

main58924-30010-02iLS110,MS11#,RS110..3FC,4F,4FC,5F197909-198108

DARK WINE,RED/MAROON,TRIM3#

main58924-30010-03iLS110,MS112,RS110..4F,4FC,5F198108-198307

GRAY,GRAY,TRIM1#

main58924-30010-04iLS110,MS11#,RS110..3FC,4F,4FC,5F197909-198108

BLUE,BLUE,TRIM8#

main58924-30010-05iLS110,MS11#,RS110..3FC,4F,4FC,5F197909-198108

GREIGE,BEIGE,TRIM4#

main58924-30010-15iLS110,MS112,RS110..4F,4FC,5F198108-198307

BEIGE,BEIGE,TRIM4#

58824BGARNISH, CONSOLE REAR PANEL, NO.2

main58934-30050iLS110,MS11#,RS110..(3FC,4F,4FC,5F)..(BTP,DLX)197909-198108

W/LIGHTER

main58934-30070iMS11#,RS110..(3FC,4F,4FC,5F)..(ROY,SAL)197909-198108

W/LIGHTER,RADIO SARCH

main58934-30080iLS110,MS112,RS110..(4F,4FC,5F)..(BTP,DLX)198108-198307

main58934-30100iMS112,RS110..(4F,4FC,5F)..(ROY,SAL)198108-198307

58824CSTOPPER, CONSOLE REAR PANEL, NO.2

main58937-30010iLS110,MS11#,RS110..3FC,4F,4FC,5F197909-198307

RH

main58938-30010iLS110,MS11#,RS110..3FC,4F,4FC,5F197909-198307

LH

58829POCKET, CONSOLE BOX

main58806-30040-03iMS112,RS110..(4F,4FC,5F)..(ROY,SAL)198108-198307

GRAY,GRAY,TRIM1#

main58806-30040-04iMS112,RS110..(4F,4FC,5F)..(ROY,SAL)198108-198307

BLUE,BLUE,TRIM8#

main58806-30040-05iMS112,RS110..(4F,4FC,5F)..(ROY,SAL)198108-198307

BEIGE,BEIGE,TRIM4#

main58825-30030iLS110,RS110..RHD..4F..BTP197909-198108

main58825-30040iLS110,MS11#,RS110..RHD..(3FC,4F,4FC,5F)..(DLX,ROY,SAL)197909-198108

main58825-30050-03iLS110,MS112,RS110..(4F,4FC,5F)..(BTP,DLX)198108-198307

GRAY,GRAY,TRIM1#

main58825-30050-04iLS110,MS112,RS110..(4F,4FC,5F)..(BTP,DLX)198108-198307

BLUE,BLUE,TRIM8#

main58825-30050-05iLS110,MS112,RS110..(4F,4FC,5F)..(BTP,DLX)198108-198307

BEIGE,BEIGE,TRIM4#

58836PANEL, CONSOLE, UPPER FRONT

main58821-30130iLS110,RS110..RHD..4F..BTP197909-198108

main58821-30140iLS110,MS11#,RS110..RHD..(3FC,4F,4FC,5F)..(DLX,ROY,SAL)197909-198108

main58821-30150iLS110,MS112,RS110..LHD..(4F,4FC,5F)..BTP197909-198108

main58821-30160iLS110,MS11#,RS110..LHD..(3FC,4F,4FC,5F)..(DLX,ROY,SAL)197909-198108

58837PANEL, CONSOLE, UPPER REAR

main58805-30090iLS110,MS112,RS110..(4F,5F)..BTP197909-198108

main58805-30100iLS110,MS11#,RS110..(3FC,4F,4FC,5F)..(DLX,ROY,SAL)197909-198108

main58805-30110-01iLS110,MS112,RS110..4F,4FC,5F198108-198307

BLACK-M,BLACK,TRIM1#

main58805-30110-04iLS110,MS112,RS110..4F,4FC,5F198108-198307

BLUE,BLUE,TRIM8#

main58805-30110-05iLS110,MS112,RS110..4F,4FC,5F198108-198307

BEIGE,BEIGE,TRIM4#

58852BRACKET, CONSOLE SUPPORT, UPPER LH

main58991-30020iLS110,MS11#,RS110..LHD..(3FC,4F,4FC,5F)197909-198108

main58991-30040iLS110,MS112..RHD..(4F,4FC,5F)198108-198307

main58991-30050iLS110,MS112,RS110..LHD..(4F,4FC,5F)198108-198307

main58992-30020iLS110,MS11#,RS110..RHD..(3FC,4F,4FC,5F)197909-198108

58881COVER, SHIFTING HOLE

main58841-30050iLS110..4FC..BTP197909-198108

main58841-30060iLS110,MS11#..(3FC,4FC)..(DLX,ROY,SAL)197909-198108

main58841-30070-01iLS110,MS112..4FC198108-198307

BLACK-M,BLACK,TRIM1#

main58841-30070-04iLS110,MS112..4FC198108-198307

BLUE,BLUE,TRIM8#

main58841-30070-05iLS110,MS112..4FC198108-198307

BEIGE,BEIGE,TRIM4#

58905DOOR SUB-ASSY, CONSOLE COMPARTMENT

main58905-30060-02iLS110,MS11#,RS110..3FC,4F,4FC,5F197909-198108

DARK WINE,RED/MAROON,TRIM3#

main58905-30060-03iLS110,MS112,RS110..4F,4FC,5F198108-198307

GRAY,GRAY,TRIM1#

main58905-30060-04iLS110,MS11#,RS110..3FC,4F,4FC,5F197909-198108

BLUE,BLUE,TRIM8#

main58905-30060-05iLS110,MS11#,RS110..3FC,4F,4FC,5F197909-198108

GREIGE,BEIGE,TRIM4#

main58905-30060-15iLS110,MS112,RS110..4F,4FC,5F198108-198307

BEIGE,BEIGE,TRIM4#

58940CONSOLE ASSY, REAR

main58901-30010-02iLS110,MS11#,RS110..3FC,4F,4FC,5F197909-198108

DARK WINE,RED/MAROON,TRIM3#

main58901-30010-04iLS110,MS11#,RS110..3FC,4F,4FC,5F197909-198108

BLUE,BLUE,TRIM8#

main58901-30010-05iLS110,MS11#,RS110..3FC,4F,4FC,5F197909-198108

GREIGE,BEIGE,TRIM4#

main58901-30030-03iLS110,MS112,RS110..4F,4FC,5F198108-198307

GRAY,GRAY,TRIM1#

main58901-30030-04iLS110,MS112,RS110..4F,4FC,5F198108-198307

BLUE,BLUE,TRIM8#

main58901-30030-05iLS110,MS112,RS110..4F,4FC,5F198108-198307

BEIGE,BEIGE,TRIM4#

58986CLIP, CONSOLE, FINISH PALTE

main58986-30010×4iLS110,MS11#,RS110..3FC,4F,4FC,5F197909-198108

9015940035

main90159-40035

9017905095

main90179-05095

9018305094

main90183-05094

9054103021

main90541-03021

9161640614

main91616-40614

9353054010

main93530-54010

9354015012

main93540-15012

9354055014

main93540-55014

9356055014

main93560-55014

28 parts on this diagram · 3 diagrams in section
