Toyota CROWN/HYBRID — SWITCH & RELAY & COMPUTER

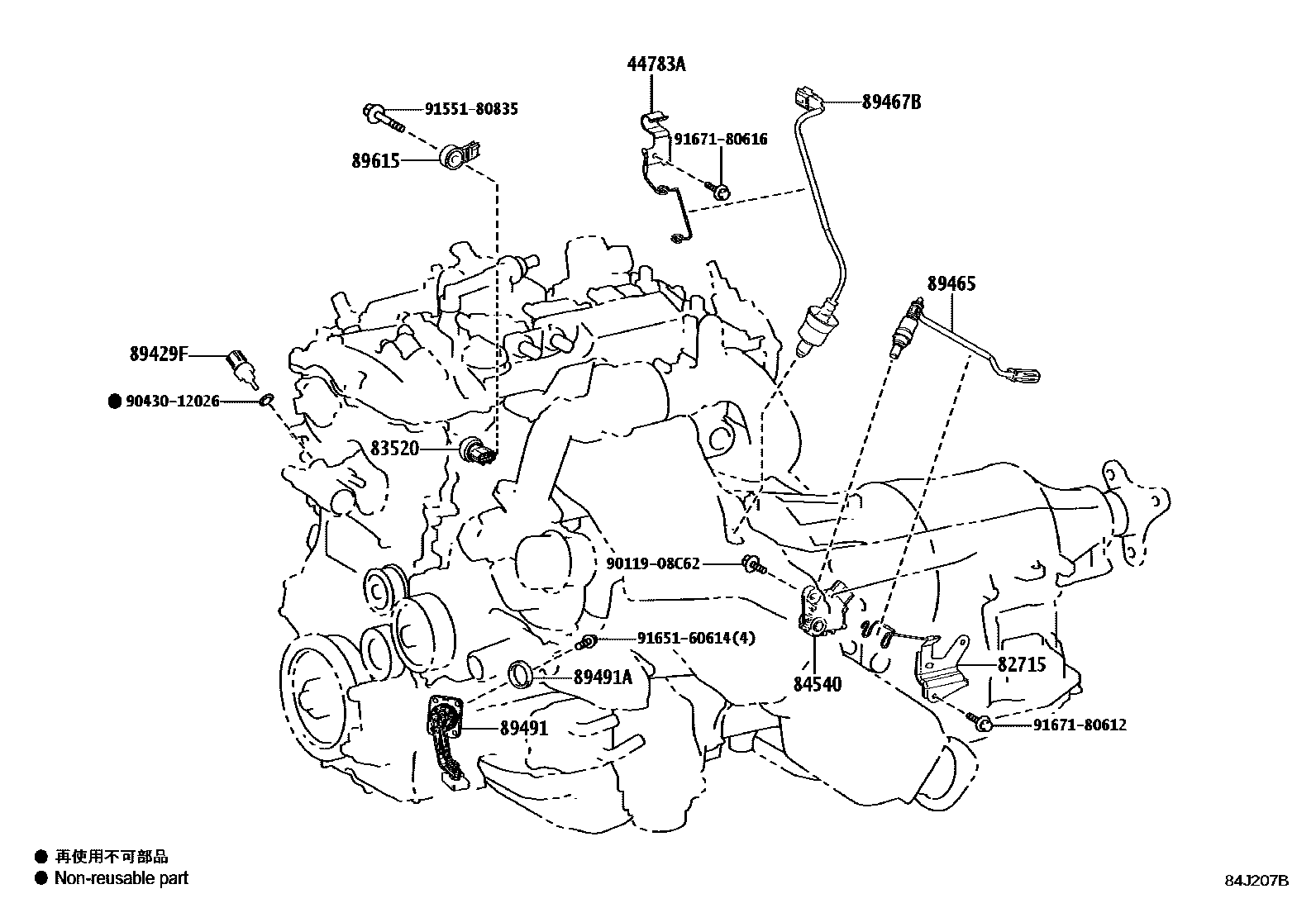

Parts diagram

44783ACLAMP, VACUUM HOSE

main44783-30010i202011-202204

82715BRACKET,WIRING HARNESS CLAMP

main82715-30T20i202011-202204

main82715-30Y30i202011

main82715-50G10i202011-202204

83520GAGE ASSY,OIL PRESSURE SENDER

main83520-60060i201806-202010

84540SWITCH ASSY, NEUTRAL START

main84540-71010i202011-202204

89429FSENSOR, TEMPERATURE

main89429-12010i201806-202010

89465SENSOR, OXYGEN

main89465-30B20i202011

89467BSENSOR, AIR FUEL RATIO

main89467-11010i201806-202010

main89467-30100i201806-202010

main89467-53090i202011

89491SENSOR, ENGINE OIL LEVEL

main89491-30080i202011

main89491-30100i201806-201808

main89491-30101i201809-202010

main89491-33051i202011-202204

main89491-50081i202011-202204

main89491-50082i202205

89491AGASKET, ENGINE OIL LEVEL SENSOR

main89493-60010i202011

89615SENSOR, KNOCK CONTROL

main89615-20090×2i201806-202010

9011908C62

main90119-08C62

9043012026

main90430-12026

9155180835

main91551-80835

9165160614

main91651-60614

9167180612

main91671-80612

9167180616

main91671-80616

16 parts on this diagram · 16 diagrams in section

SWITCH & RELAY & COMPUTER for Toyota CROWN/HYBRID

This section contains 242 genuine Toyota parts for the SWITCH & RELAY & COMPUTER system of the Toyota CROWN/HYBRID. Key components include: RELAY ASSY, STARTER, NO.1, RELAY, IGNITION, NO.1, RELAY, IGNITION, NO.2, SENSOR ASSY, BATTERY STATE, HOLDER, BATTERY CURRENT SENSOR.
