Toyota CROWN/CROWN MAJESTA — STEERING CONTROL SYSTEM

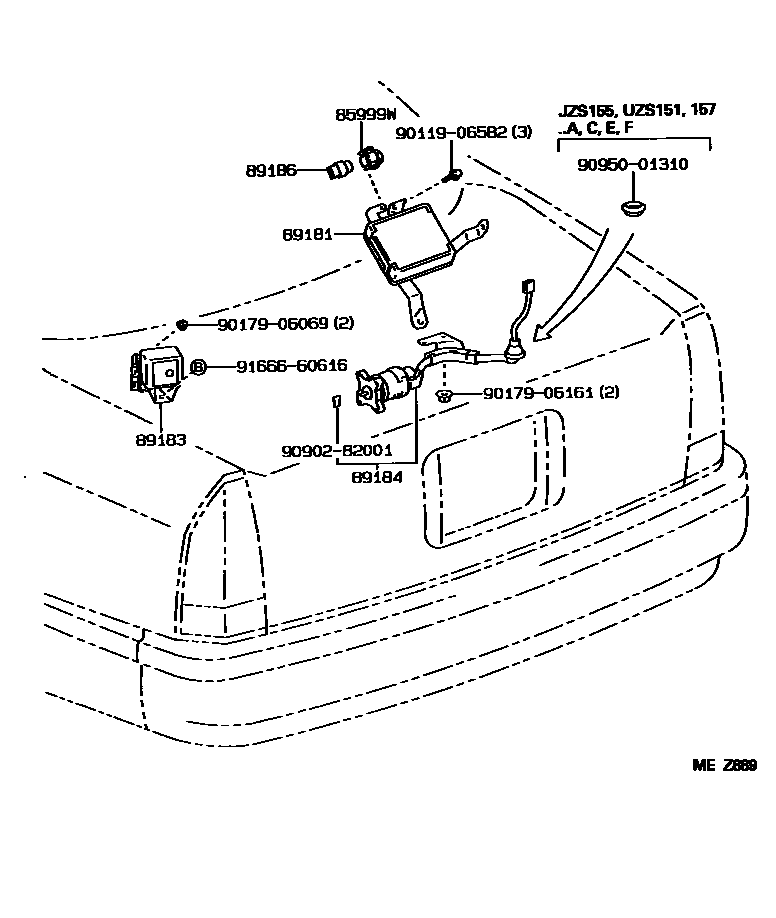

Parts diagram

85999WBRACKET, RELAY

main85999-12050i199511

89181COMPUTER, STEERING CONTROL

main89181-30020i199511

89183SENSOR, YAWRATE

main89183-30021i199511-199609

main89183-30022i199609-199909

main89183-30030i199609-199707

89184MOTOR, STEERING CONTROL, NO.2

main89184-30020i199511

89186RELAY, STEERING CONTROL

main90987-02004i199511

9011906582

main90119-06582

9017906069

main90179-06069

9017906161

main90179-06161

9090282001

main90902-82001

9095001310

main90950-01310

9166660616

main91666-60616

11 parts on this diagram · 1 diagram in section

STEERING CONTROL SYSTEM for Toyota CROWN/CROWN MAJESTA

This section contains 11 genuine Toyota parts for the STEERING CONTROL SYSTEM system of the Toyota CROWN/CROWN MAJESTA. Key components include: BRACKET, RELAY, COMPUTER, STEERING CONTROL, SENSOR, YAWRATE, MOTOR, STEERING CONTROL, NO.2, RELAY, STEERING CONTROL.
