Toyota CROWN/CROWN MAJESTA — PARTIAL ENGINE ASSEMBLY

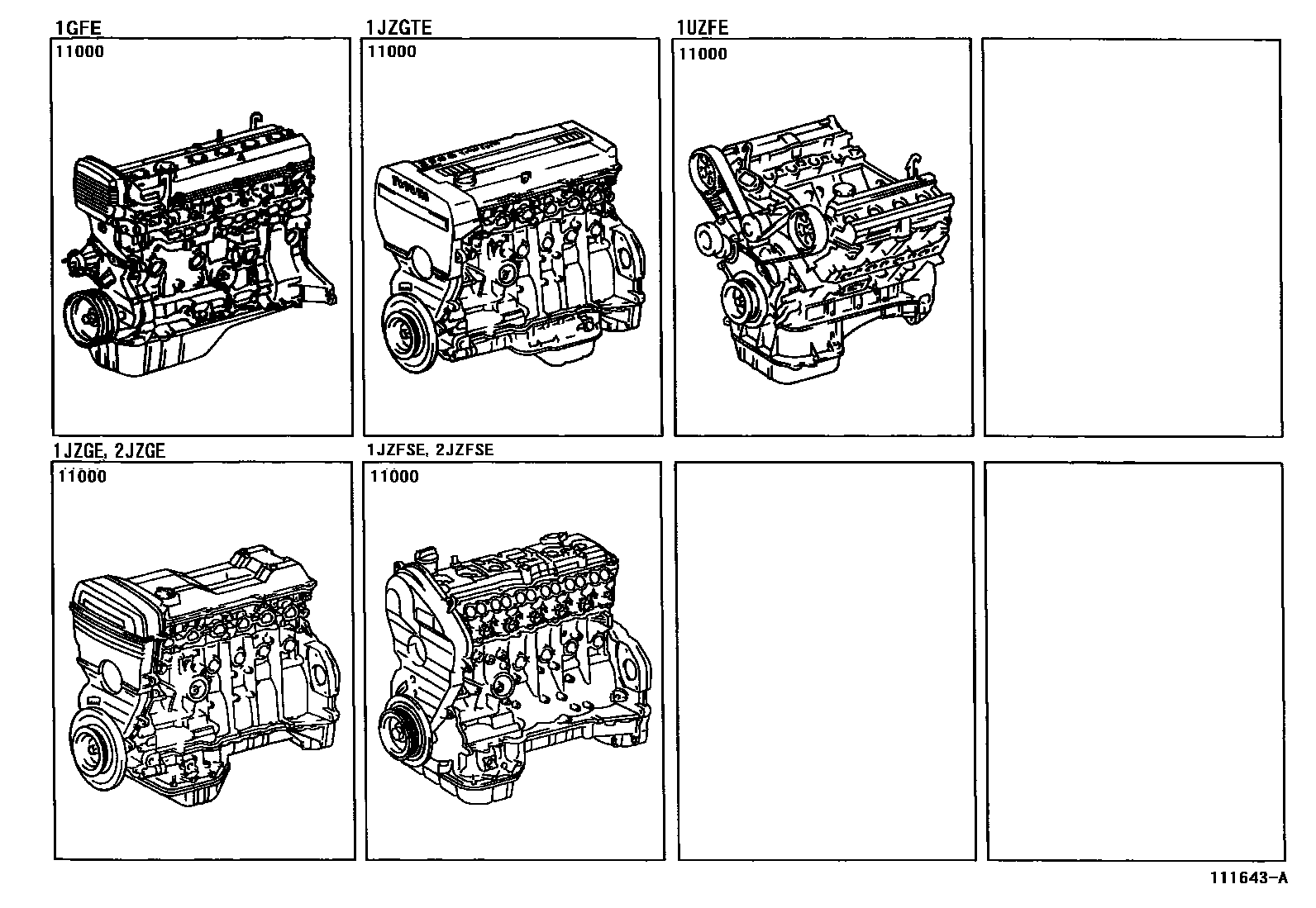

Parts diagram

11000ENGINE ASSY, PARTIAL

main19000-46440i199909-200010

main19000-46520i200108

main19000-46530i200010-200108

main19000-46531i200108

main19000-46540i199909-200108

main19000-46570i200108-200312

main19000-46580i199909-200008

main19000-46610i199909-200108

main19000-46660i200108-200312

main19000-46670i200108

main19000-50470i199909-200008

main19000-50471i200008-200108

main19000-50480i199909-200008

main19000-50481i200008-200108

main19000-50800i200402-200406

main19000-50810i200402-200406

main19000-70330i200004-200108

main19000-88408i199909-200108

main19000-88409i200210-200312

1 parts on this diagram · 1 diagram in section

PARTIAL ENGINE ASSEMBLY for Toyota CROWN/CROWN MAJESTA

This section contains 1 genuine Toyota parts for the PARTIAL ENGINE ASSEMBLY system of the Toyota CROWN/CROWN MAJESTA. Key components include: ENGINE ASSY, PARTIAL.
