Toyota CROWN/CROWN MAJESTA — PARTIAL ENGINE ASSEMBLY

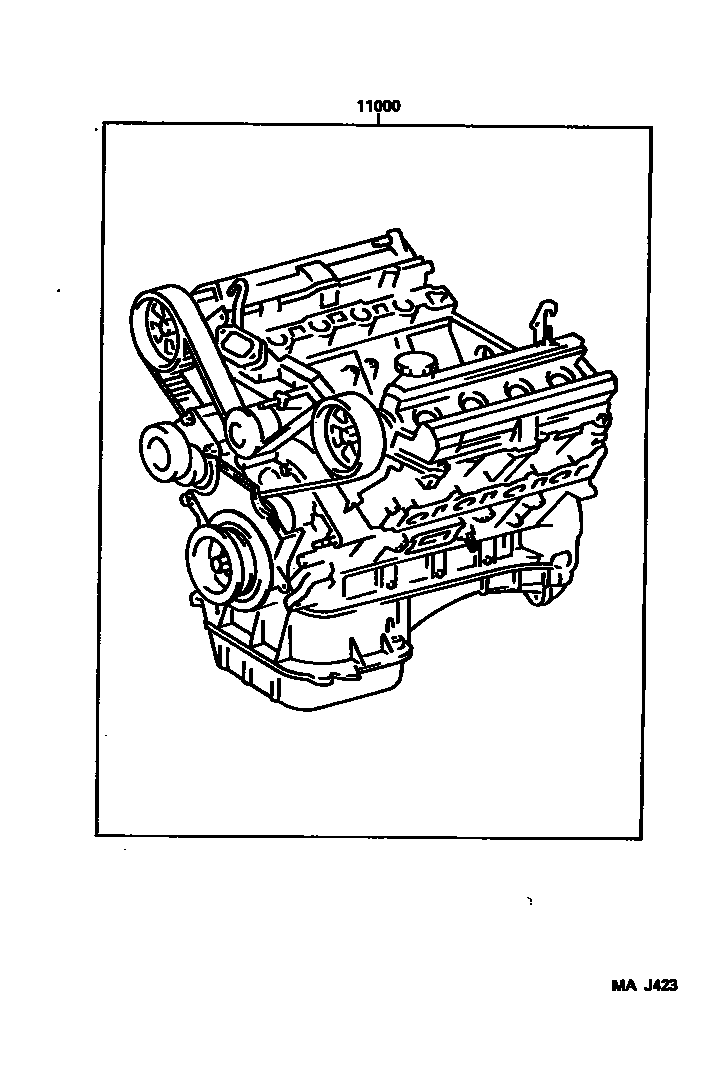

Parts diagram

11000ENGINE ASSY, PARTIAL

main19000-46022i199508-199604

main19000-46024i199604-199609

main19000-46170i199512-199604

main19000-46171i199604-199605

main19000-46172i199605-199609

main19000-46180i199508-199604

main19000-46181i199604-199707

main19000-46182i199707-199906

main19000-46183i199906

main19000-46220i199609-199707

main19000-46221i199707-199808

main19000-46222i199808-200007

main19000-46230i199609-199707

main19000-46231i199707-199808

main19000-46232i199808-200007

main19000-46430i199711-199808

2JZGE *(W)

main19000-46540i200007

main19000-46550i200007

main19000-50300i199508-199707

main19000-50310i199511-199707

main19000-50320i199707-199909

main19000-50330i199707-199909

main19000-5B250i199508-199909

main19000-70270i199508-199707

main19000-70280i199512-199805

main19000-70281i199805-199810

main19000-70300i199707-199805

main19000-70301i199805-199808

main19000-70310i199808

main19000-70360i199810-200102

1 parts on this diagram · 1 diagram in section

PARTIAL ENGINE ASSEMBLY for Toyota CROWN/CROWN MAJESTA

This section contains 1 genuine Toyota parts for the PARTIAL ENGINE ASSEMBLY system of the Toyota CROWN/CROWN MAJESTA. Key components include: ENGINE ASSY, PARTIAL.
