Toyota CROWN/CROWN MAJESTA — MUDGUARD & SPOILER

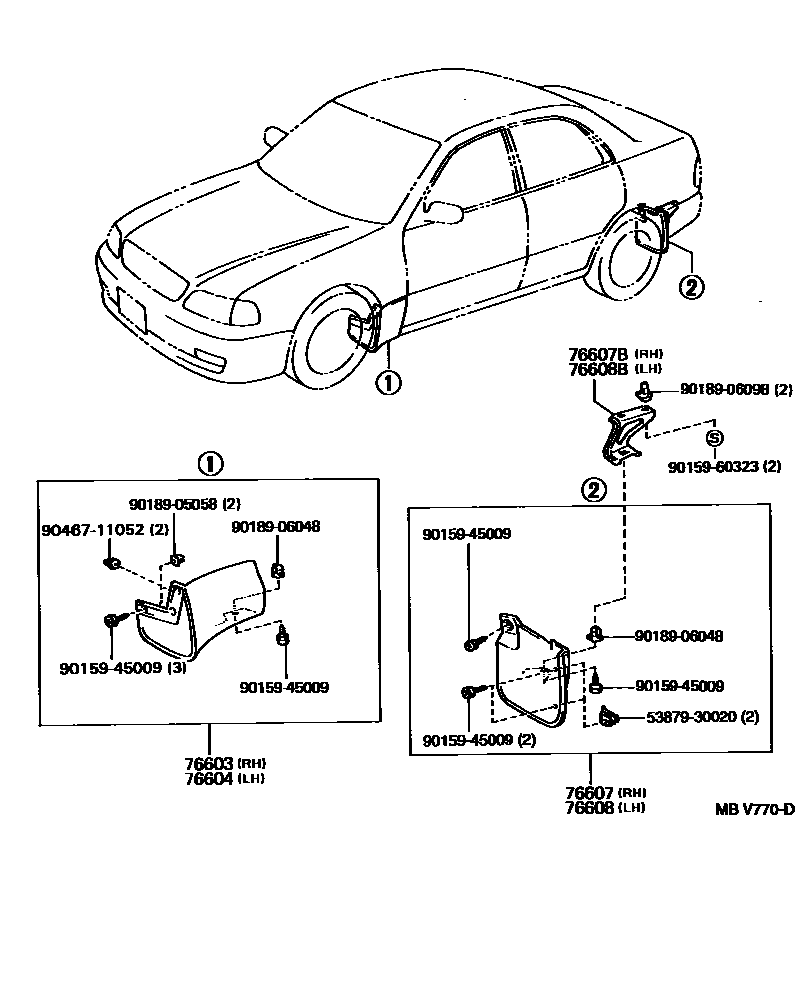

Parts diagram

76603MUDGUARD SUB-ASSY, FRONT FENDER, RH

main76621-39255i199110-199508

76604MUDGUARD SUB-ASSY, FRONT FENDER, LH

main76622-39255i199110-199508

76607MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH

main76625-39335i199110-199301

main76625-39336i199301-199508

76607BBRACKET, QUARTER PANEL REAR MUDGUARD, RH

main76645-30020i199110-199508

76608MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH

main76626-39335i199110-199301

main76626-39336i199301-199508

76608BBRACKET, QUARTER PANEL REAR MUDGUARD, LH

main76646-30010i199110-199508

5387930020LINER, FRONT FENDER, LH

main53879-30020

9015945009

main90159-45009

9015960323

main90159-60323

9018905058

main90189-05058

9018906048

main90189-06048

9018906098

main90189-06098

9046711052

main90467-11052

13 parts on this diagram · 1 diagram in section

MUDGUARD & SPOILER for Toyota CROWN/CROWN MAJESTA

This section contains 13 genuine Toyota parts for the MUDGUARD & SPOILER system of the Toyota CROWN/CROWN MAJESTA. Key components include: MUDGUARD SUB-ASSY, FRONT FENDER, RH, MUDGUARD SUB-ASSY, FRONT FENDER, LH, MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH, BRACKET, QUARTER PANEL REAR MUDGUARD, RH, MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH.
