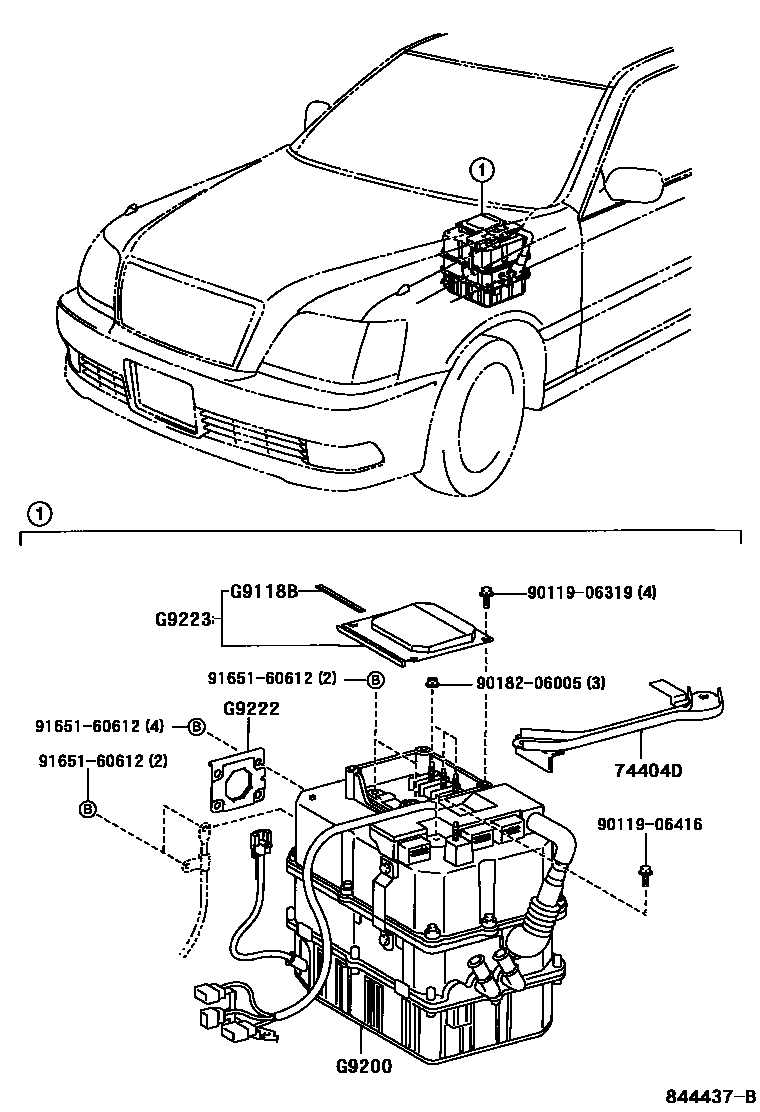

Toyota CROWN/CROWN MAJESTA — HEV INVERTER

74404DCLAMP SUB-ASSY, INVERTER

main74404-30291i200108-200312

G9118BLABEL, POWER CONTROL UNIT CAUTION

mainG911830010i200108-200312

G9200INVERTER ASSY, W/CONVERTER

mainG920030020i200108-200312

G9222COVER, INVERTER TERMINAL, NO.2

mainG922230011i200108-200312

G9223COVER, INVERTER TERMINAL

mainG922330012i200108-200312

9011906319

main90119-06319

9011906416

main90119-06416

9018206005

main90182-06005

9165160612

main91651-60612

9 parts on this diagram · 1 diagram in section

HEV INVERTER for Toyota CROWN/CROWN MAJESTA

This section contains 9 genuine Toyota parts for the HEV INVERTER system of the Toyota CROWN/CROWN MAJESTA. Key components include: CLAMP SUB-ASSY, INVERTER, LABEL, POWER CONTROL UNIT CAUTION, INVERTER ASSY, W/CONVERTER, COVER, INVERTER TERMINAL, NO.2, COVER, INVERTER TERMINAL.
