Toyota CROWN/CROWN MAJESTA — ELECTRONIC MODULATED SUSPENSION

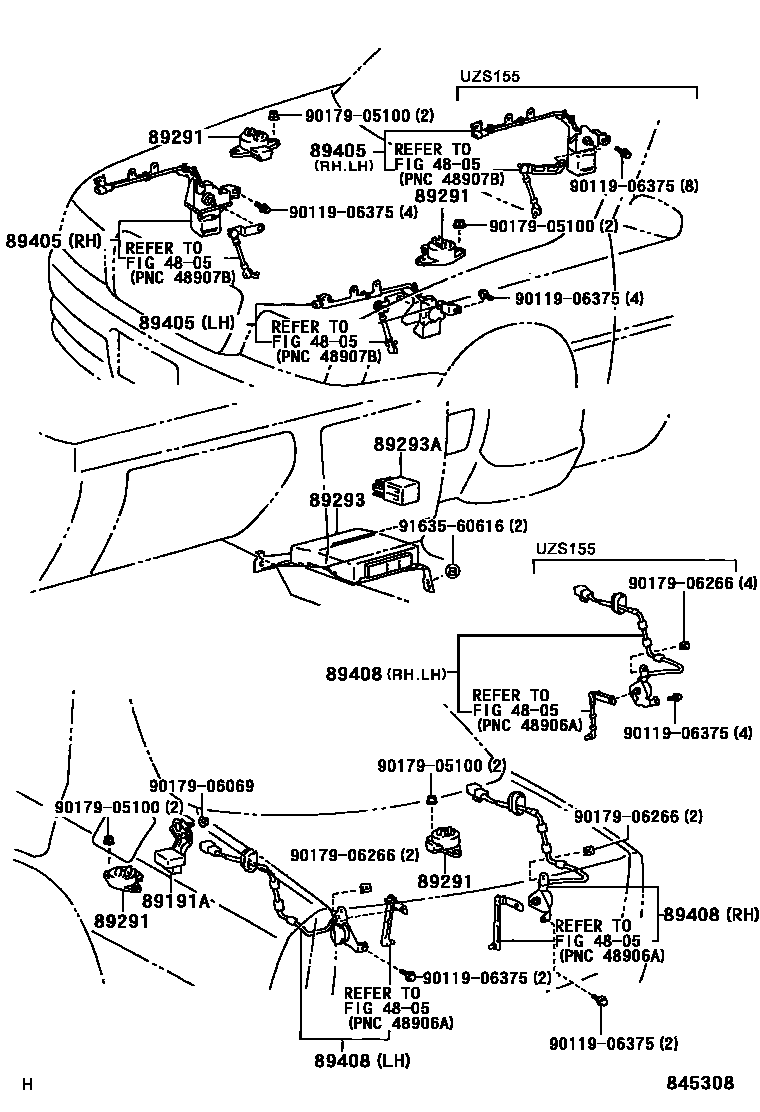

Parts diagram

4805HEIGHT CONTROL (AUTO-LEVELER)

→ Go to FIG 48-05

89191ASENSOR, ACCELERATION

main89191-30010i199508

89291ACTUATOR, SUSPENSION CONTROL, FRONT

main89291-50050×4i199508

89293COMPUTER, SUSPENSION CONTROL

main89293-30130i199508-199511

main89293-30131i199511-199610

main89293-30132i199610-199707

main89293-30140i199508-199511

main89293-30141i199511-199610

main89293-30142i199610-199707

main89293-30150i199707

main89293-30160i199707

89293ARELAY, SUSPENSION CONTROL

main90987-02006i199508

89405SENSOR SUB-ASSY, HEIGHT CONTROL, FRONT

main89405-30060i199508-199707

main89405-30070i199511-199909

main89405-30080i199707-199909

main89406-30060i199508-199707

main89406-30070i199511-199909

main89406-30110i199707-199909

89408SENSOR SUB-ASSY, HEIGHT CONTROL, REAR

main89407-30030i199508-199609

main89407-30031i199609-199707

main89407-30040i199511-199909

main89407-30050i199707-199909

main89408-30060i199508-199609

main89408-30061i199609-199707

main89408-30070i199511-199909

main89408-30100i199707-199909

9011906375

main90119-06375

9017905100

main90179-05100

9017906069

main90179-06069

9017906266

main90179-06266

9163560616

main91635-60616

12 parts on this diagram · 1 diagram in section

ELECTRONIC MODULATED SUSPENSION for Toyota CROWN/CROWN MAJESTA

This section contains 12 genuine Toyota parts for the ELECTRONIC MODULATED SUSPENSION system of the Toyota CROWN/CROWN MAJESTA. Key components include: HEIGHT CONTROL (AUTO-LEVELER), SENSOR, ACCELERATION, ACTUATOR, SUSPENSION CONTROL, FRONT, COMPUTER, SUSPENSION CONTROL, RELAY, SUSPENSION CONTROL.
