Toyota CROWN/CROWN MAJESTA — ANTENNA

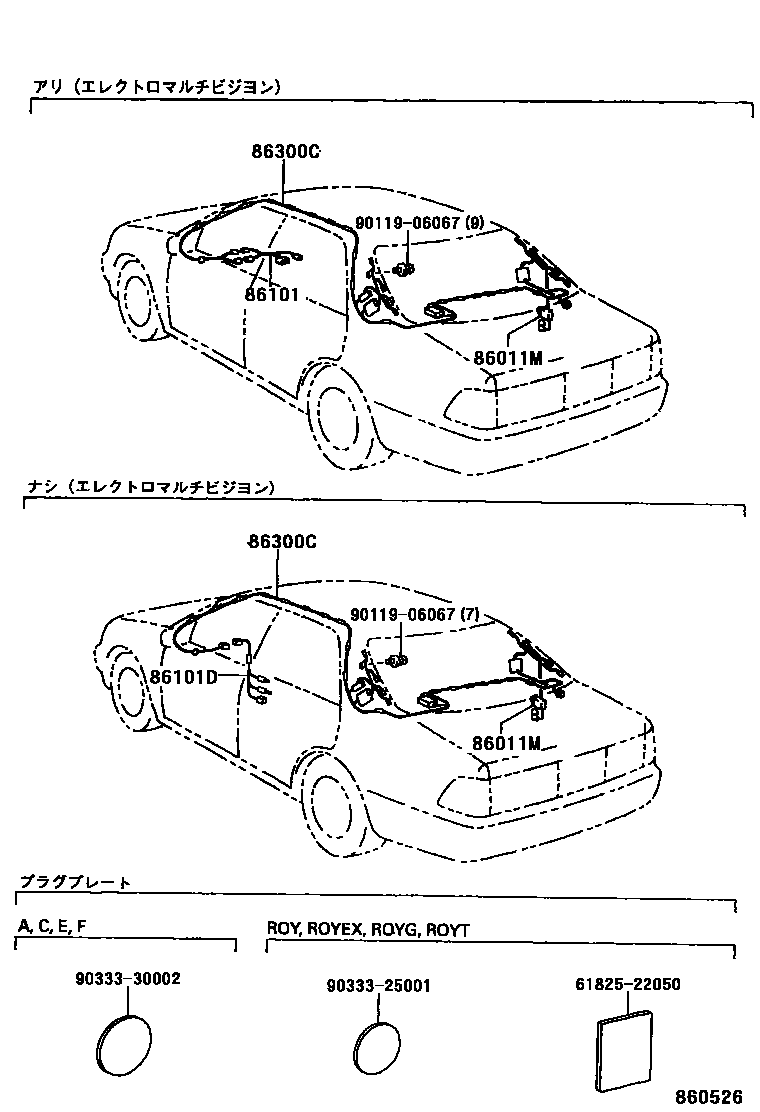

Parts diagram

86011MFILTER, NOISE

main90980-05214i199508-199909

main90980-05216i199508-199909

main90980-05260i199512

86101CORD SUB-ASSY, ANTENNA

main86101-30560i199508-199707

86101DCORD SUB-ASSY, ANTENNA, NO.3

main86101-30520i199508-200108

main86101-30610i199512-199909

86300CANTENNA ASSY, AMPLIFIER, NO.2

main86300-30540i199508-199909

main86300-30600i199508-199909

main86300-30640i199512-199909

main86300-30670i199508-199707

main86300-30700i199508-199909

main86300-30760i199508-199707

main86300-30890i199508-199707

main86300-3A060i199512-199707

main86300-3A110i199707-199909

main86300-3A120i199707-199909

main86300-3A130i199707-199909

main86300-3A140i199707-199909

main86300-3A160i199707-199909

main86300-3A170i199707-199909

main86300-3A250i199909-200108

main86300-3A260i199909-200108

6182522050PLATE, QUARTER INNER PANEL, LOWER FRONT RH

main61825-22050

9011906067

main90119-06067

9033325001

main90333-25001

9033330002

main90333-30002

8 parts on this diagram · 1 diagram in section

ANTENNA for Toyota CROWN/CROWN MAJESTA

This section contains 8 genuine Toyota parts for the ANTENNA system of the Toyota CROWN/CROWN MAJESTA. Key components include: FILTER, NOISE, CORD SUB-ASSY, ANTENNA, CORD SUB-ASSY, ANTENNA, NO.3, ANTENNA ASSY, AMPLIFIER, NO.2, PLATE, QUARTER INNER PANEL, LOWER FRONT RH.
