Toyota CROWN/CROWN MAJESTA — ANTENNA

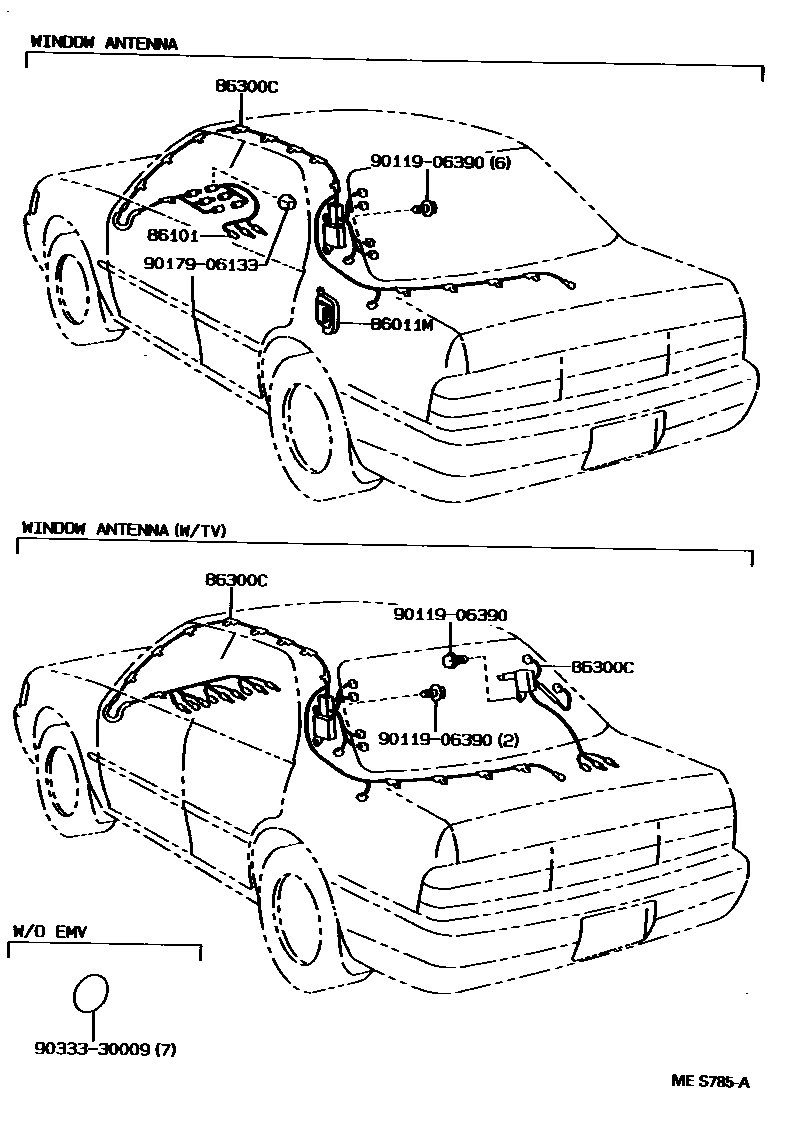

Parts diagram

86011MFILTER, NOISE

main90980-05231i199110-199508

86101CORD SUB-ASSY, ANTENNA

main86101-30380i199110-199308

main86101-30400i199110-199508

main86101-30500i199308-199309

main86101-30501i199309-199508

86300CANTENNA ASSY, AMPLIFIER, NO.2

main86300-30530i199110-199308

main86300-30560i199110-199308

main86300-30570i199110-199308

main86300-30590i199308-199508

main86300-30620i199308-199508

main86300-30630i199502-199508

main86300-30810i199110-199210

main86300-30860i199308-199508

main86300-30870i199308-199508

main86300-30880i199308-199508

main86300-3A040i199308-199508

9011906390

main90119-06390

9017906133

main90179-06133

9033330009

main90333-30009

6 parts on this diagram · 1 diagram in section

ANTENNA for Toyota CROWN/CROWN MAJESTA

This section contains 6 genuine Toyota parts for the ANTENNA system of the Toyota CROWN/CROWN MAJESTA. Key components include: FILTER, NOISE, CORD SUB-ASSY, ANTENNA, ANTENNA ASSY, AMPLIFIER, NO.2.
