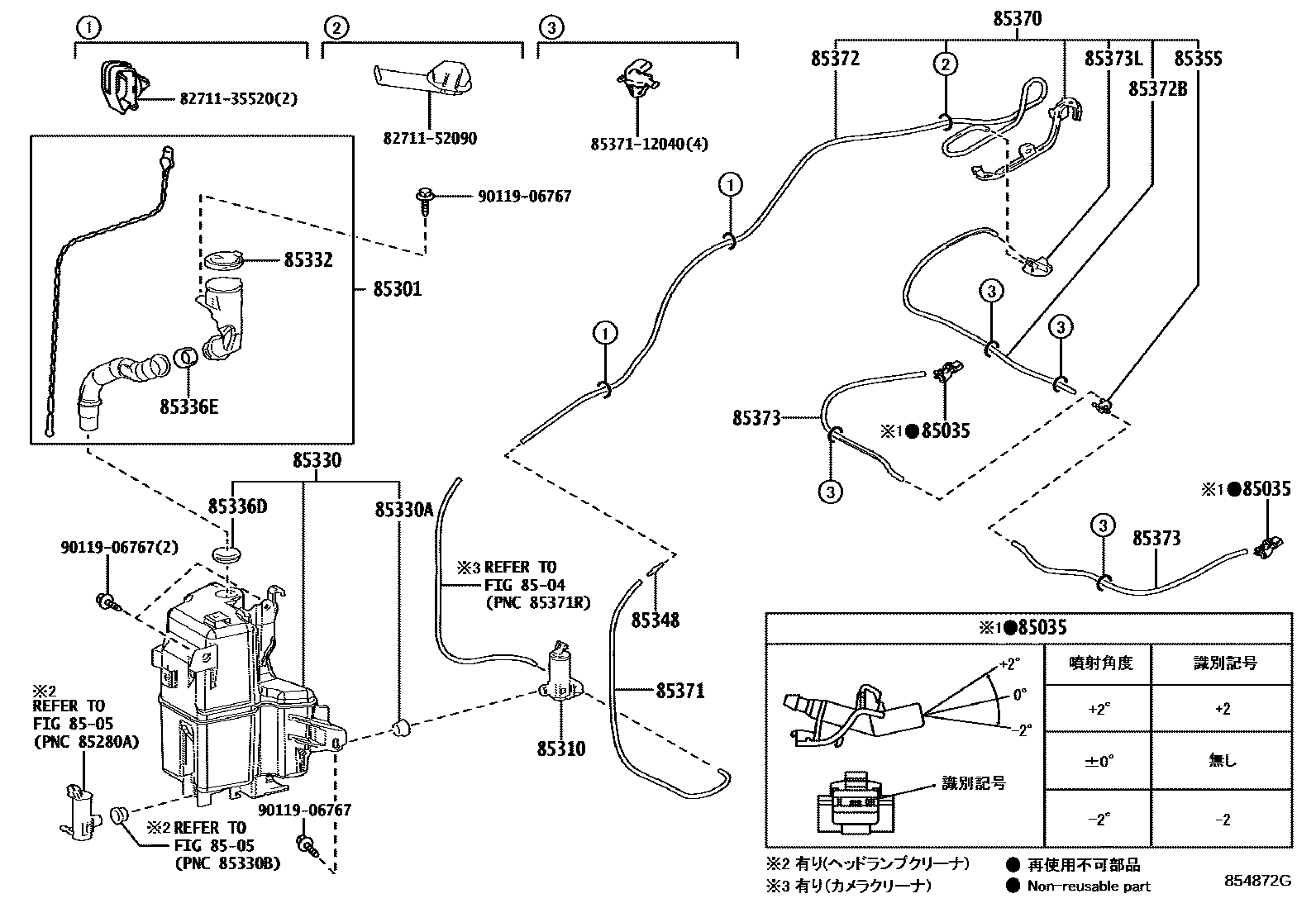

Toyota CROWN CROSSOVER — WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85381-47090iAZSH35,TZSH35202209-202301

main85381-47100iAZSH35,TZSH35202209-202301

main85381-47110iAZSH35,TZSH35202209-202301

main85381-78030iAZSH35,TZSH35202302

main85381-78040iAZSH35,TZSH35202302

main85381-78050iAZSH35,TZSH35202302

8504REAR WASHER

→ Go to FIG 85-04

8505HEADLAMP CLEANER

→ Go to FIG 85-05

85301INLET SUB-ASSY, WASHER

main85301-30100iTZSH35202209

main85301-30120iAZSH35202209-202404

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-11040iAZSH35..X202404

main85330-11040iAZSH35..Z202209

main85330-33070iAZSH35,TZSH35..G,RS202209-202404

85330JAR ASSY, WINDSHIELD WASHER

main85315-30530iAZSH35..G,X202209-202404

main85355-30130iTZSH35202209

main85355-30130iAZSH35..Z202404

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089iAZSH35,TZSH35202209

85332CAP, WINDSHIELD WASHER JAR

main85316-24130iAZSH35,TZSH35202209

85336DPACKING, WINDSHIELD WASHER JAR

main85336-30160iAZSH35,TZSH35202209

85336EPACKING, WINDSHIELD WASHER INLET HOSE

main85336-42320iAZSH35,TZSH35202209

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85349-89122iAZSH35,TZSH35202209

85355VALVE, WINDSHIELD WASHER HOSE

main85321-28020iAZSH35,TZSH35202209

85370HOSE ASSY, WINDSHIELD WASHER

main85370-30470iAZSH35,TZSH35202209

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90099-33080iAZSH35,TZSH35202209

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33803iAZSH35,TZSH35202209

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90099-33080iAZSH35,TZSH35202209

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33080iAZSH35,TZSH35202209

85373LGROMMET, WASHER

main85373-33030iAZSH35,TZSH35202209

8271135520WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-35520

8271152090WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-52090

8537112040HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85371-12040

9011906767

main90119-06767

22 parts on this diagram · 1 diagram in section
