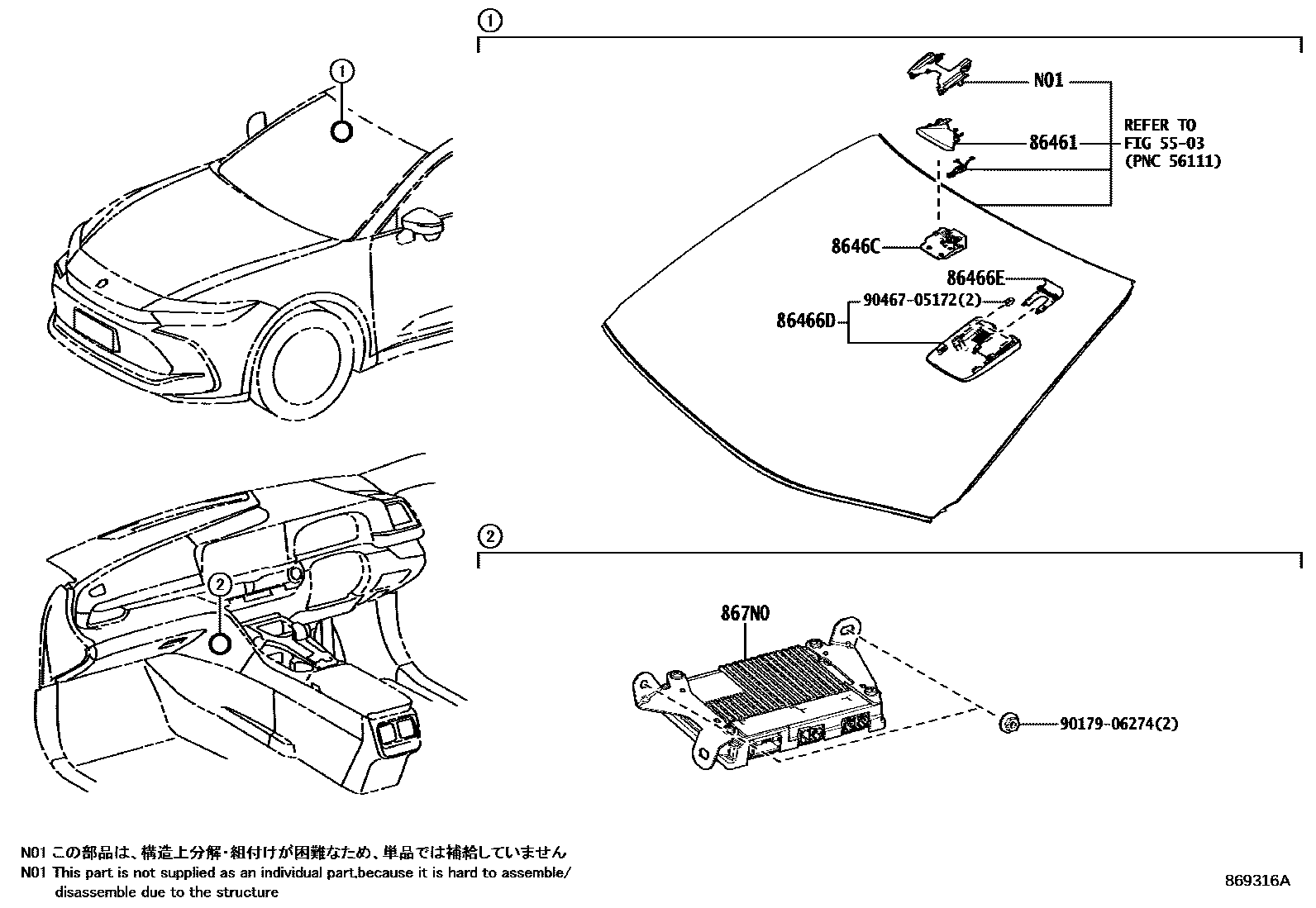

Toyota CROWN CROSSOVER — PRE-COLLISION SYSTEM

5503

86461HOOD, FORWARD RECOGNITION

main86461-30010iAZSH35,TZSH35202209

86466DCOVER, FORWARD RECOGNITION, NO.1

main86466-30010iAZSH35,TZSH35202209

86466ECOVER, FORWARD RECOGNITION, NO.2

main86467-30020iAZSH35..X202209

main86467-30030supersedes 86467-30020iAZSH35,TZSH35..G,RS,Z202404

8646CCAMERA, FORWARD RECOGNITION

main8646C-30090iAZSH35,TZSH35..G,RS,X202209-202404

main8646C-30100iAZSH35..G202209-202404

main8646C-30450iAZSH35..X202404-202504

main8646C-30460iAZSH35,TZSH35..G,RS,Z202404-202504

867N0COMPUTER ASSY, DRIVE RECORDER

main867N0-30021supersedes 867N0-30011iAZSH35,TZSH35..G,RS,Z202404

main867N0-30020supersedes 867N0-30010iAZSH35..Z202209-202212

9017906274

main90179-06274

9046705172

main90467-05172

8 parts on this diagram · 1 diagram in section
