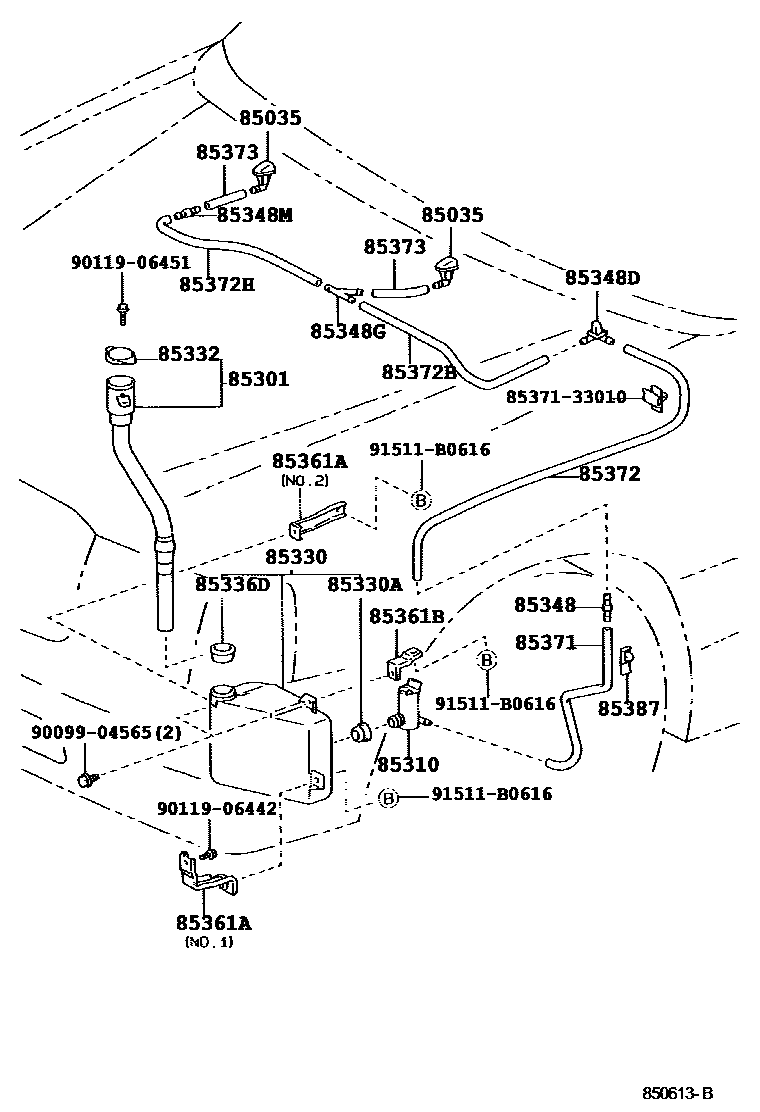

Toyota CROWN COMFORT — WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85381-44010×2i200709

main85385-43010×2i199601-200108

85301INLET SUB-ASSY, WASHER

main85301-43010i200108-200607

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85310-20210i200108-200607

main85330-10280i199601-200108

main85330-21010i200808

85330JAR ASSY, WINDSHIELD WASHER

main85315-43010i200108-200607

main85315-43030i199908-200108

main85315-43050i200808

85330ABUSH, WINDSHIELD WASHER JAR

main85336-60300i200808

main90099-32089i199601-200108

85332CAP, WINDSHIELD WASHER JAR

main85316-12290i199908-200108

main85316-16070i199601-200108

85336DPACKING, WINDSHIELD WASHER JAR

main85336-30160i199601-200108

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85349-89122i200108-200405

main85375-10260i200808

85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1

main85355-14481i200808

main85377-32220i200108-200312

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85348-12250i200108-200405

main85349-89122i200709

85348MJOINT, WINDSHIELD WASHER HOSE, NO.3

main85349-89122i199601-200108

85361ABRACKET, WINDSHIELD WASHER, NO.1

main85361-43010i199601-200108

NO.1

main85362-22480i200108-200607

NO.2

85361BBRACKET, WINDSHIELD WASHER, NO.2

main85337-43010i199601-200108

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90099-33080i200808

L=1450(*H,L=190)

main90099-33299i199908-200108

L=1000(*H,L=160)

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90446-07001i200108-200405

L=1800(*H,L=1560)

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90446-07001i199601-200108

L=1800(*H,L=460)

85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3

main90446-07001i199601-200108

L=1800(*H,L=370)

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33299×2i199601-200108

L=1000(*H,L=90)

85387CLAMP NO.1 (FOR WINDSEIELD WASHER)

main85387-32240i199601-200108

8537133010HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85371-33010

9009904565

main90099-04565

9011906442

main90119-06442

9011906451

main90119-06451

91511B0616

main91511-B0616

24 parts on this diagram · 4 diagrams in section

WINDSHIELD WASHER for Toyota CROWN COMFORT

This section contains 28 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota CROWN COMFORT. Key components include: NOZZLE SUB-ASSY, WASHER, INLET SUB-ASSY, WASHER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER, JAR ASSY, WINDSHIELD WASHER, BUSH, WINDSHIELD WASHER JAR.
