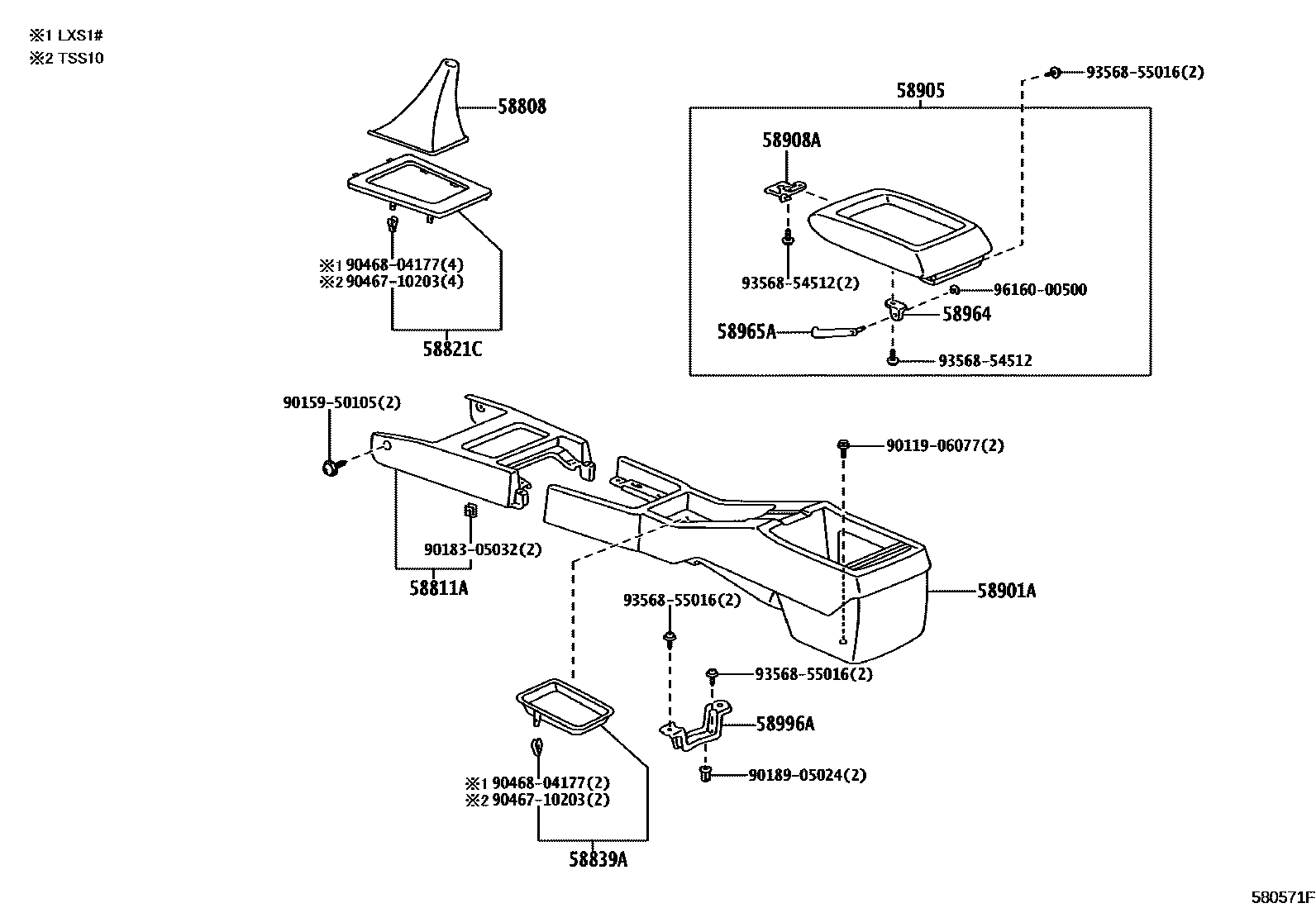

Toyota CROWN COMFORT — CONSOLE BOX & BRACKET

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-43010-B0i199601-200108

SHADOW GRAY,TRIM1#

main58808-43010-B1i200108-200607

DK.GRAY,TRIM1#

58811ABOX, CONSOLE, FRONT

main58811-43010-B0i199601-200108

SHADOW GRAY,TRIM1#

main58811-43010-B1i200108-200607

DK.GRAY,TRIM1#

main58811-43020-B0i199701-199801

W(*80),SHADOW GRAY,TRIM1#

main58811-43020-B1i200808

DK.GRAY,TRIM1#

58821CPANEL, CONSOLE, UPPER

main58821-43010-B0i199601-200108

SHADOW GRAY,TRIM1#

main58821-43010-B1i200108-200607

DK.GRAY,TRIM1#

main58821-43020-B1i200808

DK.GRAY,TRIM1#

58839ACOVER, CONSOLE BOX HOLE

main58839-43010-B0i199601-200108

SHADOW GRAY,TRIM1#

main58839-43010-B1i200108-200607

DK.GRAY,TRIM1#

58901ABOX SUB-ASSY, CONSOLE, REAR

main58901-43010-B0i199601-200108

SHADOW GRAY,TRIM1#

main58901-43010-B1i200108-200607

DK.GRAY,TRIM1#

58905DOOR SUB-ASSY, CONSOLE COMPARTMENT

main58905-43010-B0i199601-199701

SHADOW GRAY,TRIM1#

main58905-43020-B0i199701-200108

SHADOW GRAY,TRIM1#

main58905-43020-B2i200808

DK.GRAY,TRIM1#

58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58908-12080i201103

main58908-32020i199601-200108

58964STOPPER, CONSOLE COMPARTMENT DOOR, NO.1

main58965-12010i200108-200607

58965ASTOPPER, CONSOLE COMPARTMENT DOOR, NO.2

main58965-22020i199601-200108

58996ABRACKET, CONSOLE BOX MOUNTING, NO.2

main58996-22030i199601-200108

9011906077

main90119-06077

9015950105

main90159-50105

9018305032

main90183-05032

9018905024

main90189-05024

9046710203

main90467-10203

9046804177

main90468-04177

9356854512

main93568-54512

9356855016

main93568-55016

9616000500

main96160-00500

19 parts on this diagram · 1 diagram in section

CONSOLE BOX & BRACKET for Toyota CROWN COMFORT

This section contains 19 genuine Toyota parts for the CONSOLE BOX & BRACKET system of the Toyota CROWN COMFORT. Key components include: COVER SUB-ASSY, SHIFTING HOLE, BOX, CONSOLE, FRONT, PANEL, CONSOLE, UPPER, COVER, CONSOLE BOX HOLE, BOX SUB-ASSY, CONSOLE, REAR.
