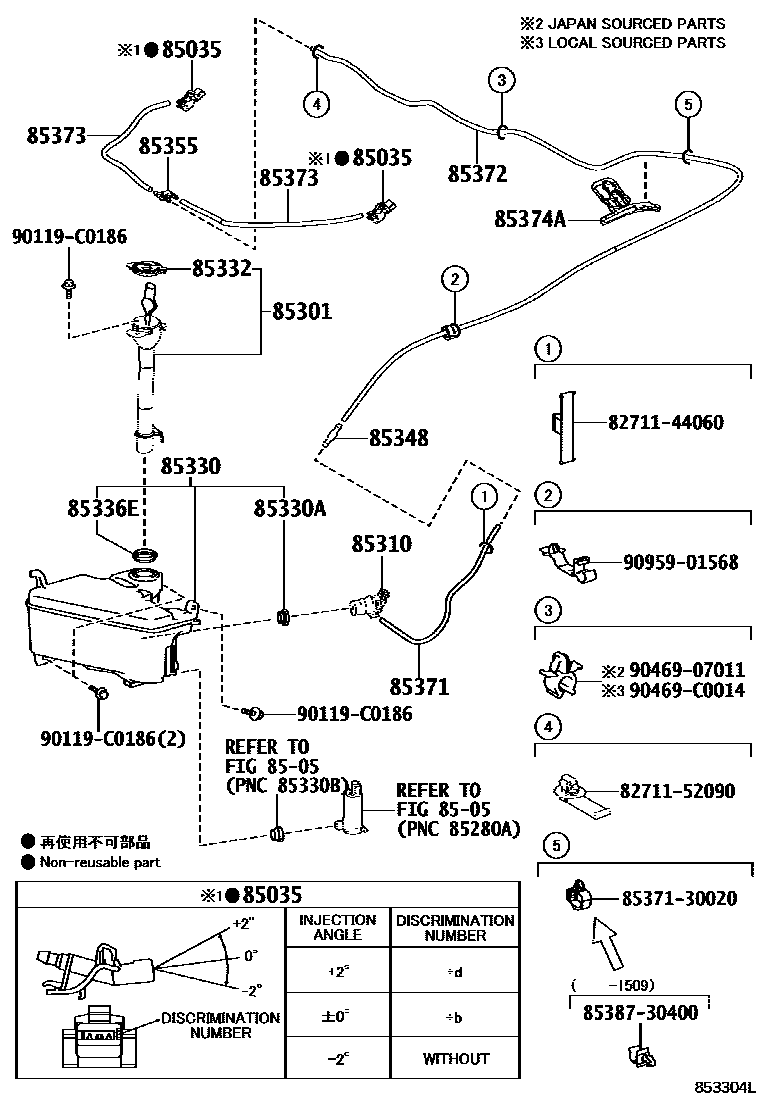

Toyota CROWN (CHINA) — WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85381-30220×2i201501-201712

ANGLE 0

main85381-30230×2i201501-201712

ANGLE -2

main85381-30240×2i201501-201712

ANGLE +2

8505HEADLAMP CLEANER

→ Go to FIG 85-05

85301INLET SUB-ASSY, WASHER

main85319-0N020i201712

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-21010i201501-201712

85330JAR ASSY, WINDSHIELD WASHER

main85315-0N020i201501-201712

85330ABUSH, WINDSHIELD WASHER JAR

main85336-60300i201501-201712

85332CAP, WINDSHIELD WASHER JAR

main85316-0N020i201712

85336EPACKING, WINDSHIELD WASHER INLET HOSE

main85336-30160i201712

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85349-89122i201501-201712

85355VALVE, WINDSHIELD WASHER HOSE

main85321-28020i201501-201712

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90068-33249i201712

L=440

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90068-33283i201503-201712

L=1890

main90446-07001i201501-201503

L=1890

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-62076×2i201501-201712

L=360

85374APROTECTOR, WASHER HOSE

main85372-0N010i201501-201712

8271144060WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-44060

8271152090WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-52090

8537130020HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85371-30020

8538730400CLAMP NO.1 (FOR WINDSEIELD WASHER)

main85387-30400

90119C0186

main90119-C0186

9046907011

main90469-07011

90469C0014

main90469-C0014

9095901568

main90959-01568

22 parts on this diagram · 1 diagram in section

WINDSHIELD WASHER for Toyota CROWN (CHINA)

This section contains 22 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota CROWN (CHINA). Key components include: NOZZLE SUB-ASSY, WASHER, HEADLAMP CLEANER, INLET SUB-ASSY, WASHER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER, JAR ASSY, WINDSHIELD WASHER.
